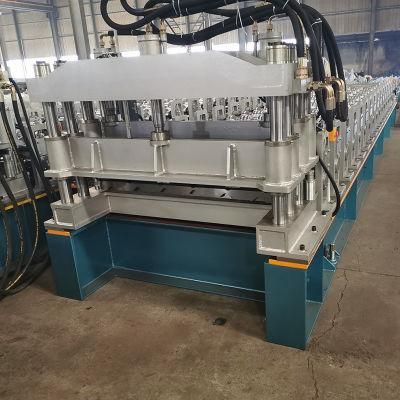

High Quality Aluminum Coils Step Tile Roofing Sheets Roll Forming Machine with CE Certificate
Hangzhou Zhongyuan Machinery Factory- After-sales Service：Provide
- Warranty：1 Year
- Rolling Shape：Step Tile Making Machine
- Product：Steel Roof Tile Roll Forming Machine
- Roller Position：Horizontal
- Roller Number：15 Stations
Base Info
- Model NO.：tile forming machine
- Layout：Continuous
- Type：Cold Rolling Mill
- Main Power：5.5kw
- Diameter of Shaft for Rollers：72mm
- Voltage：380V,50Hz,3phase
- Roller Grinder Milling：Cr12MOV. with Quenched Treatment
- Control System：Mitsubishi PLC and Transducer (Japan)
- Coil Width：1200mm
- Suitable Coil Thickness：0.4 mm - 0.5 mm
- Suitable Raw Materials：Aluminum Coils
- Yield Strength of Raw Material：235MPa or 34ksi
- Working Speed：About 5-6m,Min
- Transport Package：40gp
- Specification：CE SGS BV
- Trademark：Zhongyuan
- Origin：Hangzhou
- HS Code：84552210
- Production Capacity：10sets,Month
Description
Overview
Packaging & Shipping

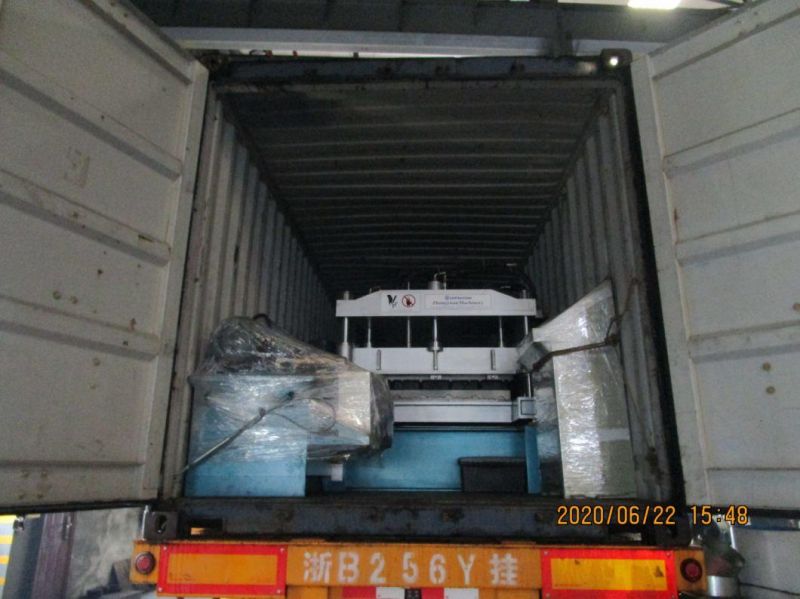

1.1*40GP container for loading one set machine with decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.
Delivery : about 120 days
Abouts company
Product Parameters
Packaging & Shipping
1.1*40GP container for loading one set machine with decoiler.2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.
Delivery : about 120 days
