• Model NO.：S628
• Certification：CE, RoHS, GS, ISO9001
• Type：Sand Casting
• Transport Package：Custom
• Trademark：DL
• Origin：Qingdao, China
• HS Code：8474802000
• Production Capacity：800

Basic Info.

Model NO. S628 Certification CE, RoHS, GS, ISO9001 Type Sand Casting Transport Package Custom Trademark DL Origin Qingdao, China HS Code 8474802000 Production Capacity 800

Product Description

Qingdao Dingli machinery Co., Ltd. is located in the beautiful seaside - Qingdao Pingdu, the company set scientific research, manufacturing, installation and commissioning, after-sales service in one. Mainly produces resin sand production line, clay sand production line, coated sand production line equipment, all kinds of sand processing single equipment. The company has advanced casting machinery manufacturing and development technology, the production of products can fully meet the international and domestic market demand. The company has excellent design and development team, skilled construction team, domestic leading casting equipment design concept, perfect after-sales service system, willing to cooperate with the majority of casting enterprises, create a better tomorrow.

In line with the "down-to-earth, integrity-based, pay attention to service, continuous innovation" business philosophy, through continuous efforts. With our own efforts and focus on the development of a series of perfect processing equipment, to meet the different needs of the majority of users.
USES:

This device is mainly used for drying of new sand and dry mortar, and also for drying of dihydrate gypsum.

Features:

- The main fuel is crushed coke or cold gas.

- Compact structure, reliable operation, high efficiency, low energy consumption, good drying effect.

- Combustion furnace is divided into coal gas and broken coke, natural gas form: the fuel is added and divided into positive, left, right three, but the air is always with the direction of fuel is 90ºC Angle, greatly facilitate the choice of users.

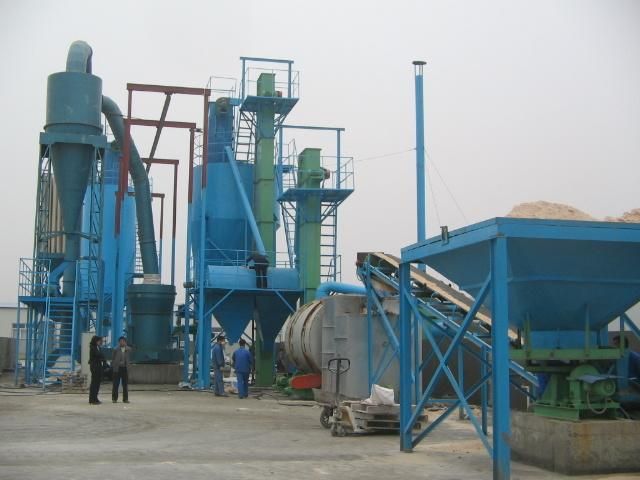

- The device consists of tipping bucket feeder (or vibrating feeder, bucket elevator), main drive drum, combustion furnace, vibrating screen with dust extraction system to form a simple sand drying unit, less investment, quick effect, very obvious economic benefits.

/Parameter/Model	S628
(m3/h)Productivity (m3 / h)	8-10
(kg/h)Combustion of coke (kg/h)	75-80
(%)Sand moisture for export (%)	<0.5
(ºC)Outlet sand temperature (ºC)	60
Main motor model	Y132S-4
(kw)Main motor Power (KW)	5.5
(r/min)Rotation of drum (r/min)	9
Wet dust collector	F3719
Suction fan	4-72-11No4.5A7.5kw
Disc feeder	Y4415
Sand screen	S456B
(kg) Machine weight (kg)	18000
