• Model NO.：SL series
• Certification：ISO9001
• Type：Sand Casting
• Transport Package：Container
• Trademark：DL
• Origin：China
• HS Code：4200
• Production Capacity：600

Basic Info.

Model NO. SL series Certification ISO9001 Type Sand Casting Transport Package Container Trademark DL Origin China HS Code 4200 Production Capacity 600

Product Description

Qingdao Dingli Machinery Co., Ltd. is located in the beautiful seaside-Qingdao Pingda. the company set research,manufacturing,installationandcommissioning,after-sales service in one. It mainly produces resin sandproductionline,clay sandproductionline,coated sandproductionUne equipment, various sand treatment single machine equipment,etc. The company has advance casting machinerymanufacturinganddevelopmenttechnology,theproductionof products can full meet theinternationaland domestic market demand.

The company has excellent design and R&D team, skilledconstructionteam, domestic leadwi casting equipment design concept,perfect after-sales service system, is willing to cooperate with the majority of foundryenterprisesto create a better tomorrow.

In line with the"down-to-earth, integrity-based, focus on service,continuousinnovation"businessphilosophy,throughcontinuousefforts. We use our own efforts and focus on thedevelopmentof a series of perfectprocessingequipment to meet the different needs of users.



Characteristic:

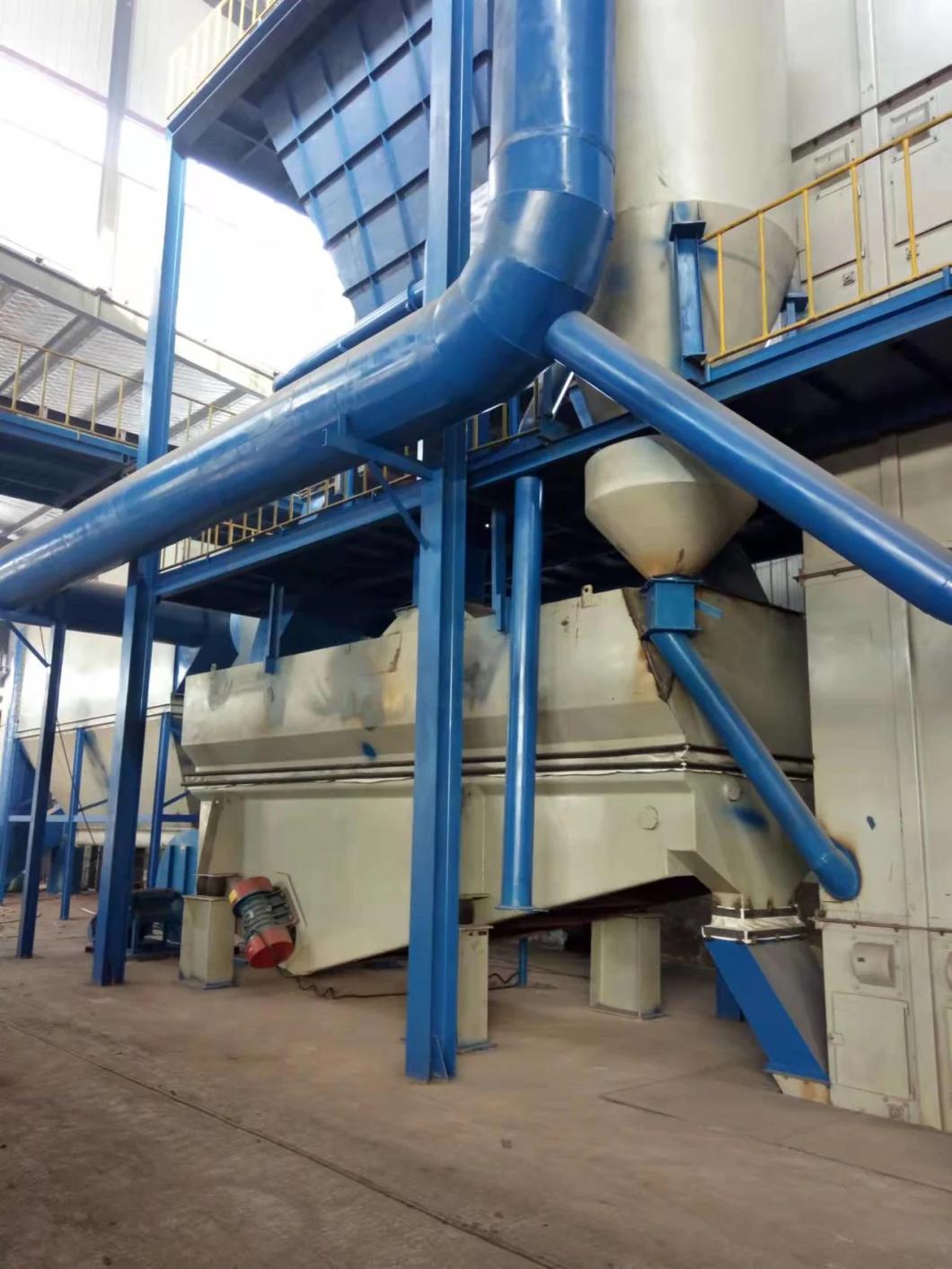

The vibra bolling cooling bed is composed of a porous fish scale bed body, an all blowing system, an exhaust systems and ahumidifyingagitator.

The hot used sand falls into the orifice plate of the vibration bolling cooling bed and sprays water through the humidifer while moving along the vibration direction. The airblastsystemblows cold ar from the bottom of the fish scale plate to make the hot sand bobil. The air and the hot sand are in fullcontactandtake away the water and air from the hotsend. The holsand isdischargedby the exhaust system to achieve the purpose of cooling.



Main technicalparameters


Parameters Name	SL20	SL40	SL60	SL80	SL100	SL120
(t/h) Handling ability(t/h)	20~30	30~40	50-70	80~100	100~120	100~120
(kw) Vibration motor power(kw)	2×1.5	2×2.2	2×5.5	2×7.5	2×7.5	2×9.5
(kw) Blower power(kw)	5.5	7.5	15	22	30	37
n) Blasting volume(m³/h)	6000	8000	14000	20000	28000	40000
L×cm Bed size Lx width cm	3800×700	4900×1000	6470×1500	6470×1800	8000×2300	8200×2500
