Colo-191s Electrostatic Powder Coating Spray Equipment
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service：12 Moths
- Warranty：12 Months
- Type：Electrostatic Powder Coating Equipment
- Coating：Powder Coating
- Substrate：Steel
- Certification：CE
Base Info
- Model NO.：COLO-191S
- Condition：New
- Voltage：110,220V
- Transport Package：Carton Box
- Trademark：COLO
- Origin：China
- HS Code：8424899990
- Production Capacity：500sets,Month
Description
Basic Info.
Model NO. COLO-191S Condition New Voltage 110/220V Transport Package Carton Box Trademark COLO Origin China HS Code 8424899990 Production Capacity 500sets/MonthProduct Description
Product DescriptionCOLO-191S Electrostatic Powder Coating Spray Equipment
Our powder coating units for manual operation deliver the most advanced technology in the industry.
Digital advanced model with LCD display controller!
Box feed,hopper feed avaiable!

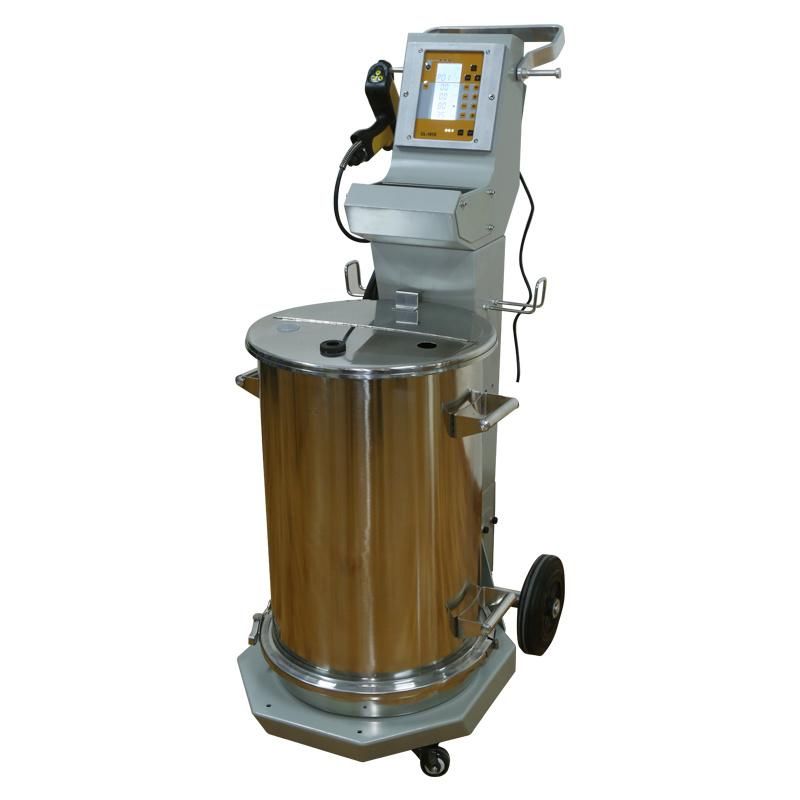

Hopper Feed Type
with 50L drum capacity,hopper feed suitable for less powder color changes

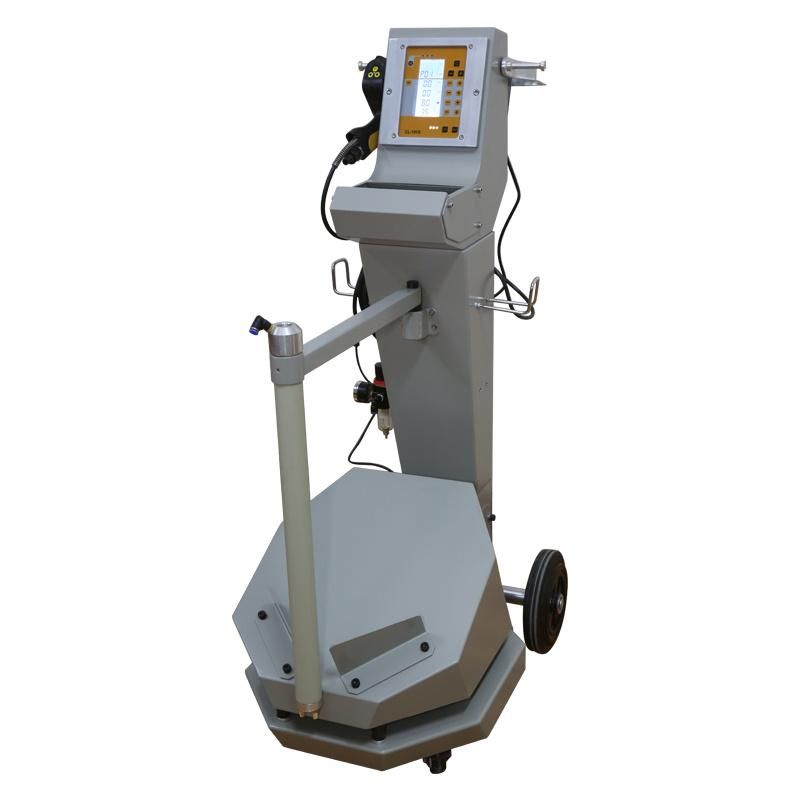

Box Feed type
Used on powder coating production which need frequently and quickly change colors,it's designed use original powder box,minimal color change times,save time.For direct transport from the original powder box,no need use powder hopper,compelet emptying of powder box thanks to the virbrating table.
Specification:
1.Colo-191S can offers3 preset standard application prgrams for flat parts,profiles and recoating .It is easy to operators for beginners.
2.Allows you to creat and store your own application programs,optimized for your parts and power.Each part can be coated always with it's ideal settings for experience operator.
3.Clear and easy to use interface ,makes it easy for every user to take advantage of these powerful technologies.

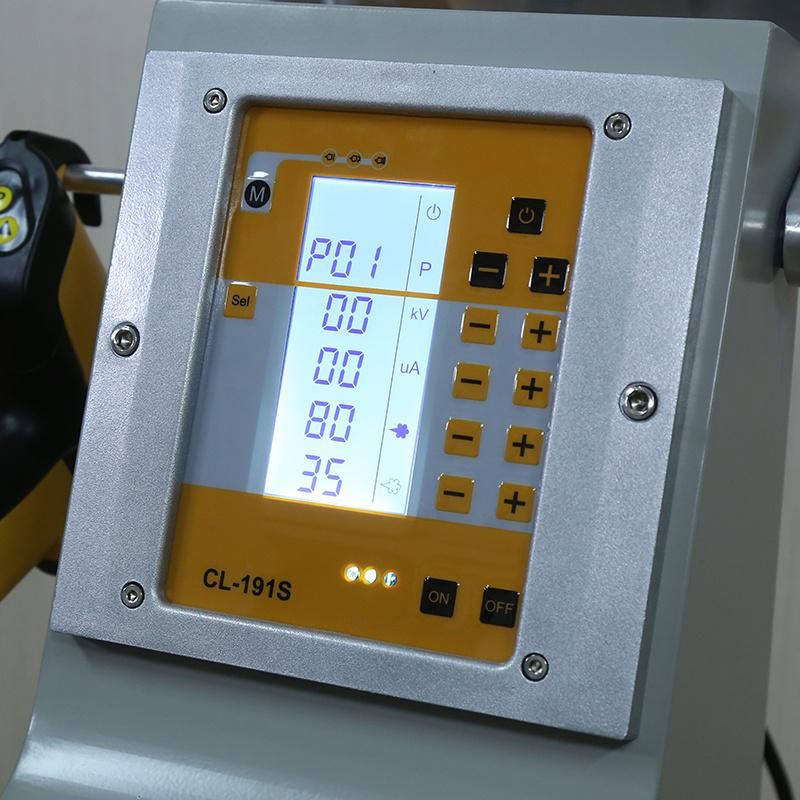

4.LCD display,Clear interface,can easily work at night.
Technical parameter
| Power range | 220V/110V |
| Frequency | 50HZ /60HZ |
| Temperature range in use | -10 ºC+50 ºC |
| Gun weight: | 500g |
| Rated output voltage | 24VDC |
| Maximum output current | 180Ua(max) |
| Maximum output voltage | 0-100KV ( adjustable) |
| Maximum powder injection | 600g/min |
| Polarity | negative (-) |
| Maximum input-air pressure | 10kg/cm |
| Optimum input-air pressure | 6kg/cm |
| Minimum input-air pressure | 4kg/cm |
| Maximum water vapor content or compressed air | 1.4g/N m3 |
| Maximum oil vapor content of compressed air | 0.1ppm |
| Maximum compressed-air consumption | 13.2 m3/h |
Applications
For coating any shape parts,simple or difficult parts only if your parts are metals.
There is a lot of different collocations of 191 series,can meet your various needs
