• Model NO.：918
• Customized：Customized
• Advantage：Work Flexible
• Condition：Used
• Product Name：12" Roll Grooving Machine ,Hydraulic Roll Groover
• Roll Set：2"-12"
• Grooving Capacity：2"-12" Sch. 10 Steel, 2"-8" Sch.40 Steel
• Transport Package：Carton Case
• Specification：53*40*54cm
• Trademark：Hongli
• Origin：Zhengjiang China
• HS Code：8462490000
• Production Capacity：1000

Basic Info.

Model NO. 918 Customized Customized Advantage Work Flexible Condition Used Product Name 12" Roll Grooving Machine /Hydraulic Roll Groover Roll Set 2"-12" Grooving Capacity 2"-12" Sch. 10 Steel, 2"-8" Sch.40 Steel Transport Package Carton Case Specification 53*40*54cm Trademark Hongli Origin Zhengjiang China HS Code 8462490000 Production Capacity 1000

Product Description

Product Description





Product Application

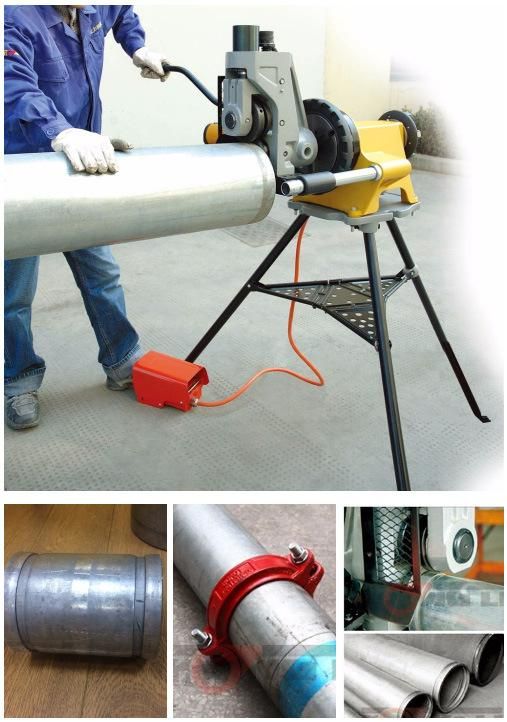

Hongli YG12A Portable Roll Grooving for Max 12" Steel Pipes, interchangeable with Ridgid 918.

Product Description:
The Model YG12A Hydraulic Roll Groover features a powerful 15-ton hydraulic ram in a compact, easy totransport unit.
With one man set-up operation, the YG12A roll groover is the ideal roll groover for job site requirements.
The YG12A mounts quickly to SQ50D power drive.
Designed to provide maximum efficiency, the YG12A roll groover is capable of grooving up to 12" Schedule 10 and 8" Schedule 40 standard wall pipes.
Roll set changeout is accomplished in seconds.


Specifications

Capacity:

2"-12" Sch. 10 steel, stainless steel.
2"-8" Sch. 40 steel, stainless steel.
Weight: 53 kg

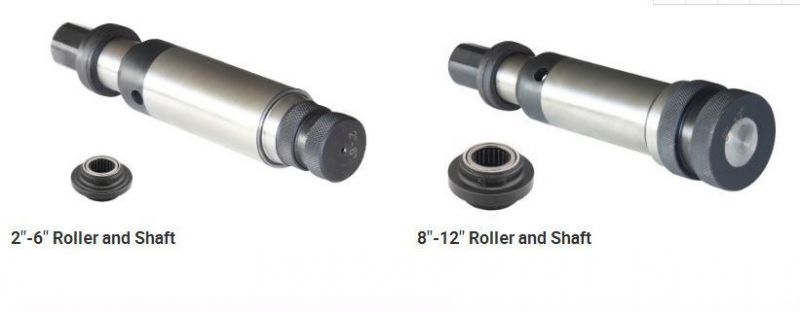

One 2"-6" Schedule 10/40 Roll Set for steel.
One 8"-12" Schedule 10 (8" Schedule 40) Roll Set for steel.

Motor:1500W Universal, reversible motor, single-phase, 110V or 220V 50/60HZ
Switch: Heavy-duty FOR/OFF/REV and integral Foot Switch
Spindle Speed :38RPM (57RPM available)

HS Code of YG12A Electric Roll Groover Part: 8462490000



Ordering Information:

Catalog.No.	Model No.	Description	N.W.:(KG)
67001	YG12A	Roll groover only, with standard 2"-12" roll set	53
	YG12A+SQ50D	Roll groover with SQ50D power drive 110V/60Hz
	YG12A+SQ50D	Roll groover with SQ50D power drive 220V/50Hz

Accessories:


Catalog No.	Model No.	Description
	---	Roll Set for 2"-6"
	---	Roll Set for 8"-12"
	1107	Pipe support stand(optional)

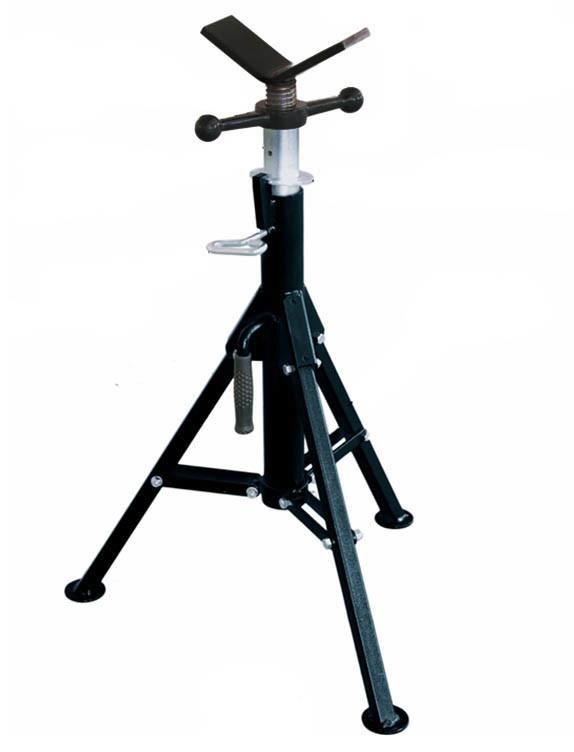

Model 1107 Pipe Support Stand for Roll Groovers for optional

Packing & Delivery

Model No.	G.W	N.W.	Packing
YG12A Roll groover	121kgs	105kgs	100*52*47 CM
