• Model NO.：JM85
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Dimension：4000*900*1400mm
• Weight：1500kgs
• Motor Power：4kw
• Hydraulic Power：2.2kw
• Voltage：220V,60Hz,3pH
• Working Speed：8-12m,Min
• Forming Steps：14
• Effective Width：85mm
• Material Width：136mm
• Thickness：0.8mm
• Transport Package：Standard Package of Export
• Specification：SGS
• Trademark：XHH
• Origin：Xiamen, China
• HS Code：8455229090
• Production Capacity：20sets,Month

Basic Info.

Model NO. JM85 Customized Customized Advantage Easy to Maintenance Condition New Dimension 4000*900*1400mm Weight 1500kgs Motor Power 4kw Hydraulic Power 2.2kw Voltage 220V/60Hz/3pH Working Speed 8-12m/Min Forming Steps 14 Effective Width 85mm Material Width 136mm Thickness 0.8mm Transport Package Standard Package of Export Specification SGS Trademark XHH Origin Xiamen, China HS Code 8455229090 Production Capacity 20sets/Month

Product Description

JM85 Roll Forming Machine For Rolling Door

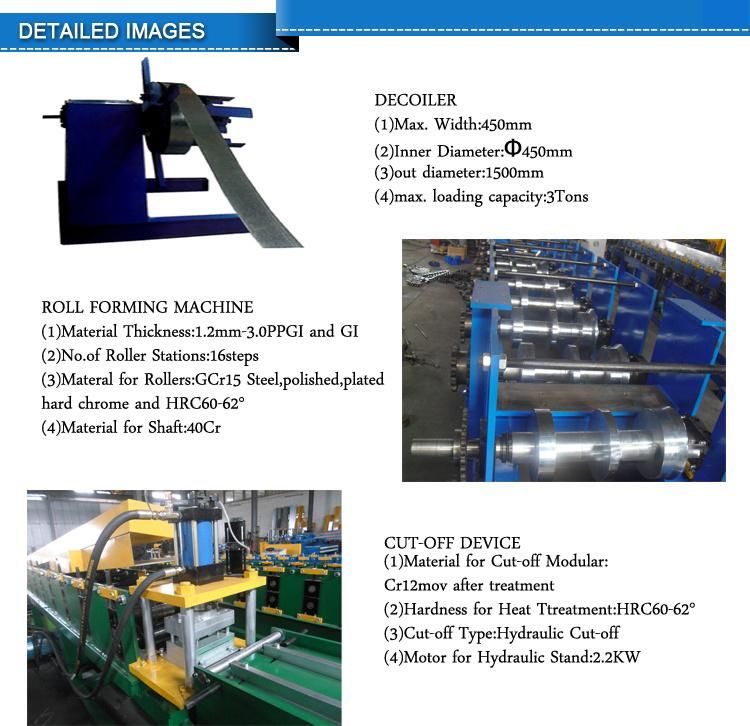

a. Main Accessories:
(1) Main Forming Machine;
(2) 3 Tons Manual Uncoiler;;
(3) Hydraulic System;

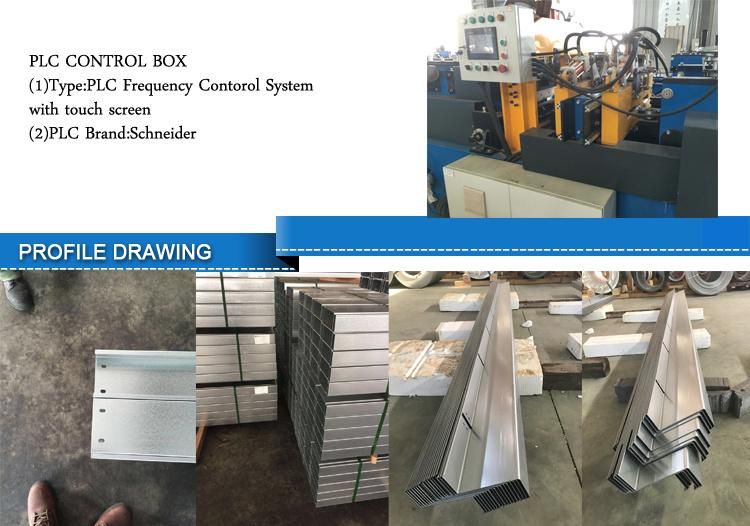

(4) PLC Computer Controlling System with Touch Screen (Brand: Delta for PLC, touchingscreen,encorder and frequency changer);
(5) Hydraulic Forming Cutter;
(6) Run Out Tables(3 Units);
(7) Tools;
(8) Operation Manual.

b.Main Technical data

Size	4000*900*1400mm
Weight	2500KGS
Hydraulic Motor Power	4KW
Effective Width	85mm
Material Width	136mm
Forming Steps	14stepsg
Processing Speed	8-12m/min
Voltage	380V/50HZ/3PH
Material of principal axis	high grade 45# forged steel
Material of roller	45#steel with hard chrome plating
Material of blade	Cr12 mould steel with quenched treatment 60-62°C
Material for frame of machine	Fine welded structural steel
Sprocket wheel	45 steel high-frequencies quench


Material for producing roofing: normal colored painted and galvanized sheets with strength 245, 345MPA;
Warranty: 1 year and life-long maintain;
*Installation and debugging: We will send professional engineer to make installation and debugging, Buyer pay our engineer each one 50 USD/day, and provide accommodation, food and the round-trip ticket fee.
* Installation Days: about 5-7 days
