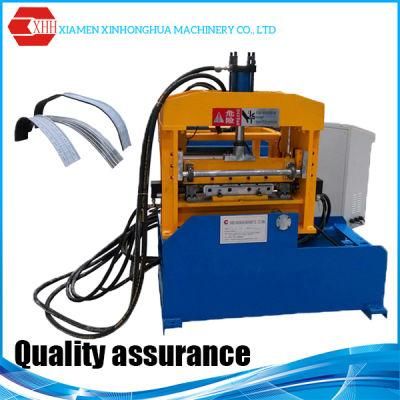

Metal Roll Forming Machine for Standing Seam Roofing Panel Machinery

Xiamen Xinhonghua Machinery Co., Ltd.
  • Dimension：1700*1100*1200mm
  • Weight：800kgs
  • Motor Power：1.5kw
  • Voltage：380V,50Hz,3pH
  • Effective Width：220-530mm
  • Material Width：290-600mm

Base Info

  • Model NO.：KLS25-530
  • Material Thickness：0.5-0.8mm
  • Transport Package：Nude in Container
  • Specification：SGS
  • Trademark：XHH
  • Origin：Xiamen of China
  • HS Code：84552290
  • Production Capacity：20 Sets,Month

Description

Basic Info.

Model NO. KLS25-530 Material Thickness 0.5-0.8mm Transport Package Nude in Container Specification SGS Trademark XHH Origin Xiamen of China HS Code 84552290 Production Capacity 20 Sets/Month

Product Description

Metal Roll Forming Machine for Standing Seam Roofing Panel Machinery
Main Technic:
1.Dimension1700*1100*1200mm
2.Weight800KGS
3.Motor Power1.5KW
4.Power for hydraulic forming cutter0.75KW
5.Voltage380V/50HZ/3PH
6.Forming Steps6 steps
7.Forming Speed6-8m/min
8.Thickness for Steel0.5-0.8mm
9.Height of Roofing25mm
10.Effective Width for Roofing220-530mm
Metal Roll Forming Machine for Standing Seam Roofing Panel Machinery
Metal Roll Forming Machine for Standing Seam Roofing Panel Machinery
