• Model NO.：JLC
• Feature：Induction Forging Machine
• Certification：CCC, ISO9001, CE, SGS, BV etc.
• Warranty：12 Months
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Including：Generator, Transformer, Cable, Induction Coil
• Working Theory：Electromagnetic Induction Heating
• Name：Induction Heater for Bolts
• Cooling System：Water Cooling System
• Frequency：10-30kHz
• Color & Language：Printed According to Customer′s Request
• Cooling Water Desire：>0.3MPa 2-6L,Min
• Package：Plywood Case
• Color：Blue
• Product Name：Induction Heater for Bolts
• Transport Package：Plywood Case
• Specification：custom made
• Trademark：JINLAI
• Origin：Dongguang, China
• HS Code：8514400090
• Production Capacity：5000 Sets , Year

ModelJLC-30JLC-50JLC-60JLC-80JLC-120Input power desire3 phase 380V 50/60HZOscillate power max30KW50KW60KW80KW120KWMax input current48A63A90A135A195ADC current60A80A120A150A250AOscillate frequency10-30KHZ10-30KHZ10-30KHZ10-30KHZ10-30KHZTiming1M-99.99M
1S-99.99S
0.01S-99.99S1M-99.99M
1S-99.99S
0.01S-99.99S1M-99.99M
1S-99.99S
0.01S-99.99S1M-99.99M
1S-99.99S
0.01S-99.99S1M-99.99M
1S-99.99S

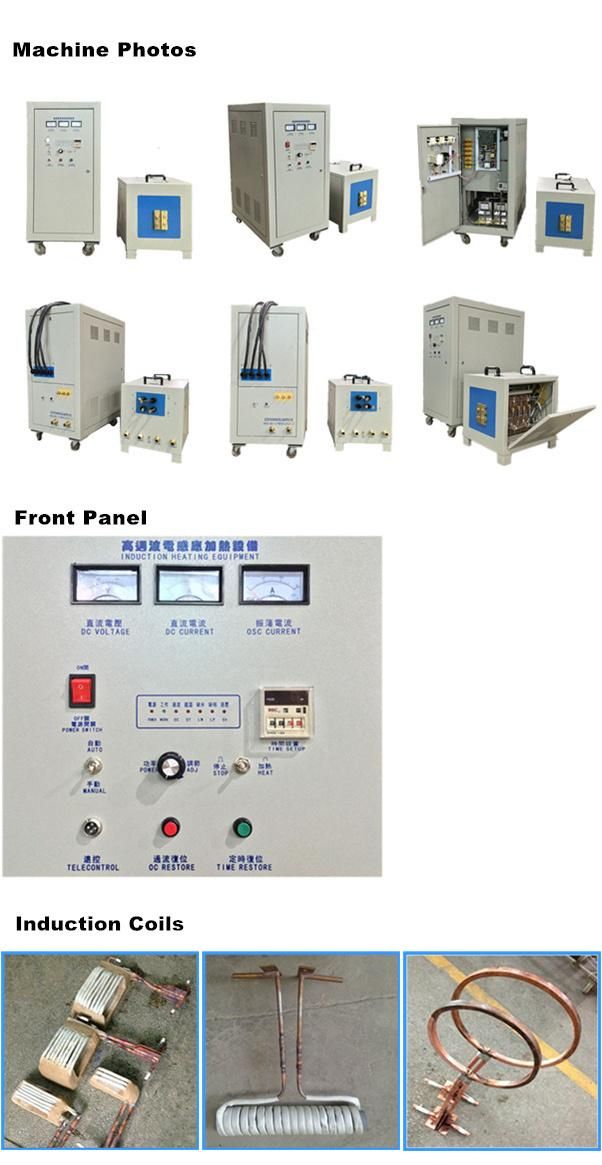

0.01S-99.99SCooling water desire0.2Mpa  0.3Mpa  0.3Mpa  0.4Mpa  0.5Mpa  Duty cycle100% 40°CNet weight60kg/30kg65kg/45kg70kg/45kg80kg/55kg110kg/90kgCable length2-6(Meters)2-6(Meters)2-6(Meters)2-6(Meters)2-6(Meters)Photos of Product

Induction heating machine with multi-protective functions to over-voltage, over-current, over-temperature, water fail, and is safe and reliable.
Lower power consumption, the IGBT technology save 15-30% energy, 100% full load, working 24 hours continuously.

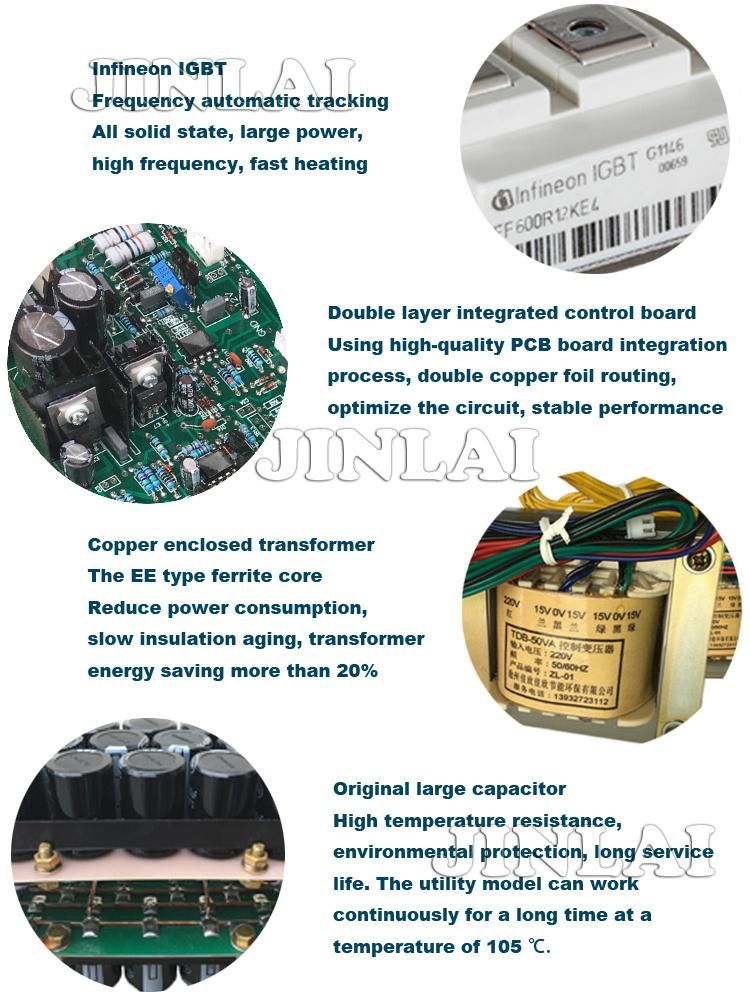

Main Parts Introduction

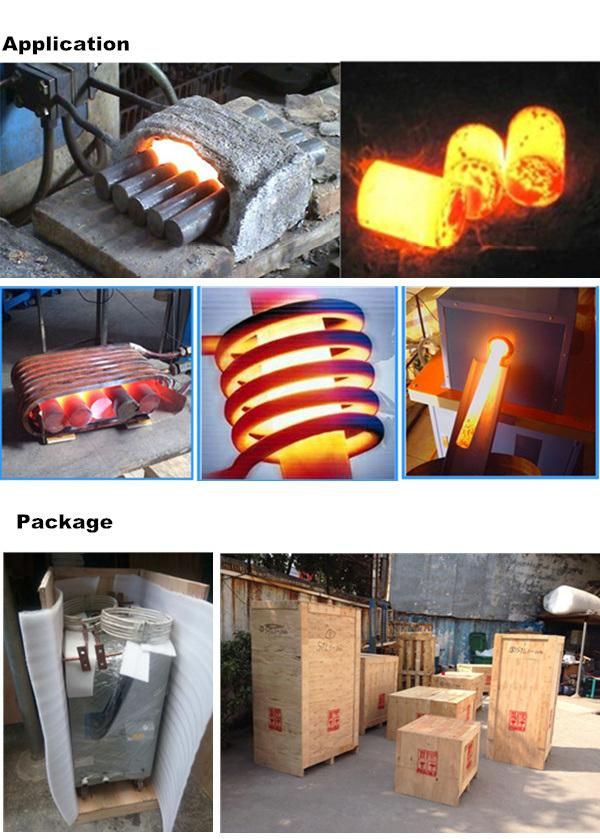

Working Photos

Forging Molding
     M.F. forging furnace is used for the heating of bars and rods, the material can be steel, stainless steel, copper, brass ,aluminium and so on.  The heating can be the whole rod, end of the rod or middle part of the rod.
    Application Examples:Fasteners, Hardware tools, Automobile and motorcycle accessories, Rigging, Pipe fittings, Twist drill, Atlas, Table, Mould parts, Standard parts, Handicrafts, Machinery parts, Brass lock, Lock, Rivets, Other hardware and metal accessories.

Packaging & Shipping

Item	Name of machine or parts	Specification	Amount
1	JLC-60KW Generator	-	1 pc
2	JLC-60KW Transformer	-	1 pc
3	Foot pedal	3 core	1 pc
4	Induction Coils	-	2 sets
5	Connect cables	-	1 set
6	Instruction Manual	-	1 pc
7	Product catalog	-	2 set
