• Model NO.：COLO-191s
• Condition：New
• Name：Conveyor Powder Coating Equipment Package
• Voltage：220V,380V 3phase
• Frequency：50-60Hz
• Application：Powder Coating
• Coating Material：Plastic Powders
• Booth Operation：Manual
• Booth Material：Coated Metal
• Booth Type：Conveyor Powder Coating Booth
• Oven：Electric Powder Coating Oven
• Item：Manual Powder Coating Package
• Transport Package：Wooden Carton
• Specification：per need
• Trademark：COLO
• Origin：China
• HS Code：8424899990
• Production Capacity：50sets,Month

Basic Info.

Model NO. COLO-191s Condition New Name Conveyor Powder Coating Equipment Package Voltage 220V/380V 3phase Frequency 50-60Hz Application Powder Coating Coating Material Plastic Powders Booth Operation Manual Booth Material Coated Metal Booth Type Conveyor Powder Coating Booth Oven Electric Powder Coating Oven Item Manual Powder Coating Package Transport Package Wooden Carton Specification per need Trademark COLO Origin China HS Code 8424899990 Production Capacity 50sets/Month

Product Description

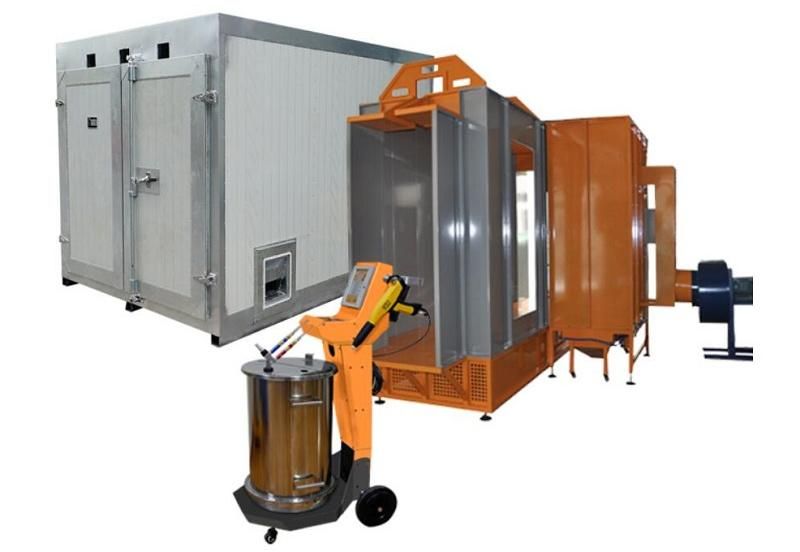

Conveyor Powder Coating Equipment Package

This conveyor powder coating equipment package especially suits for powder coating large or heavy workpiece. Spray booth and curing oven are able to connect with conveyor for simply conveying large and heavy parts. Includes a 100kV professional powder coating gun, conveyor powder coating booth and powder coating oven with top tracks.

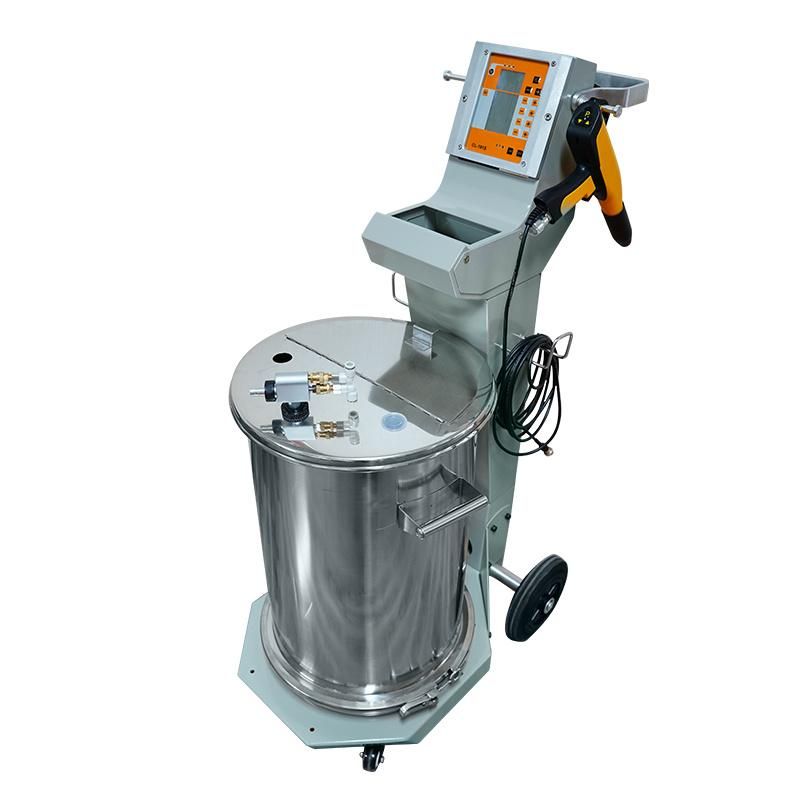

COLO-191S Powder Coating Machine

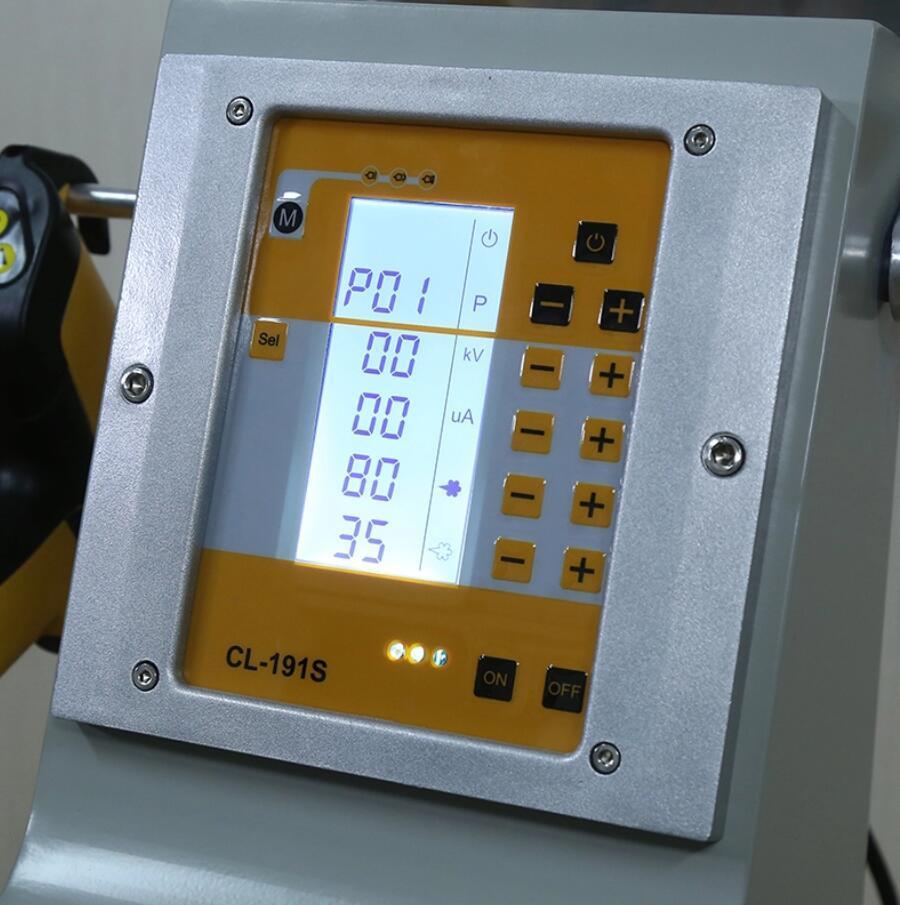

1. COLO-191S controller with digital valve control technology could adjust parameters precisely for uniform coating.

2. There are 3 pre-set application modes, also could store 20 personalized application programs.

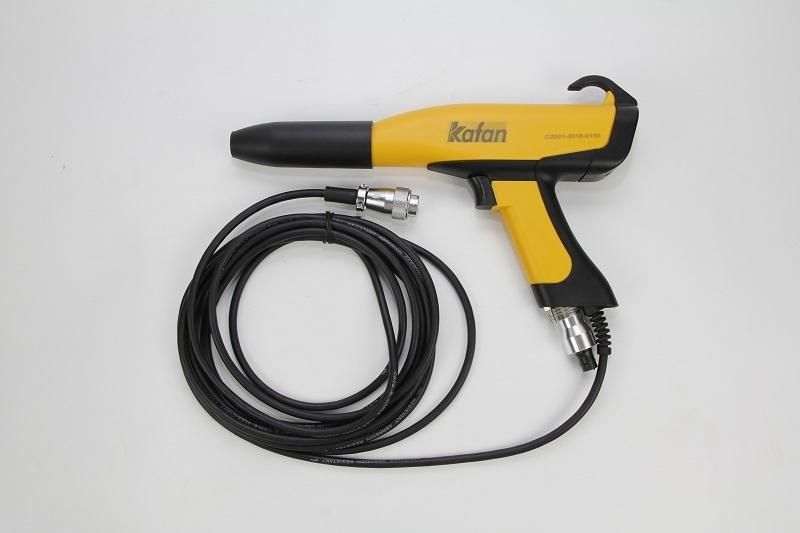

3. The leightweight COLO-08 spray gun is made of anti-static material, features wear-resistant, safe and long-life.

4. Spray gun with built-in 100kv cascade maximizes transfer efficiency, supports for powderful and long lasting work.




Specifications of COLO-191S Powder Coating Machine

Voltage	AC 220V / 110V
Frequency	50-60Hz
Power	50W
Output Voltage	DC24V
Max Voltage	0-100 KV adjustable
Max Powder Injection	600 g/min
Max input air pressure	10 kg/cm
Optimum input-air pressure	6 kg/cm
Minimum input-air pressure	4 kg/cm
Maximum water vapor content or compressed	1.4 g/Nm3
Maximum oil vapor content of compressed air	0.1 ppm
Maximum compressed -air consumption	13.2 m3/h
Temperature Range in Use	-10 ºC-50 ºC
Gun Weight	500g
Maximum Output Current	180μA
Polarity	negative

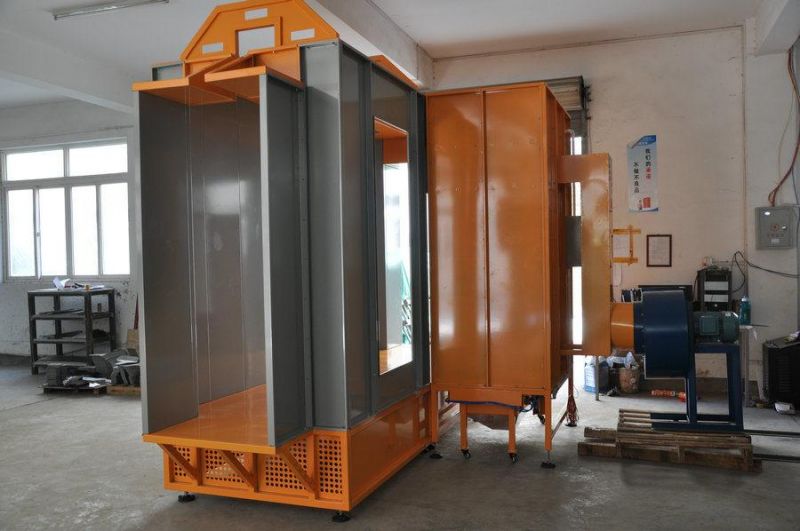

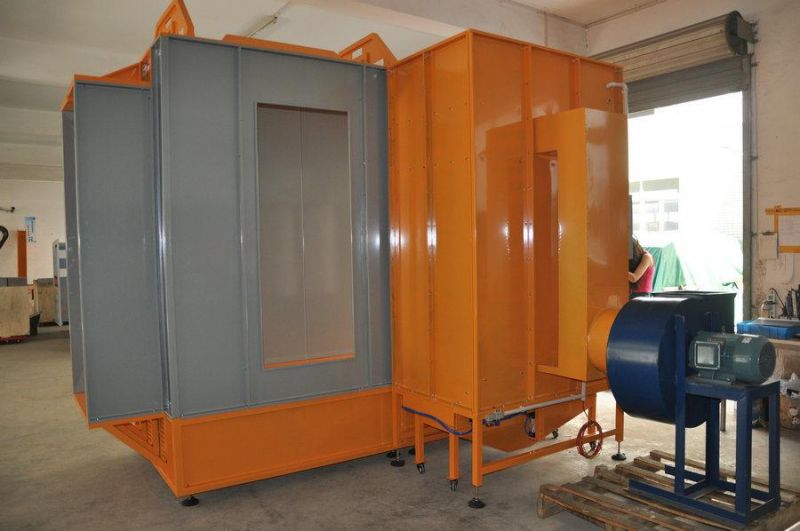

COLO-3212 Conveyor Powder Coating Booth

1. Top track of powder coating booth could be connected to the powder coating line conveyor to achieve continuous production.

2. This booth is designed with dual working station that operators could coat both sides.

3. Powerful fan supply efficienct wind, reduces air consumption with low noise level.

4. PLC control the fan working and precisely set the interval of filter cleaning.




Specifications of COLO-3212 Conveyor Powder Coating Booth


Model	COLO-3212
Operating Dimensions	Width620 * Depth2920 * Height1500mm
Overall Dimensions	Width1200 * Depth3000 * Height2033mm
Power Supply	Electric
Nominal Power	4 kw
Voltage	380V220V
Frequency	50-60Hz
Filters Count	4pcs (Dia325*H900 mm)
Filters Hang Type	Easy for change
Filter Cleaning System	Pneumatic
Warranty	1 year

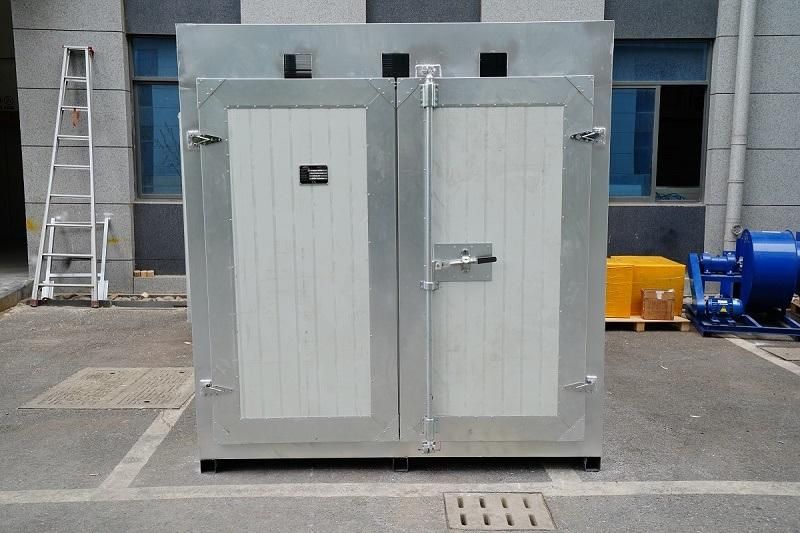

COLO-3210 Powder Coating Curing Oven

1. Built with three top tracks to connect to powder coating line convetor.

2. Riello burners that imported from Italy makes heating faster to a required temperature.

3. Oven body is 100mm rockwool insulation board interlayer with galvanized innerwall and color steel outwall, to get a better heat preservation effect.

4. Powerful Circulation Fan circles hot air in the chamber to ensure even temperature distribution.

5. PLC Controller provides high-precison heating process, easy to set accurate temperature, heating time and control fan working.




Specifications of COLO-3210 Powder Coating Curing Oven


Model	COLO-3210
Worksize dimensions	Width2000 * Height1900 * Depth3100 mm
Power supply	Gas/LPG/Diesel
Burner	Italy Riello, 100,000cal
Voltage / Frequency	220V/380V (customized as local)
Frequency	50-60 Hz
Warm-up time	15-30min (180°C)
Temperature stability	<± 3-5°C
Temperature max.	250°C
Motor power	4kw
Circulation/ Air flow	Vertical ,Variable through holes on the walls
Transportation	Trolley
Warranty	12 months



This powder coating line can be customized base on customers' detailed need.




FAQ

1.When did your company commence its business?

As a factory of powder coating machines, F&F is the brother company of HICOLO ,dated  to 2005, on that year we are produce the spare parts for powder coating systems mainly,we expand our business range ,takes decades time.

2.Where is your Company located?

HANGZHOU CITY, Zhejiang province. China
IF YOU WANT TO VISIT US, YOU COULD TAKE PLANE TO Shanghai AIRPORT OR Hanghzou AIRPORT.

3.How can I pay you from abroad?

YOU COULD TRANSFER THE PAYMENT VIA T/T OR PAYPAL ,WESTERN UNION WE COULD PROVIDE YOU THE BANK DETAILS.

4.How do you ship the goods?

Generally, the bigh machine with more quantity we ship the goods by sea.
For some spare parts or only one machine, we suggest client to choose express like TNT, DHL, UPS, FEDEX. that is more faster.
If you have special requirements or need DOOR TO DOOR service, then please tell us before , we can calculate the shipping cost to you .

5.How do you provide after sales support?

We provide very active support by emails, telephone, online tools.
If necessary, we also could send technicals over there to help customer solve the problems.

6.How is the booth shipped and how long will it take to get once I order it?

There so many models we have in stock then we can delivery it as soon as we got your payment.
Others no in stock then we need some days to produce, machines need 3 days. and spray booth or curing oven we need 2 weeks.
if send by EXPRESS, it will take 5 days more or less you can get it. if send by sea, then depends on the country where you are .
anyway, we will be your feet and finsh the production soon to support you.
