Bending Roll Forming Machine for Corrugated Sheet

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Mold Forging
  • Power Source：Hydraulic Pressure
  • Feature：High Efficiency
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：YX18-76.2-762
  • Customized：Customized
  • Advantage：Use Widely
  • Condition：New
  • Color：Blue and Yellow
  • Transport Package：Sea Packing
  • Specification：CE SGS
  • Trademark：SAIBO
  • Origin：China
  • HS Code：84552210
  • Production Capacity：300set,Year

Description

1Machine structureWall panel structure2Total powerMotor power-4kw, AC motor
 3Roller stations3 roller, up in 1 roller, down in 2 station4Productivity0-15m/min5Drive systemBy chain6Diameter of shaft¢70mm solid shaft7
 Voltage380V 50Hz 3phases (Customized)
The Chart of Process Flow

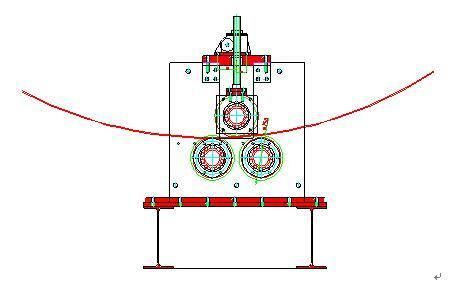

Bending Roll Forming Machine for Corrugated Sheet

Bending roll forming machine
1. Brief introduction:
A. Simple structure and beautiful outlook;
B. Easy to setting and operation
C. Little noise and high working efficiency.

2. Main technology parameter:
1. Main power: 5.5KW
2. Size of roll forming machine: About 0.4m*1.5m*1.2m
3. Thickness of formed steel: 0.8mm-1.5mm
4. Material of the roller: 45#forge steel, machined with numerical control, polished and coated with chrome, surface with 0.05mm
5. Hydraulic power: 5KW
6. Computer adopts PLC, Panasonic
7. Computer operating board: Touch screen
8. Working speed: 12-15m/min(not including cutting)
9. Hydraulic pressure: 12Mpa
