Two Waves Guard Rail Roll Forming Machine
Zhangjiagang City Saibo Science & Technology Co., Ltd.- Type：Rolling Machine
- Forging Forming Method：Roll Forming
- Power Source：Electric
- Feature：High Efficiency
- Certification：ISO9001, CE
- Warranty：12 Months
Base Info
- Model NO.：M192
- Customized：Customized
- Advantage：Easy to Maintenance
- Condition：New
- Color：Blue and Yellow
- Transport Package：no packing
- Specification：CE SGS
- Trademark：SAIBO
- Origin：Jiangsu. China
- HS Code：84552210
- Production Capacity：300sets,Year
Description

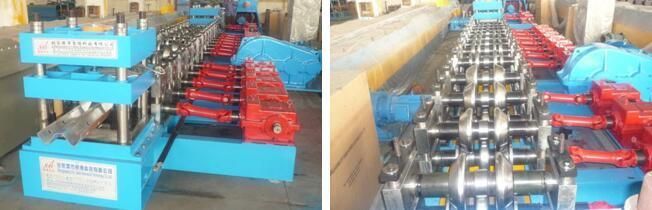

Product name: Guard rail roll forming machine
Description:
1. Brief introduction:
A. Simple structure and beautiful outlook;
B. Easy to setting and operation
C. Little noise and high working efficiency.
2. Main technology parameter:
The structure of equipment
1. Hydraulic decoiler
Single unrolling machine, one side can put material
Adopt automatic hydraulic system
Coil weight (Max): 7000kg
Coil dia (Max): 1600mm
Oil cylinder dia: 1200mm working pressure: 10mpa
Coil Width(Max. ): 500mm
2. Feeding, leveling
Feed into unit oriented wheel(can right and left adjust)
Into feeding roller, dia is ¢ 180mm, material 45# steel, quenched 48-52, chromed
Leveling is three roller above and four roller below, quenched and chromed
3. Punching (can right and left adjust)
Using hydraulic punching
Oil cylinder dia: 140mm
Working pressure: 20mpa
Mould material: Cr12 quenched 58-62
Hydraulic power: 7.5kw
Size: 1.5m long*1.1m wide*1.2m high
4. Roll forming
Main motor power: 45kw
Decelerating motor: BWD14-43-37kw, made in Shanghai or
Changzhou
Drive: Gimbal driving, 120*500
Main shaft dia: 100mm material: 45#forge steel
Roller material: GCR15 quenched 58-62, chromed
Roll station: 17stations
Timing by transducer: 5m--20m/min(not including punching)
Transducer: Panasonic made in Japan. 380V 50Hz
Computer: PLC
Computer operating panel: Touching screen
5. Cutting
Hydraulic cut
Knife material: Cr12, quenched 58-62
Oil cylinder dia: 250mm
Working pressure: 30mpa
Working journey: 80mm
6. Run out table
Jointed by 60mm*40mm tube (can be adjusted to up and down)
Size: 1.5mlong*0.8mwide*0.6-1mhigh(can be adjusted)
7. The production flow of equipment
Decoiling-Feeding(take the sheet to the first station)-leveling-Punching of the sheet -roll forming-hydraulic cut to length-product packing manual.
