• Model NO.：SuperFast 1530
• Machine Name：CNC Plasma Cutting Machine
• Cutting Speed：100-12000 mm,Min
• Cutting Thickness：0.5-30mm
• Cutting Accuracy：±0.5mm
• Worktable：Blade Worktable
• Drive：Stepper Motor
• Control System：F2300b
• Software：Startcam
• Plasma Cutter：Huayuan,Seanior,Hypertherm
• Application：Industrial Metal Cutting
• Transport Package：Wooden Case, Standard Export Packing
• Specification：1500*3000mm
• Trademark：Seanior
• Origin：China (Mainland)
• HS Code：8456901000
• Production Capacity：400 Sets,Year

Basic Info.

Model NO. SuperFast 1530 Machine Name CNC Plasma Cutting Machine Cutting Speed 100-12000 mm/Min Cutting Thickness 0.5-30mm Cutting Accuracy ±0.5mm Worktable Blade Worktable Drive Stepper Motor Control System F2300b Software Startcam Plasma Cutter Huayuan/Seanior/Hypertherm Application Industrial Metal Cutting Transport Package Wooden Case, Standard Export Packing Specification 1500*3000mm Trademark Seanior Origin China (Mainland) HS Code 8456901000 Production Capacity 400 Sets/Year

Product Description

Product Presentation:

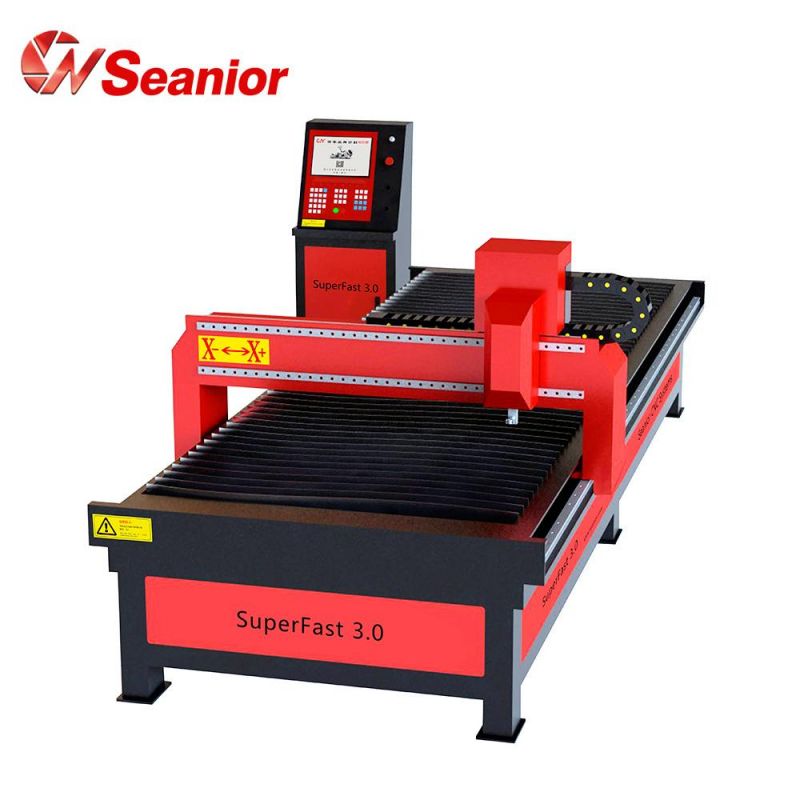

 High Quality 1540 HVAC Duct CNC Plasma Metal Cutting Machine

(CNC Plasma Cutting Machine    SuperFast1540)

Low cost plasma and cutting machine | Fast, Accurate, Long work hours


 * High quality, low cost, maximum productivity* Easy to use* Precision cut quality* Fast, reliable and long work hours

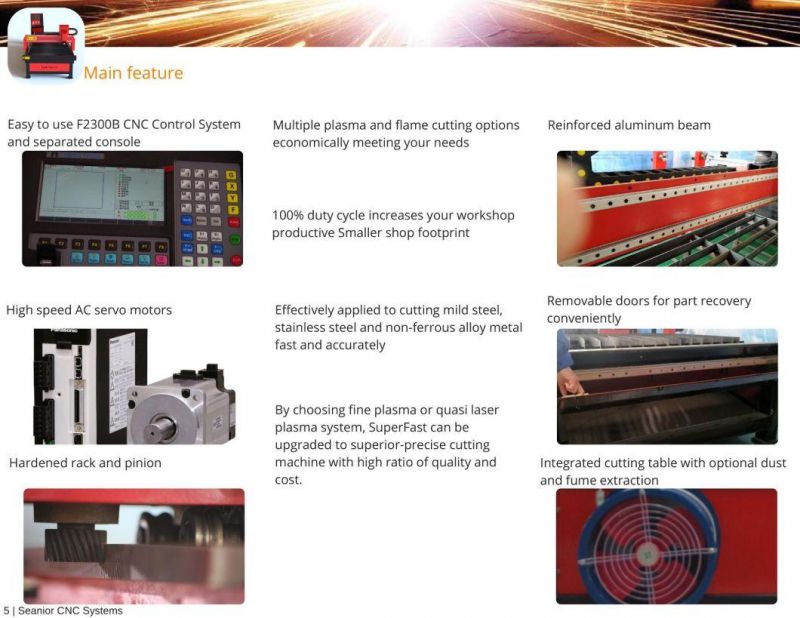

Product Feature:
 High Quality 1540 HVAC Duct CNC Plasma Metal Cutting Machine

(CNC Plasma Cutting Machine    SuperFast1540)

Low cost plasma cutting machine | Fast, Accurate, Long work hours
Product Advantages:
Compact construction, SuperFast is your best choice to cut sheet metal at low cost while achieving accurate cutting quality at the same time.  Integrated machine body, sophisticated moving parts and intelligent torch lifter device minimizing non-productive time and guarantee you long period use.  Fast, Accurate, Superior edge quality, SuperFast cutting table provides superior performance and entry-level price.



Product Parameters:


Technical item	Technical parameters
effective cutting width	1500mm/2000mm
effective cutting length	3000mm/4000mm
material thickness	0.5-40mm
torch lifter vertical traveling distance	≤150mm
cutting precision	±0.5mm
cutting speed	100-12000mm/min
linear repeating accuracy	±0.2 mm
plasma power	63A (90/125/160/200A for option)
plasma source	Huayuan or Hypertherm
duty cycle	24h
temperature of the working environment	-20~55ºC
material to cut	mild steel, stainless steel, alloy, aluminum, copper, titanium and other non-ferrous metal

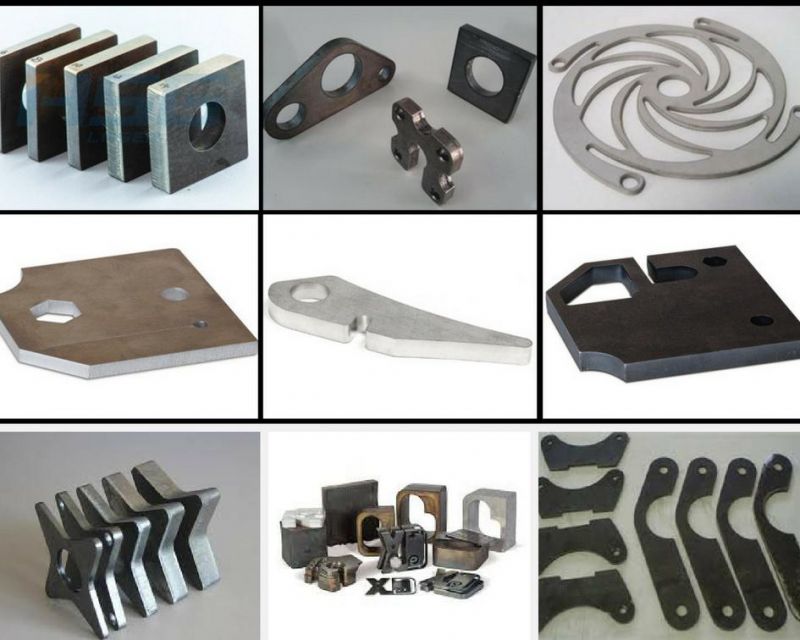

Cutting Sample:

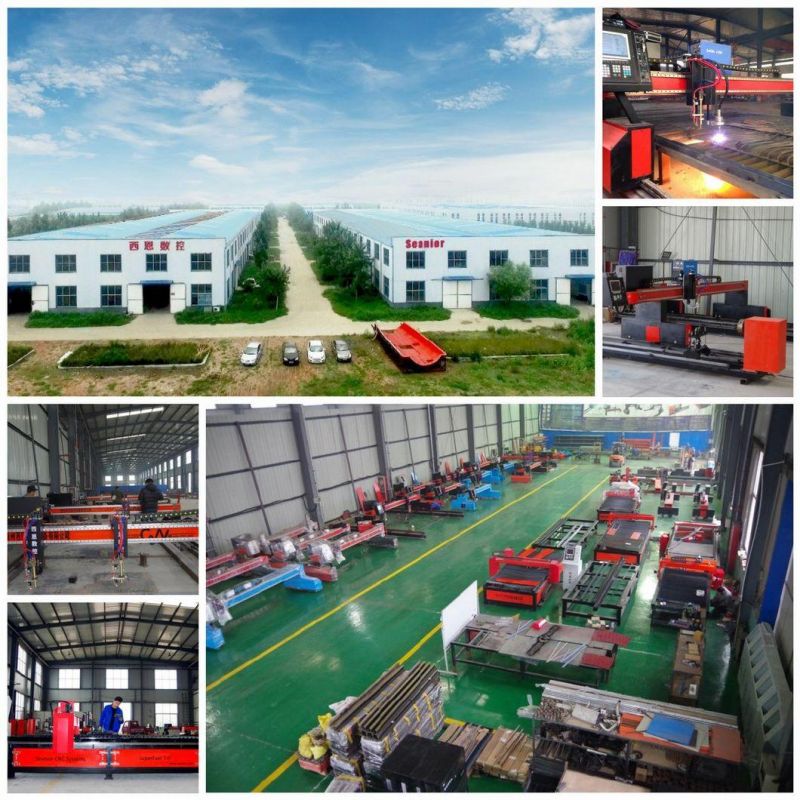

Seanior CNC Systems:
 Seanior CNC Systems

Seanior CNC Systems manufactures and sells cutting machines, provide services for the metal-working industry, offering complete solutions and focus on customer-driven innovation.

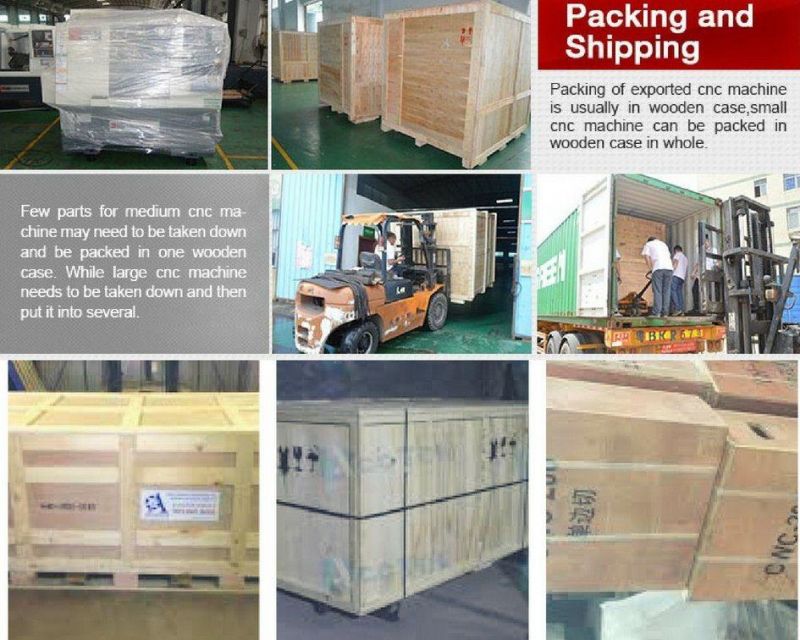

 Packing & Delivery:
Packing Details  : wooden case, standard export packing            1.Outside package:Standard marine export plywood cases for table.                2.Inner package:Stretch film and plastic film for humidity.            3.We can package according to your requests.
