• Model NO.：SuperFast1530
• Machine Name：CNC Plasma Cutting Machine
• Cutting Speed：100-12000 mm,Min
• Cutting Thickness：0.5-40mm
• Cutting Accuracy：±0.5mm
• Type：Table Type
• Drive：Stepper Motor
• Control System：F2300b
• Software：Startcam
• Plasma Cutter：Huayuan,Seanior,Hypertherm
• Application：Industrial Metal Cutting
• Transport Package：Wooden Case, Standard Export Packing
• Specification：1500*3000mm
• Trademark：Seanior
• Origin：China (Mainland)
• HS Code：84564010
• Production Capacity：400 Sets,Year

Basic Info.

Model NO. SuperFast1530 Machine Name CNC Plasma Cutting Machine Cutting Speed 100-12000 mm/Min Cutting Thickness 0.5-40mm Cutting Accuracy ±0.5mm Type Table Type Drive Stepper Motor Control System F2300b Software Startcam Plasma Cutter Huayuan/Seanior/Hypertherm Application Industrial Metal Cutting Transport Package Wooden Case, Standard Export Packing Specification 1500*3000mm Trademark Seanior Origin China (Mainland) HS Code 84564010 Production Capacity 400 Sets/Year

Product Description

Product Presentation:

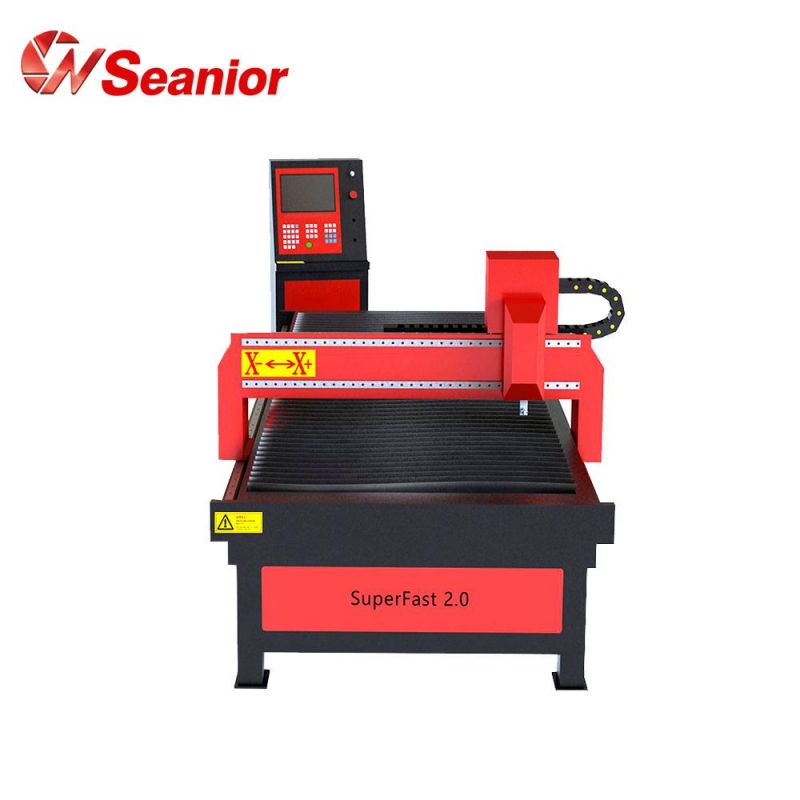

 Accept Customization 1500*3000mm CNC Table Plasma Cutting Machine

(CNC Plasma Cutting Machine    SuperFast1530)

Low cost plasma and cutting machine | Fast, Accurate, Long work hours

 * High quality, low cost, maximum productivity* Easy to use* Precision cut quality* Fast, reliable and long work hours
Product Feature:
 Accept Customization 1500*3000mm CNC Table Plasma Cutting Machine

(CNC Plasma Cutting Machine    SuperFast1530)

Low cost plasma cutting machine | Fast, Accurate, Long work hours
Machine Feature: Cutting widths: 1.5m
Cutting lengths :3.0m
Cut mild steel, stainless steel and aluminum.
Positioning speed of 1200 ipm reduces idle time between cuts.
Control console mounted is free standing ease of access and safe operation.
Plasma up to 1'' thick material with standard Huayuan LGK120.
Optional flame Oxy-fuel Torch.
Integrated cutting table with optional dust and fume extractio.


Product Parameters:


Technical item	Technical parameters
effective cutting width	1500mm/2000mm
effective cutting length	3000mm/4000mm
material thickness	0.5-40mm
torch lifter vertical traveling distance	≤150mm
cutting precision	±0.5mm
cutting speed	100-12000mm/min
linear repeating accuracy	±0.2 mm
plasma power	63A (90/125/160/200A for option)
plasma source	Huayuan or Hypertherm
duty cycle	24h
temperature of the working environment	-20~55ºC
material to cut	mild steel, stainless steel, alloy, aluminum, copper, titanium and other non-ferrous metal

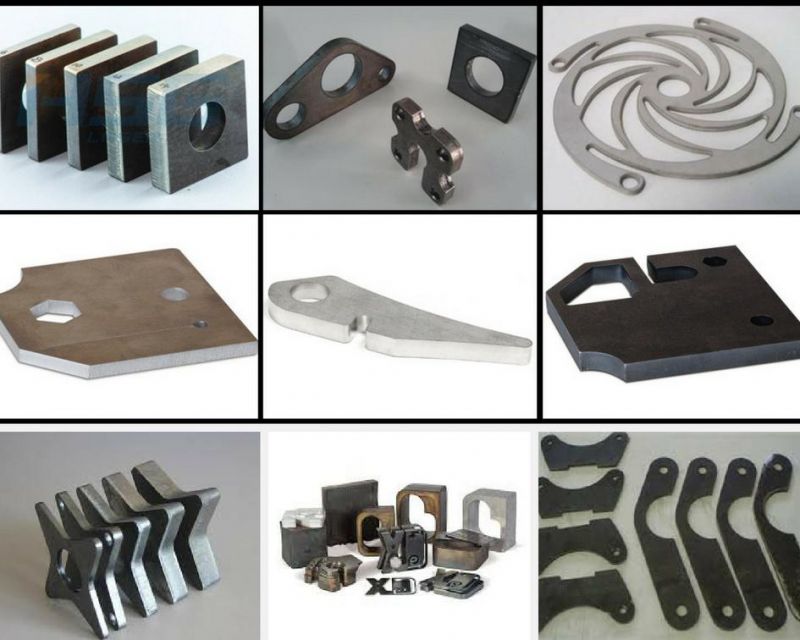

Cutting Sample:

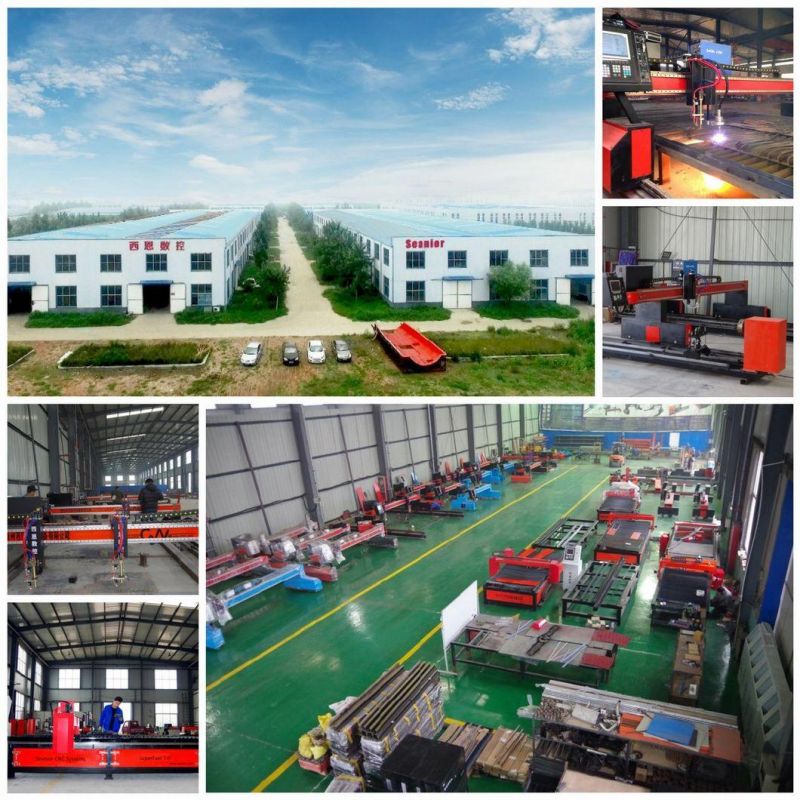

Seanior CNC Systems:
 Seanior CNC Systems

Seanior CNC Systems manufactures and sells cutting machines, provide services for the metal-working industry, offering complete solutions and focus on customer-driven innovation.


 Why you Choose Seanior CNC Systems?
 Our technical team is your excellent cutting performance guarantee and our perfect service plan solve all your problems.
 1. 12 months warranty for the whole machine.
2. Technical support by phone, email 24/7
3. English version manual and operation tutorial video
 4. Engineer available to service machinery overseas.
  Packing & Delivery:
Packing Details  : wooden case, standard export packing            1.Outside package:Standard marine export plywood cases for table.                2.Inner package:Stretch film and plastic film for humidity.            3.We can package according to your requests.
