• Model NO.：BG-01B
• Layout：Continuous
• Type：Cold Rolling Mill
• Total Electric Power：25kVA Only
• Applicable Radiator Tube Width：16~32mm
• Applicable Radiator Tube Thickness：1.4~2.5mm
• Tube Wall Thickness：0.24~0.35mm
• Applicable Aluminum Tube Length：200~1200mm
• Line Working Speed：Max. 120m,Min
• Line Cutting Speed：Max. 300 Cuts Per Minute
• Length Error：Less Than +,-0.5mm
• Noise Level：<75dB
• Transport Package：Bare in Container
• Specification：About 15 x 5.1 x 2.2m (workshop occupation)
• Trademark：Zhenhuan
• Origin：China
• HS Code：8455102000
• Production Capacity：60 Sets Per Year

Basic Info.

Model NO. BG-01B Layout Continuous Type Cold Rolling Mill Total Electric Power 25kVA Only Applicable Radiator Tube Width 16~32mm Applicable Radiator Tube Thickness 1.4~2.5mm Tube Wall Thickness 0.24~0.35mm Applicable Aluminum Tube Length 200~1200mm Line Working Speed Max. 120m/Min Line Cutting Speed Max. 300 Cuts Per Minute Length Error Less Than +/-0.5mm Noise Level <75dB Transport Package Bare in Container Specification About 15 x 5.1 x 2.2m (workshop occupation) Trademark Zhenhuan Origin China HS Code 8455102000 Production Capacity 60 Sets Per Year

Product Description

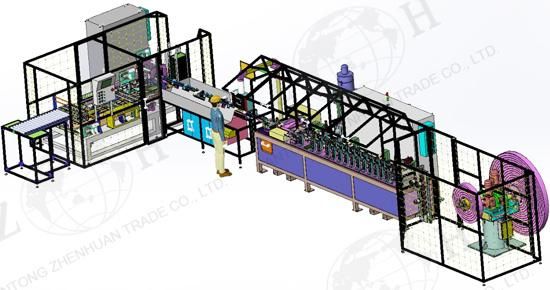

Car Radiator Folded Aluminum B Tube Mill

I Description of car radiator folded aluminum B tube mill
This machine is specially designed for producing folded B type radiator aluminum flat tubes.
The folded tubes are produced from brazing sheet coils by a multi-step roll forming process - bringing the sheet gradually into a "B" shape. Comparing to traditional HF welded flat tubes, B-tubes have certain advantages - particularly regarding strength. The folded ends of the tube sheet are brazed inside the tube, which creates a very robust bridge between the walls. This results in higher burst pressure resistance.
And thus thinner aluminum strips can be used to decrease material cost of radiator tubes.
Further more, heat transferring result of radiator cores by folded B tubes is better than that of HF seam-welded tubes.
Tube rolling moulds are designed in quick-changeable cassette type. By changing this kind of cassette, other size aluminum tubes can be produced as well.

Of course, on same cassette, rollers can be changed for other size tubes also.
This machine can 100% replace those aluminum pipe mill from Schoeler Germany, Millmaster USA or Mori Japan.
Production flow:
- Aluminum strip reel loading by vacuum absorber loading device (optional)
- Aluminum strip decoiling by twin-head active decoiler
- Aluminum strip feeding by synchronization feeder with buffer

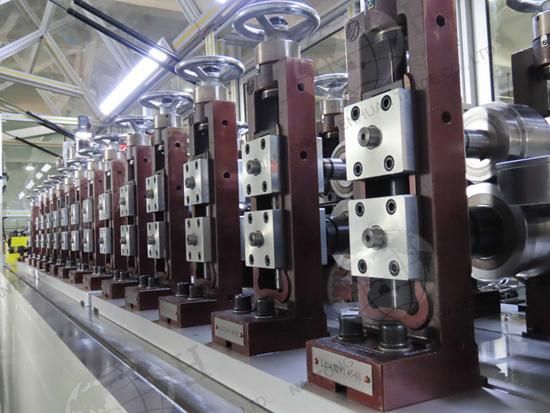

- Roll forming by 15 stations rollers, including online dimpling
- Cutting to length by non-stop high speed cutter
- Transmitting, with bad tube separating & collecting
- Auto tube stacking system (optional)

II Main features of car radiator folded aluminum B tube mill
- Servo screw pump pasting brazing flux on internal surface before forming, programmable, real-time visual inspection, assuring pasting quality and further brazing quality
- Special roller designing and adjusting technology for various aluminum pipe forming
- Quick roller changing, only two workers and 60 minutes to finish size changing
- Perfect coordination between dimpling and cutting devices, margin length can be set freely
- Dual-station tube transmitting belt, capable for separately collecting good and bad tubes
- Special cutting device, supper high speed cutting catching the whole line speed, max. Cutting speed 300 tubes/min.
- Dimpling and cutting are matched ideally, margin length on tube end can be freely preset
- Equipped with safety barrier, protection cover, door switch and voice-light alarming
- Equipped with oil mist collecting device, recovering rate >85%

III Main technical data of car radiator folded aluminum B tube mill


Item	Data
Suitable material	Pure aluminum or aluminum alloy 4343/3003/7072 or 4343/3005/7072, with cladding
Applicable B tube size	16~32mm x 1.4~2.5mm x 0.24~0.35mm
Finished B tube outline dimension error**	≤±0.05mm
Suitable tube length	200~1200mm
Applicable aluminum strip coil size	Max. OD:1900mm; ID 290~310mm; max. Weight 500kg
Production speed	Max. 120m/min
Cut-to-length precision	≤ ±0.5mm
Life of cutting blades	More than 0.2 billion cuts
Duration for changing rollers	60 minutes (cassette changing)
Total electric power	About 25kVA
Air source	0.5-0.7MPa, 0.5m3/min
Noise level	≤75dB (@1.5m away from safety barrier)
Lubricant mist collecting rate	More than 85%
Total weight	About 4500kg
Whole line dimension	About 14.3m x 5.1m x 2.2m (including tube stacking system)
