• Model NO.：GH4235
• Motor Hydraulic：0.55
• Coolant Pump：0.04
• Overall Dimension：2000X1100X1500
• Key Word：Band Saw
• Transport Package：Wooden Case
• Specification：CE, ISO9001
• Trademark：UNI-TECH
• Origin：China
• HS Code：8461500090
• Production Capacity：150PCS,Month

Basic Info.

Model NO. GH4235 Motor Hydraulic 0.55 Coolant Pump 0.04 Overall Dimension 2000X1100X1500 Key Word Band Saw Transport Package Wooden Case Specification CE, ISO9001 Trademark UNI-TECH Origin China HS Code 8461500090 Production Capacity 150PCS/Month

Product Description

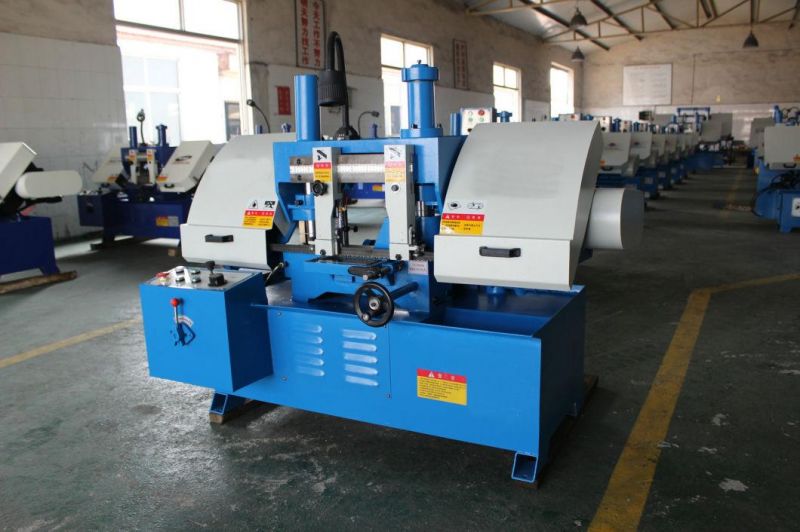

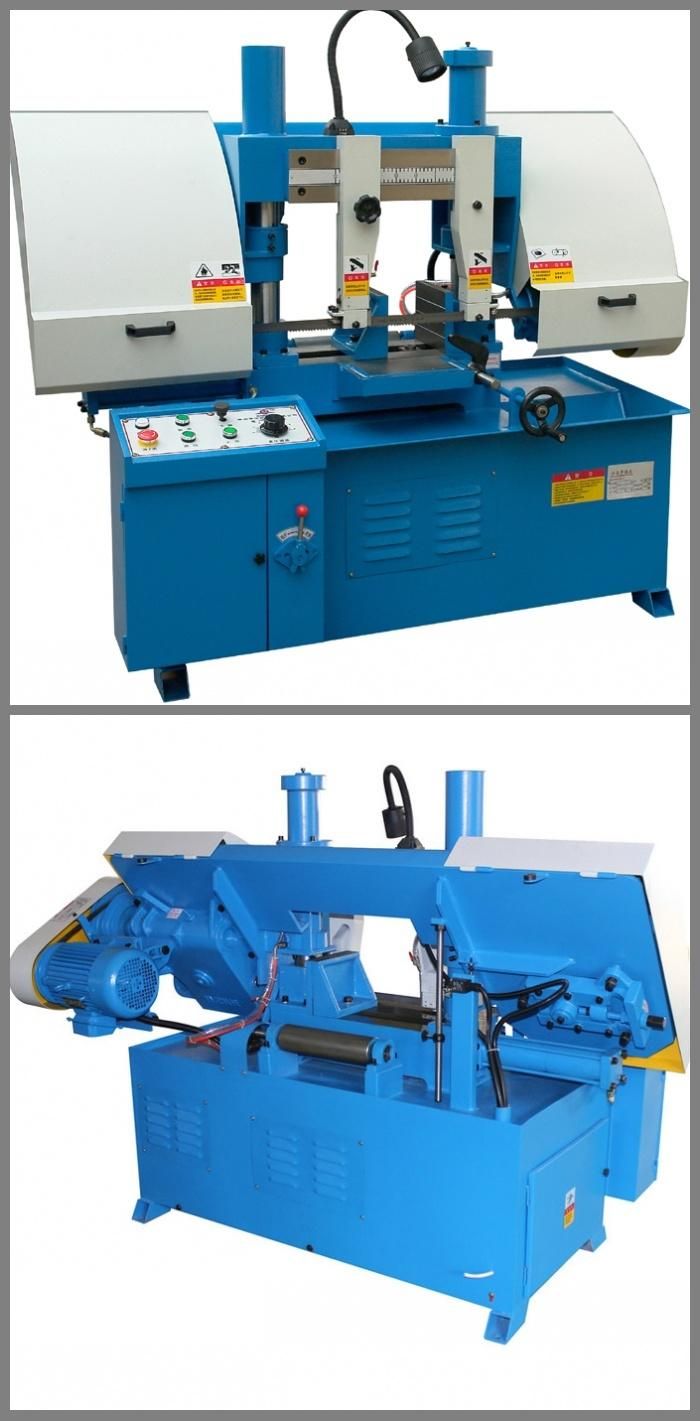

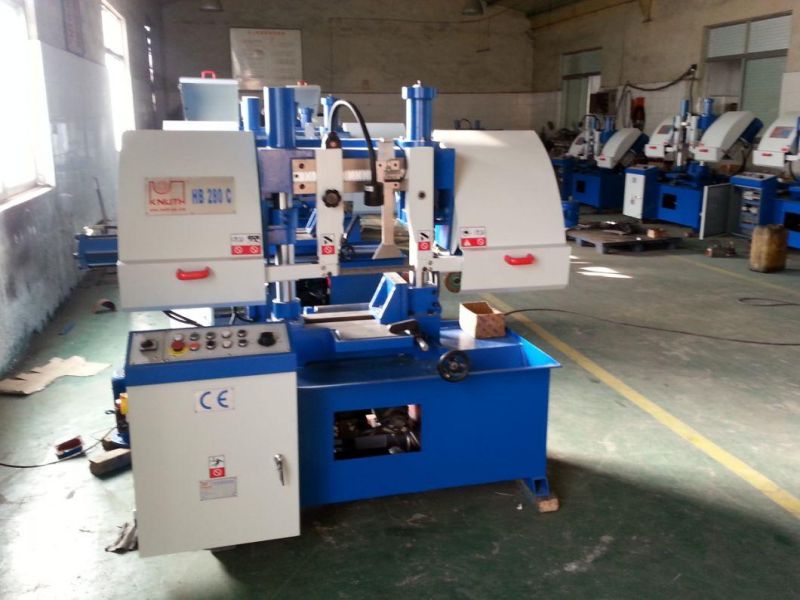

DOUBLE COLUMN Metal Cutting Band Saw (GH4235)



Features of our band sawing machine:
Metal band sawing machine (GH4235)
1. Double column, high stability
2. Hydraulic feed
3. Hydraulic clamp
4. ISO9001 & CE
1. Cutting speedadopts hydraulic control, stepless speed regulation
2. Usefulguide system, to keel the blade can be use with long time.
3. Double columnstructure, steady operations.
4. Steady cutting, high accuracy
5. Manual clamping workpiece, easy operations.

Advantage of our band saw machine:
1. Double column structure, high stability & rigidity
2. Hydraulic control of blade vertical feed speed, stepless speed
3. Hydraulic clamp of workpiece

Optional configuration (need extra money) of our band sawing machine:
1. Hydraulic tensioning of saw blade;
2. Saw blade break protection;
3. Fast drop protection;
4. Automatic hydraulic chip removal device.

Specifications of our band saw:

MODEL NO	Metal cutting band sawing machine (GH4235)
Cutting capacity	350-350X350
Blade size	4115X34X1.1
Blade speed	27 45 69
Clamping type	MANUAL
Main motor power	3
Motor main	0.55
Coolant pump	0.04
Overall dimension	2000X1100X1500

Our service for our band saw machine:
We also would like to let you know our warranty about our new CNC lathe machine as following:

What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
   1) Our quality guarantee time is 12 months since the machine on board
   2) During this period, if the machine break down owing our machine itself quality problem,  we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
  3) If the break down is caused by the mis operation,  we of course will supply you the spare parts, but we have to charge you the costs prices.
