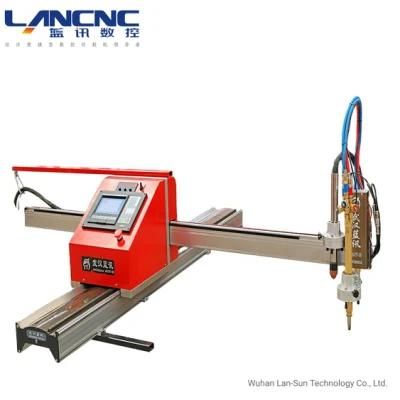

• Model NO.：ZLQ-14
• Power Source：Electric
• Cutting Mode：Plasma Cutting
• Control System：Hypertherm Start-2000 Wuhan LAN Sun-IV Lansun V
• Working Mode：Untouched Arc Striking
• Interface：USB
• Power Supply：Hypertherm Powermax1650 Kliby Fine Focus450 China
• Plasma Generator Power：65A 85A 120A 200A for Much Thickness Cutting
• Material Cutting：Steel Iron Cooper Aluminum Stainless Metal Sheet
• Software Nesting：Fastcam Intergnps Nesting Software
• Cutting Gas：Oxy& Acetylene,Propane
• Certification：CE&ISO
• Transmit Way：Taiwan Imported Ball Screw
• Type：Pipe and Tube Bending Machine
• Application：Machinery & Hardware
• Type for Cutting Machine：CNC Cutting Machine
• Type for Fold-Bending Machine：CNC Cutting Machine
• Automation：Automatic
• Transport Package：Export Wooden Case
• Specification：international standard
• Trademark：Lan-sun
• Origin：China
• HS Code：84569010
• Production Capacity：800 Sets,Year

Technical specification:Cross Beam Length(X axis)1m/1.2mLongitudinal Rail Length(Y axis)1.5m/2m/2.5mEffective Cutting Width (X axis)1m/1.2mEffective Cutting Length (Y axis)1.5m/2m/2.5mCutting ModeFlame only; Plasma only; Flame and PlasmaDrive ModeSingle-sideDrive MethodPinion drive for Y axesFlame Cutting Thickness5-200mmPlasma Cutting Thickness1-60mm (according to the specification of plasma power source)Cutting SpeedFlame: 0-3500mm per minute; Plasma: 0-8000mm per minuteMoving Precision0.01mm per stepPower Source (option)220V 50Hz 500-1000WNesting Software (option)INTERGNPS, FASTCAMCutting GasAcetylene, PropanePlasma GasPressed air, Oxygen, N2
