• Model NO.：TDW
• Customized：Customized
• Condition：New
• Transport Package：Applicable for Shipment
• Specification：TDW96Y-2000,1422×12200
• Trademark：SLJS
• Origin：Shanghai, China
• Production Capacity：100PCS,Year

Basic Info.

Model NO. TDW Customized Customized Condition New Transport Package Applicable for Shipment Specification TDW96Y-2000/1422×12200 Trademark SLJS Origin Shanghai, China Production Capacity 100PCS/Year

Product Description

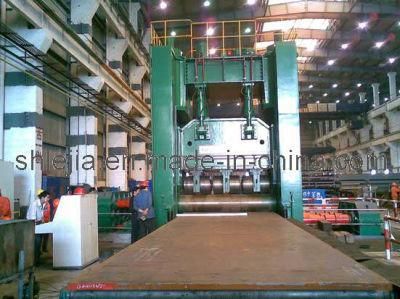

The main machine of pipe calibrating press is one down-stroke type with four columns press. 5 groups lifting transferring rollers and 2 groups lifting rotating rollers are arranged separately in the front and rear of main machine.

When the main machine is equipped with same size of tools in conformity with to be calibrated pipe, the pipe is segmentally transferred the calibrated tools to accomplish pipe longitudinal full length and 360° Circumference of calibration segmentally and successively.

Working principles: Apply the pressure from outside to the pipe to produce a solid flow for pipe material in the chamber of tools so as to achieve precise roundness of pipe.

Model Name	TDW96Y-2000/1422×12200	TDW96Y-3000/1500×12200
Nominal pressure (MN)	20000	30000
Working table length (mm)	1650	1900
Working table width (mm)	1800	2000
Max. distance between lower plane of movable cross-beam and upper plane of low cross-beam (mm)	2120	2600
Max. up moving distance of movable cross-beam (mm)	900	1000
Max. up moving speed of movable cross-beam (mm/min)	60	60
Max. up moving slowly speed of movable cross-beam (mm)	7.8	7.8
Pressing speed (mm/s)	1.85	1.85
Quick down speed (mm/s)	102	102
Pipe diameter (mm)	508~1422	508~1500
power of main motor (Kw)	133	120
Overall dimensions(L×W×H) (mm)	28000×8270×6225	28000×9800×9340
Weight (kg)	168000	235000
