• Model NO.：LJZ-CNC-500X4200
• Model：Ljz-CNC-500X4200
• Power Supply：380V,50Hz or Customized
• Input Power：6.5kw
• Air Pressure：0.5-0.8MPa
• Blade Rotational Speed：3100r,Min
• Saw Blade Specification：D=500mm D=30mm
• Cutting Length：Min.380mm Max.4200mm
• Cutting Angles：90 45 22.5(67.5)Degree
• Machine Size：5700X1750X1990mm
• Weight：1900kgs
• Transport Package：Seaworthy Packing
• Specification：500*4200mm
• Trademark：CNSUNNY
• Origin：China
• HS Code：8475
• Production Capacity：5 sets per month

Basic Info.

Model NO. LJZ-CNC-500X4200 Model Ljz-CNC-500X4200 Power Supply 380V/50Hz or Customized Input Power 6.5kw Air Pressure 0.5-0.8MPa Blade Rotational Speed 3100r/Min Saw Blade Specification D=500mm D=30mm Cutting Length Min.380mm Max.4200mm Cutting Angles 90 45 22.5(67.5)Degree Machine Size 5700X1750X1990mm Weight 1900kgs Transport Package Seaworthy Packing Specification 500*4200mm Trademark CNSUNNY Origin China HS Code 8475 Production Capacity 5 sets per month

Product Description

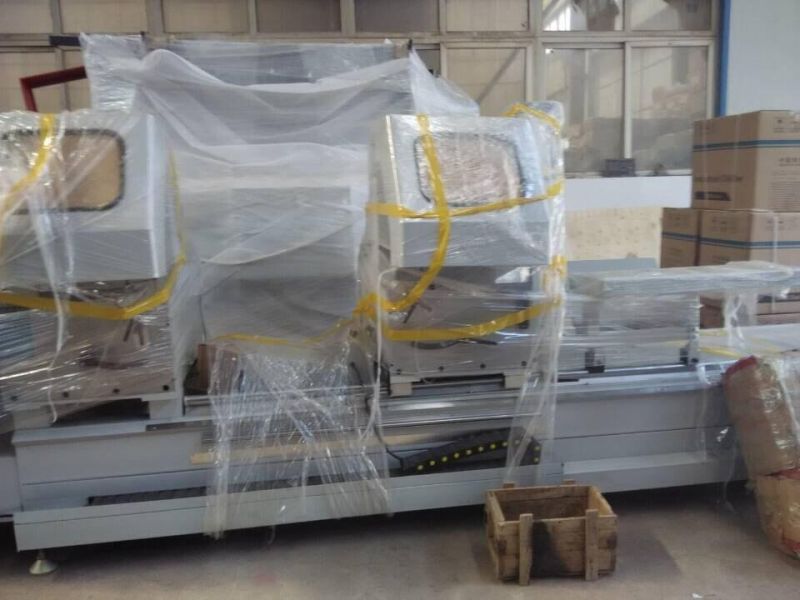

LJZ2-500x4200 CNC Double-head Precision Cutting Saw for Aluminum Profile:

1. Features
Used in aluminum door & window and curtain wall profile cutting. Feature Adopt NC technology, and automatically finish various sizes of profile cutting. Right saw head motion adopts high-lead ball screw motion, with high transmission accuracy, accurate locating, and balanced work. Serial optimized length date can be input at the same time to realize continuous cutting. Mishap auto-induction material pulling rack and right-head compliant material pulling rack give convenient and reliable profile location and clamp. Imported digital display system automatically displays cutting length size and quantity; repeated orientation, high precision, easy to operate. High tool motion precision and high quality cutting due to linear motion pair used in machine guide and feeding device. High precision and good stability due to input linear guide motion pair in feeding device. High precision principal axis special for machine tool makes blade operate stably. Uniform speed feeding and smooth motion due to hydraulic damping cylinder. Double saw head automatically realize cutting angle transformation between 22.5°(standby),45°and 90°profiles. Imported carbide saw blade gives high quality of cutting section and high endurance. Self-opening protective cover makes cutting safe and convenient.

2. Technical Data
Model:                   LJZ-CNC-500X4200
Power supply:            380V/50HZ ro customised
Input power:             6.5KW
Air pressure:             0.5-0.8Mpa
Blade rotational speed:    3100r/min
Saw blade specification:   D=500MM  d=30mm
Cutting length:           Min.380mm, Max.4200mm
Cutting angel:           90°  45°  22.5°  (67.5°)
Outside dimension:      5700x1750x1990mm
Weight(about):          1900kgs
