• Model NO.：CL-668-T-H
• Condition：New
• Powder Coating：Testing Machine
• Brand：Colo
• Model：Intelligent Operation Function
• Voltage：110,220
• Power(W)：50W
• Weight：21kg
• Warrenty：1 Year
• Transport Package：Wodden Case
• Specification：CE
• Trademark：COLO
• Origin：Hangzhou. China
• HS Code：8424899990
• Production Capacity：3000PCS

Basic Info.

Model NO. CL-668-T-H Condition New Powder Coating Testing Machine Brand Colo Model Intelligent Operation Function Voltage 110/220 Power(W) 50W Weight 21kg Warrenty 1 Year Transport Package Wodden Case Specification CE Trademark COLO Origin Hangzhou. China HS Code 8424899990 Production Capacity 3000PCS

Product Description

Manual Powder Spray Guns With Small Hoppers

ccolo-668 intelligent machines in the series is our most popular products .
It has intelligent function and pulse function .Highly recommended by the colo!

Main Features
1 Good for flat coating,re-coating, corner coating, re-coating, pulse coating.
2 Portable type, for small production, or for testing use, powder hopper size: D20xH30cm.
3 It hot selling to East European,South-American and South-Eastern Asia ,more than 30 countries
This machine is for laboratories and product development departments.

MODEL	CL-668-T-H
Gun Weight	500G
Rated output voltage	24VDC
Input voltage	-200KV
Maximum output current	180Ua(max)
Maximum output voltage	0-100K(adjustable)

Pneumatic data of the manual gun

Maximum powder injection	600g/min
Polarity	negative
Maximum input-air pressure	10kg/cm
Optimum input-air pressure	6kg/cm
Optimum input-air pressure	4kg/cm
Maximum water vapor content or compressed air	1.4g/N m3
Maximum oil vapor content of compressed air	0.1ppm
Maximum compressed-air consumption	13.2 m3/h
Temperature range in use	-10 ºC+50 ºC

Gun and the gun cable and hoppers:


Structure and Connection parts of CL-668-T-H


1	Control unit
2	powder coating gun
3	Fludization hopper (10L)
4	Injector pump
5	Cleaning and dosage pipe
6	Ground connection wire
7	Complete set gun spare parts
8	Power wire

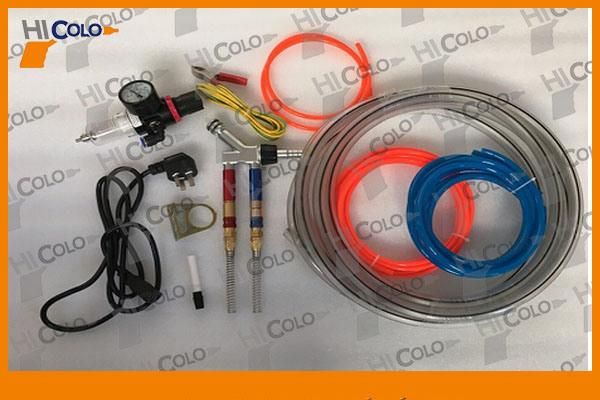

all parts image pic of the machine:air pipe grond wire powder pump etc.


The host can matched with different hoppers

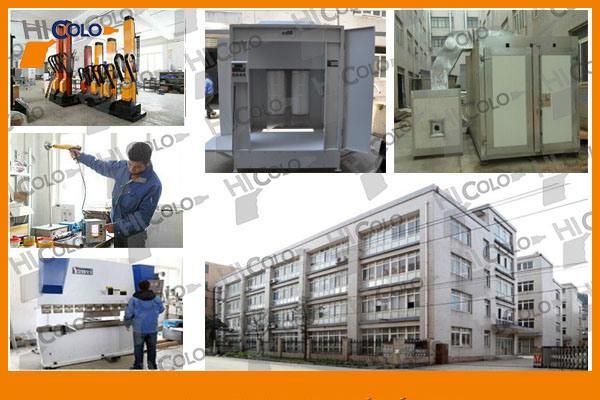

Factory details
COLO have been working in the powder coating industry for over 10 years. we manufacture powder
coating machinery products are the culmination of the knowledge and expeience we have gained
over the many years we have been working with our customers in the powder coating industry.
