• Model NO.：HJ-A00237
• Spinning Strength：General Spinning
• Pressure Supply Type：Hydraulic Pressure
• Metal Material：Steel
• Finished Product Shape：Coil
• Name：Laying Head & Pinch Roll
• Color：as Clients′ Requirments
• After Sale Service：Supplied by Seller
• Warranty：1 Year
• Finished Size：5.5-16mm
• Transport Package：Seaworthy Packing
• Trademark：hangji
• Origin：Shaanxi, China
• Production Capacity：300000-600000tons

Basic Info.

Model NO. HJ-A00237 Spinning Strength General Spinning Pressure Supply Type Hydraulic Pressure Metal Material Steel Finished Product Shape Coil Name Laying Head & Pinch Roll Color as Clients′ Requirments After Sale Service Supplied by Seller Warranty 1 Year Finished Size 5.5-16mm Transport Package Seaworthy Packing Trademark hangji Origin Shaanxi, China Production Capacity 300000-600000tons

Product Description

Equipment Application

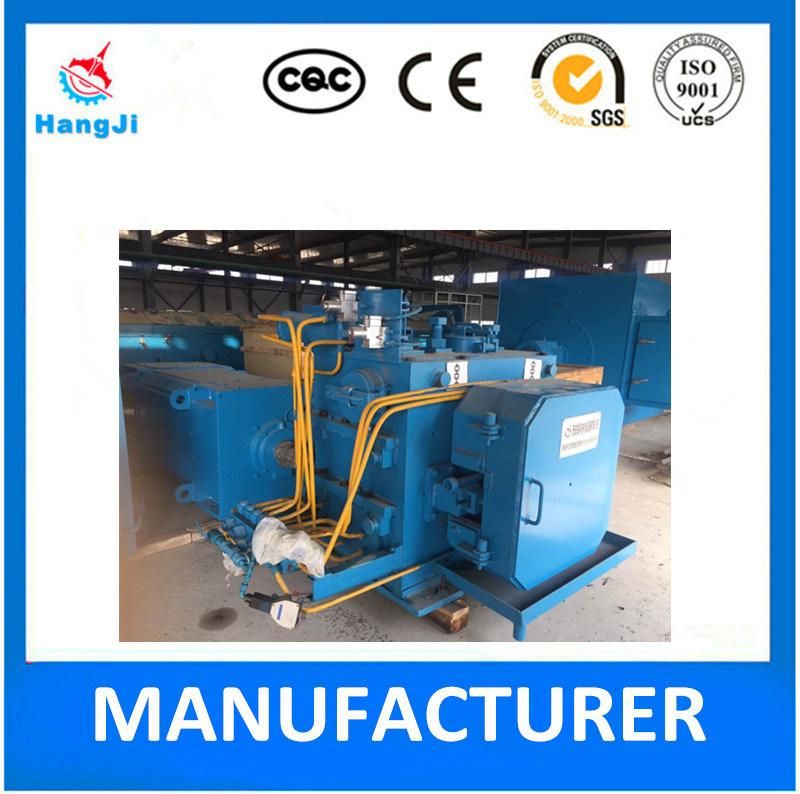

The pinch roll and wire discharger(laying head) are arranged after water cooling plant of finishing roll. The pinch roll is the device for steel line rolling production which mainly used for gripping rolled piece feeding into the wire discharger. Wire discharger for transportation of heliciform gripping rolled piece which diameter is 1080mm to the scattered coils cooling roll table before coil collector station.
Construction features of pinch roll & wire discharger(laying head):
Pinch roll and wire discharger are closely adjacent semi-open system. Pinch roll is arranged before entrance of wire discharger and transportation of gripping rolled piece into wire discharger. Then wire discharger will transform the gripping rolled piece to heliciform rolled piece which diameter is 1080mm and flat the rolled out to th the scattered coils cooling roll table.

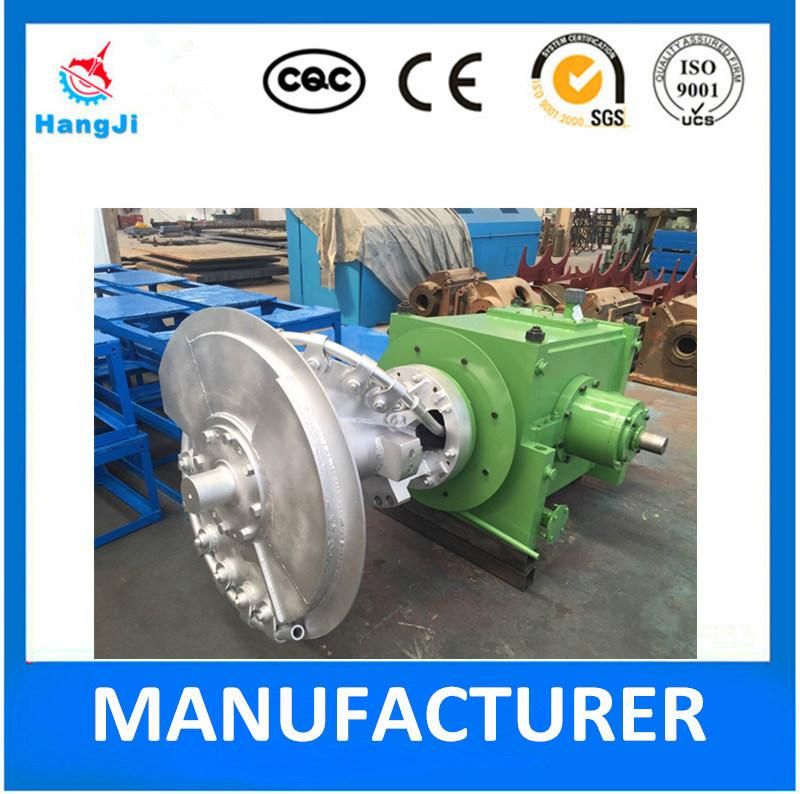

Wire discharger:
It is the vertical cantilener structure and the center line slopes down ten degrees. It consists of spinning pipe which is installed in the rotation dabber and gearing. There is one DC adjustable-speed motor that could drive the rotation dabber through a pair of bevel gear wheel. Spinning pipe can spin regular wire coil on the basis of setting revolving speed.
Wire discharger rotation dabber consists of spinning head and hollow shaft. Spinning head is usede to fixation spinning pipe and hollow shaft. And the hollow shaft would been drived by bevel gear in the driving box. There is a pipe among the internal of bevel gear. And there is water-cooling drivepipe between the pipe and hollow shaft. Water-cooling drivepipe is used for cooling the pipe and it will protected the bearings of the hollow shaft to keep away from high temperature of rolled piece.
Wire discharger drive gear box used welding structure. The gear and bearings used thin oil central lubrication process.
Safety guard is the cylinder structure and the spinning head is installded in it. Its incline design is for the security. Top half of safty guard can been opened by the air cylinder for changing the spinning pipe but its must been closed at regular work. It should been processed static balancing test for all of the equipments with rotation dabber. Then we can increase or decrease the weight of them on basis of testting. After static balancing test it should been processed dynamic balance test which measure datas are: Testting rotate speed: 1900r/min, dynamic balance quality: G2.5. There are two test points in the front and back bearing cap when the wire discharger is assembled you could test vibration data on the two points. And the test vibration masure data is 5mm/s.
