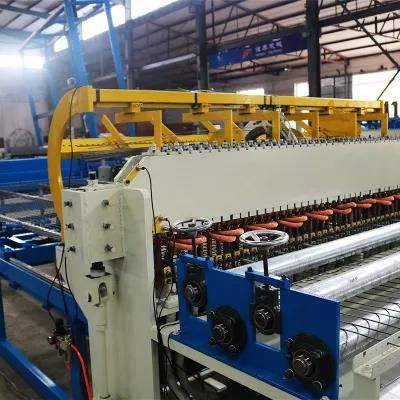

Wire Mesh Welding Panel Machine

Model

HT-1200  HT-1500  HT-2000  HT-2500  or Customized

Wire Diameter

2.0mm 3.0mm 4.0mm 5.0mm 6.0mm

Width of Mesh

1.2m  1.5m  2.0m  2.5m  or Customized

Mesh Size

50x50mm - 200x200mm  or Customized

Line Wire Feeding

From coil

Cross Wire Feeding

 Pre-straightened & pre-cut

Number of Electrode

25  31  41  51  or Customized

Welding Speed

60-90 times/min

Voltage

380V 50HZ 3Phase  (can customized)

Transformer

85KVA, 125KVA, 150VA   3.0KW-5.5KW

Overall Size

5000X3500X1700mm

Weight

2.8T - 4.5T

Commercial Terms

Payment

T/T (30% in advance,70% payable before loading)

Minimum order quantity

1 set

Delivery time

30 days after we receive the deposit

Packing

Plastic bag

Container

20 Feet X1

Guarantee time

One year

Advantage:

1. The main frame is made of thick steel plate and welded steel, so that the main structure is more solid and compact.

2. Weft wire into the body structure is new, they used sealed structure into the wire institutions and made the weft wire length more accurate and without cutting edge. The agency has a high degree of automation, compact structure and reasonable layout.

3. Pull the net with a flexible rod and grid positioning device, the grid fine-tuning is easy, the grid size accuracy is higher.

4. The variety of weldable mesh varieties. As the grid adjustment related parts are adjustable, to the user has brought flexibility and convenience, can be welded a variety of mesh products.

5. Welding using a new type of high efficiency welded wire mesh transformer, voltage adjustment range, can be divided into eight levels, expanding the scope of welding wire diameter.

6. Welding power electronic control system using synchronous control technology, welding time and sub-control welding are composed of digital integrated circuits, high precision and stability control.

7. In order to facilitate the quota management and control, set the electronic counter-type network length CNC device, can control the cutting machine to cut. It is accurate and convenient to manage the length of the mesh.

Contact us
If you need to buy wire mesh making machine for increasing production or you want to start new business for wire mesh making,welcome discussing with us.

Below information is needed for quick quotation

Dear sir/madam, if you are intrested in our machines, you can inquiry me with Product parameters as following, and I will give the  reasonable price.

1. Wire diameter: ________mm ( adjustable )
2. Mesh Size: ________ mm²   ( adjustable )
3. Mesh width: ________ mm ( customized )
4. Industrial voltage : ________380V 50HZ ( customized )
5. Other requirements: .________

Welcome to inquiry
Please feel free to send us inquiry if you are interested in our machines
