• Model NO.：Y81T-2000
• Warranty：1 Year
• Transport Package：Host Nude Packing, Parts Can Be in Wooden Cases
• Specification：CE,ISO9001: 2000
• Trademark：Tianfu
• Origin：Jiangsu China
• HS Code：8462919000
• Production Capacity：200 PCS,Year

Basic Info.

Model NO. Y81T-2000 Warranty 1 Year Transport Package Host Nude Packing, Parts Can Be in Wooden Cases Specification CE/ISO9001: 2000 Trademark Tianfu Origin Jiangsu China HS Code 8462919000 Production Capacity 200 PCS/Year

Product Description

Y81T-2000 Hydraulic Scrap Metal Aluminum Packing Machine(CE ISO)
1. Applications:
Y81 series of hydraulic metal packing machine is applicable in steel plants, recycling companies, ferrous & non-ferrous smelting industry to press metal scraps(steel, copper, aluminum, stainless steel, discarded automobiles)into acceptable fumace charges(shapes: Cuboid; Cylinder or octagon), so as to reduce cost of transportation, to increase speed of fumace charging.

2. Features:
1)Hydraulic drive for all machine types, manual valve control or PLC control.
2)Bale-discharging: Turn-out, push-out, forward-out or manual discharging. Equipped for power.
3)No footing bolts needed in installation; Diesel engine can be equipped or power
4)Baling force 10 grades from 63 to 400 tons; Productivity from 4 to 40 tons per shift(8 hours)

3. How to choose your baler correctly:

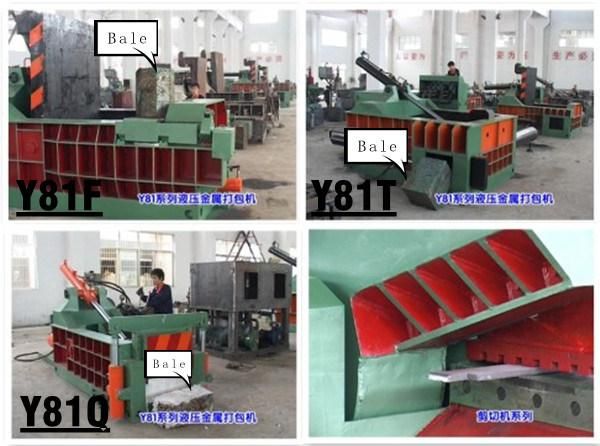

1) If your scrap material is scrap metals, non-ferrous metals, color metals we recommend Y81/F series metal baler to you, which has high pressing force with bales tilting out design.
2) If your scrap material is lightweight metals, such as scrap aluminium, scrap copper, tin cans,
Buckets, we recommend our Y81/Q series metal baler to you, the bales will be pushed from
Baler forward.
3) If your scrap material is heavy metals, then we recommend our Y81/T series metal balers to
You, the bales will be pushed out from the side of the metal baler.

4. Service:
1) Lifelong maintenance and considerate technical support!
2) Any problem before or after delivery, you could find and talk with us anytime anywhere.
3) Technicians can be sent to abroad, door to door service.
4) Video / CD of test running and installation, User's Manual.
5) Complete parts & tools in box sent with machine.
We sell our machines to over 50 countries. I am sincere to invite you come to my factory. I can show you the machine operation in stock, if satisfied, you can get the good quality machine

If you have any question, please feel free to contact us

5.Main models for reference:

Model	Nominal Force (KN)	Material box size(L*W*H) (mm)	Bale Size (mm)	Bale Density (kg/m 3 )	Capacity (kg/h)	Cycle Time (s)	Power (kw)	Bale Discharging Operation
Y81-630	630	1000*600*500	(180-250)*200*200	> 1800	500-1000	90	7.5	Over packet, manual
Y81-1000	1000	1000*600*500	(200-300)*230*230	> 1800	1000-1200	120	11	Over packet, manual
Y81/T-1000	1000	1000*600*500	(200-300)*230*230	> 1800	1000-1200	120	15	Push, manual
Y81-1250	1250	1200*700*600	(150-360)*300*300	> 1800	1000-1500	120	15	Push, manual
Y81/T-1250	1250	1200*700*600	(250-400)*300*300	> 1800	1500-2000	80	18.5	Push, PLC
Y81Q-1350	1350	1400*600*600	(240-450)*600*240	> 1800	1800-2500	80	22	Before packet, manual
Y81-1600	1600	1600*1000*700	(400-600)*400*400	> 1800	2000-3000	150	22	Push, manual
Y81/T-1600A	1600	1600*1000*800	(400-600)*400*400	> 1800	2000-3000	150	22	Push, manual
Y81/T-1600B	1600	1600*1200*800	(400-600)*400*400	> 1800	2000-3000	160	30	Push, manual
Y81-2000	2000	1600*1200*800	(400-600)*400*400	> 1800	2500-4000	160	30	Push, manual
Y81/T-2000A	2000	1600*1200*800	(400-650)*400*400	> 1800	2200-4000	160	30
Y81/T-2000B	2000	1800*1400*900	(400-700)*450*450	> 1800	2500-4500	160	37
Y81-2500	2500	2000*1400*900	(400-700)*500*500	> 1800	3500-5000	160	37
Y81/T-2500A	2500	2000*1400*900	(400-700)*500*500	> 1800	3500-5000	160	44	Push, PLC
Y81/T-2500B	2500	2000*1750*1000	(450-800)*500*500	> 1800	3500-5000	160	60
Y81-3150	3150	2000*1400*1000	(400-700)*500*500	> 1800	3500-5000	160	60
Y81/T-3150	3150	2000*1600*1200	(450-700)*550*550	> 1800	4000-5000	160	66	Push, PLC
Y81/T-4000A	4000	2000*1600*1200	(450-800)*550*550	> 1800	5000-6000	160	74	Push, PLC
Y81/T-4000B	4000	2600*2000*1200	(500-1000)*600*600	> 1800	5000-7000	180	90	Push, PLC
Y81/T-4000C	4000	5000*2000*1200	(500-1200)*700*700	> 1500	8000-10000	200	135	Push, PLC
Y81/T-6000	6000	3200*2000*1200	(500-1200)*700*700	> 1800	7000-9000	180
