C Purlin Forming Machine

Botou Golden Integrity Roll Forming Machinery Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Free Forging
  • Power Source：Electric
  • Feature：Automation
  • Certification：ISO9001, CE
  • Warranty：18 Months

Base Info

  • Model NO.：80-300
  • Customized：Customized
  • Advantage：Easy to Maintenance
  • Condition：New
  • Material：PPGI,Gi
  • Thickness：3mm,Min
  • Transport Package：According to Customer′s Requirement
  • Specification：CE and ISO9001: 2008ukas
  • Trademark：jcx
  • Origin：Hebei China
  • HS Code：84552210
  • Production Capacity：40sets Per Month

Description

Basic Info.

Model NO. 80-300 Customized Customized Advantage Easy to Maintenance Condition New Material PPGI/Gi Thickness 3mm/Min Transport Package According to Customer′s Requirement Specification CE and ISO9001: 2008ukas Trademark jcx Origin Hebei China HS Code 84552210 Production Capacity 40sets Per Month

Product Description

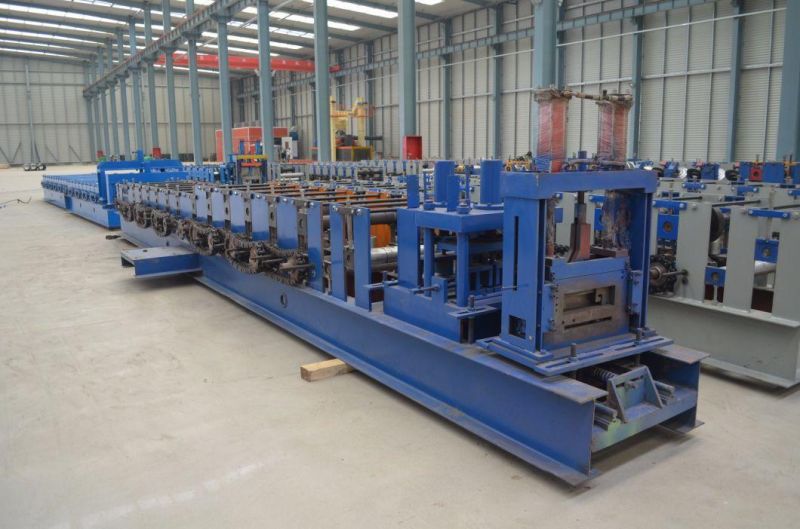

C shape praline forming machine can produce many sizes of C shape purline. The whole line mainly consists of uncoiler and its base, coil sheet flattening equipment, C shape forming system, punching equipment, post cutting equipment, hydraulic station, and controlling system.
C Purlin Forming Machine

Main Technical Specification:

1. Passive leak: Manual up tight, passive leak
2. The bearing of decoiler: 5T
3. Rack: The thickness of middle plate is 20mm which adopting 400H steel welding
4. The form of Forming Machine-driven feeding frame: Slidewise roller
5. Forming Machine Shape: Wall-type chain drive
6. Shaft Diameter: 80 mm solid shaft
7. Chain: 2 inch
8. Forming Machine Motor Reducing Qear drive
9. Forming Machine line speed: 12-15m/min
10. Forming Machine Tracks Number: 7 roller flattening, 12 roller molding
11. Roll Material: Bearing steel
12. Roll heat treament: HRC58° -60
13. Hydraulic station motor: 15kw
14. Hydraulic Oil Pump: Tailwan JinYong Gear pump
15. Cutting method: Flying saw cut, mesopore is set freely
16. Flying saw motor: 15KW
17. Rolling thickness: 1.5-3.0 mm
18. Accuracy of fixing length: ± 2mm
19. The computer is adopted with PLC, Japan's Panasonic

Usually, our roll forming machine includes hydraulic decoiler, sheet
Guiding equipment, pre-cutting device, film device, roll forming system,
Cutting equipment, hydraulic station, electric controlling system and
Supporter.

Working flow:

Decoiling the sheet, sheet guiding, roll forming, measure length, cutting the panel, panel to supporter
