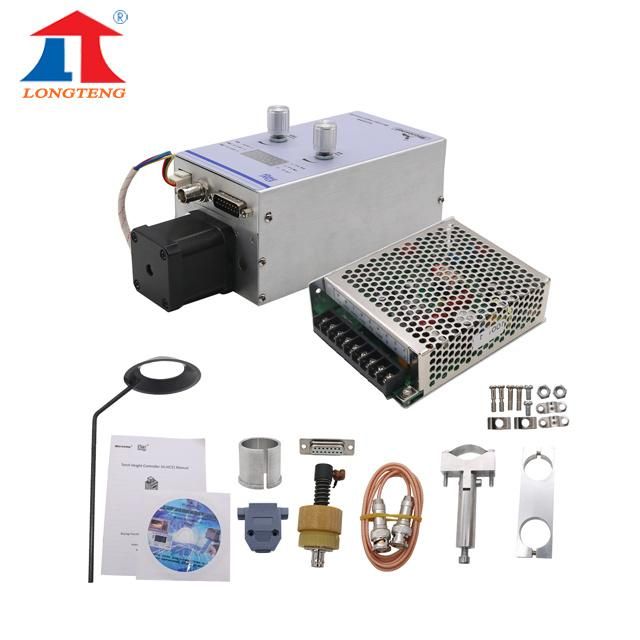

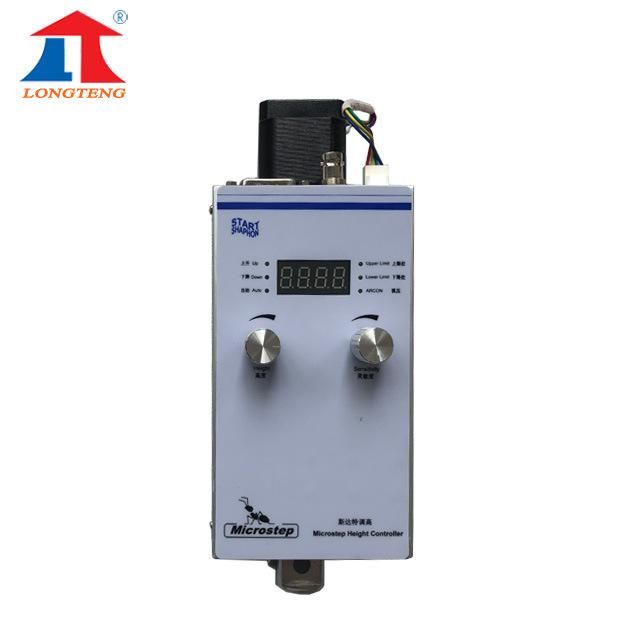

Flame and Plasma Torch Height Controller Sh-Hc31 for CNC Cutting Machine

Wuxi Longteng Welding and Cutting Equipment Co., Ltd.
  • Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
  • Automatic Grade：Automatic
  • Product Name：Torch Height Controller
  • Weight：2kg
  • Gas Service：Acetylene,Fuel Gas
  • Model：Sh-Hc31

Base Info

  • Model NO.：SH-HC31
  • Transport Package：Carton, Wooden Case
  • Specification：CE, ISO
  • Trademark：Longteng
  • Origin：Wuxi, China (Mainland)
  • HS Code：8515900000
  • Production Capacity：50000 PCS,Year

Description

Input Voltage

DC 24V±2 V

Rated Current

3 A

Applicable motor

17/23 HS series of stepper motors

Manual adjustment range

0-100 mm

Automatic height control range

2 -30 mm

Adjusting speed of automatic height control

3000 mm/min (30 ° slope)

Control precision

±0.5 mm

Dimensions of box body

(155 × 87 × 71) mm

Total weight of capacitance height control

1.990kg

Total weight of arc voltage height control

1.645kg

Detection system

capacitance height detector and arc voltage height detector
