• Model NO.：COLO-S-2152
• Warranty：12month
• Transport Package：as Export Standard
• Specification：Internal Size: 1400width x?1800?height x?1000 dept
• Trademark：COLO
• Origin：China
• Production Capacity：50set,Month

Basic Info.

Model NO. COLO-S-2152 Warranty 12month Transport Package as Export Standard Specification Internal Size: 1400width x?1800?height x?1000 dept Trademark COLO Origin China Production Capacity 50set/Month

Product Description

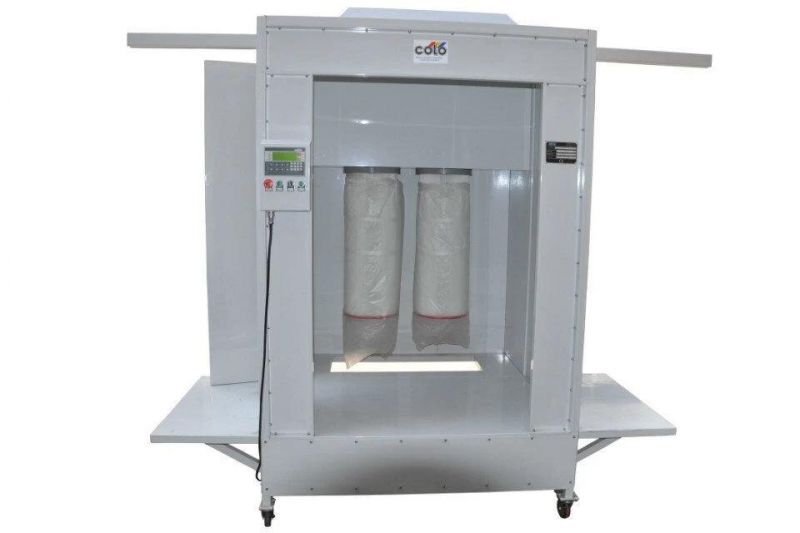

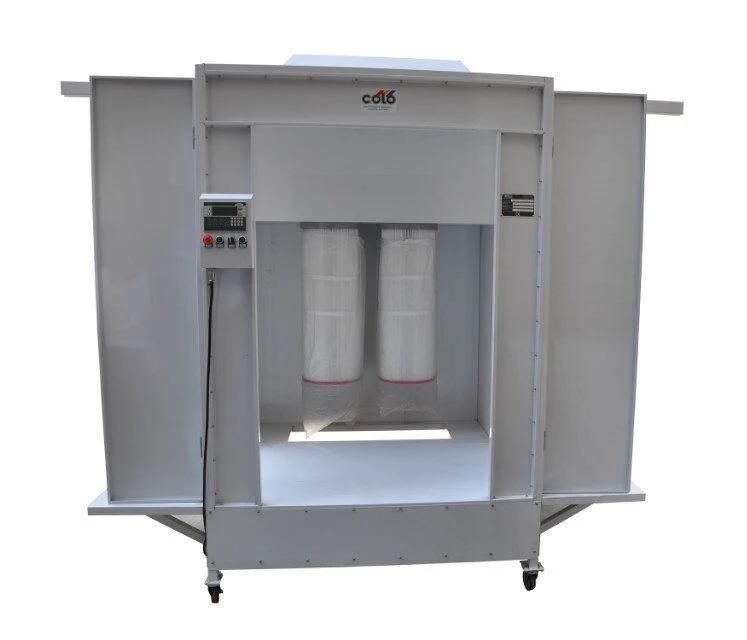

Closed-drive-thru Powder Paint Spray Booth
COLO-S-2152 Tunnel BoothThis booth is having side doors & article holding track entry & exit is from side through doors. By this way material handling is systematic i.e. from one side entry, coating & then exit from other side. If for spraying two side, could make 2 operation doors.
In exceptional case, if article is very long then a door can be kept open & coating is done step by step by moving article slowly. In this case recovery will be reduced.

Excellent Features
1.  Cartridge filter style powder coating booths
2.  Low compressed air consumption and noise level
3.  Good lighting system
4.  Open design making cleaning a simple operation
5.  Powerful extraction guarantees a safe and clean working environment
6.  Booth with a two sides door, can be used in line coating


Model	Colo-2152
Booth Type	Closed-drive-thru
Operator dimensions	1400widthx1800heightx1000depth
Overall dimensions	2500widthx2300heightx1500depth
Power Supply	380V(50-60HZ)
Nominal power	3.5kw
Filters	Polyester
Filter Count	2
Filter Cleaning System	pneumatic
Machine Weight	450kg
Warranty	12 months

When you need to coating the big workpiece you open the door ;
If coating samll size metals ,  closed the door and paint.

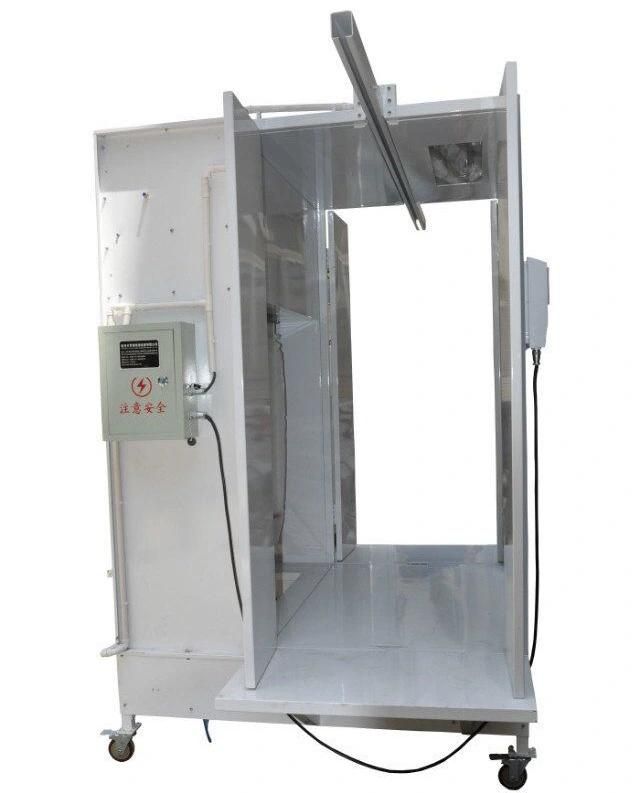

Sides door open



Technical Parameters
Construction: The booth walls and roof are made of galvanized steel.The booth utilizes a single panel design.
Lighting: The spray enclosure includes roof-mounted light fixtures,These fixtures are mounted on special panels that include factory-provided reinforcement.
Exhaust system: The booth uses either one or two floor mounted exhaust units. The exhaust unit is constructed of primarily galvanized steel.
Control Panel: The booth is operated via PLC control panel. The control panel allows the operator to stop and start the exhaust fan and turn the lights on and off.
