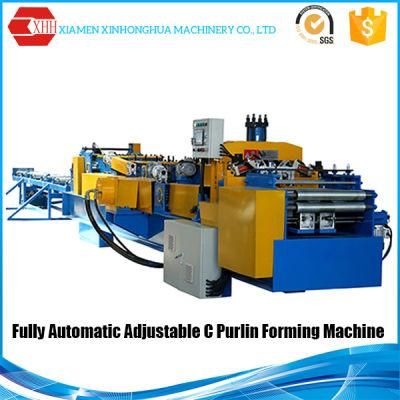

Automatic Z Galvanized Light Keel C Channel Purlin Forming Machine
Xiamen Xinhonghua Machinery Co., Ltd.- Type：Rolling Machine
- Power Source：Hydraulic Pressure
- Feature：Automation
- Warranty：12 Months
- Customized：Customized
- Advantage：Use Widely
Base Info
- Model NO.：C65-250
- Condition：New
- Hydraulic Power for Uncoiler：1.5kw
- Hydraulic Power for Punching：5.5kw
- Air Power for Punching：1.5kw
- Hydraulic Power for Forming Cutter：2.2kw
- Forming Steps：13+3 Steps for Reshaping
- Processing Speed：10-25m,Min
- Forming Thickness：1.2-3.0mm
- Height of Purline：30-75mm
- Width of Purline：60-250mm
- Name：C Steel Profile Forming Machine
- Transport Package：Standard Packed for Export
- Specification：6tons
- Trademark：XHH
- Origin：China
- HS Code：8455229090
- Production Capacity：20sets,Month C Steel Profile Forming Machine
Description
Size
5000*900*1400mm;
Weight
5000KGS
Hydraulic Power for Uncoiler
1.5KW
Hydraulic Power for punching
5.5KW
Air Power for punching
1.5KW
Hydraulic Power for forming cutter
2.2KW
Forming Steps
7 steps for reshaping
Processing Speed
5-8m/min
Voltage
380V/50HZ/3PH
Forming Thickness
2.0mm
Height of Purline
25mm
Width of Purline
40mm
2)Main Accessories:
(1) .Main Forming Machine;
(2) .5 Ton Manual Uncoiler;
(3). Hydraulic Punching Device;
(4) .Hydraulic System;
(5) .PLC Computer Controlling System With Touch Screen; (Brand:Delta or Schneider,or
Siemens,choose any one)
(6) .Hydraulic Forming Cutter;
(7) Tools;
(8) Operation Manual.
