Low MOQ Barbed Wire Netting Machine (MANUFACTURER) /Barbed Wire Machine for Uganda
Wuxi Shenda Nail Machinery Factory- After-sales Service：Engineer Traning Service
- Warranty：1 Year
- Transport Package：Suitble for Shipping
- Specification：3100*1130*1500mm
- Trademark：Shenyida
- Origin：Wuxi China
Base Info
- Model NO.：CSB
- HS Code：8463300000
- Production Capacity：100PCS,Month
Description
Company Information
Our company professional manufactures nail making machine, wire drawing machine and the accessory equipments since 1995
Capacity 1000pcs per year, customers cover Asia, middle East, Africa and latin-America ariea.
Our company has CE, ISO9001 certificate and our engineer arrange for machine accommodation in customer's factory.
We can supply high quality barbed wire netting machine which can netting the dia of the screen wire from 2mm to 3mm.
26 years machine manufacturer experience.12 years exporting experiance with more than 200 companises customers.
Machine specification
There are total 3 kind barbed wire making machine

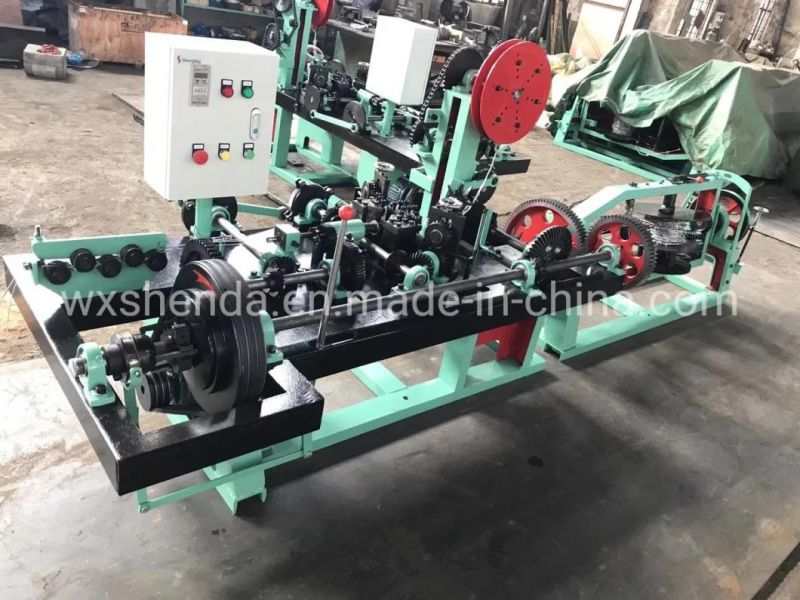

1.Double wire barbed wire making machine
2.Reverse twist barbed wire making machine
3.Single wire barbed wire making machine
Our barbed wire machine with control panel which make the record for the barbed wire and can our machine featured with simple
Struction,Easy operate,Durable .The finished barbed wire popular used in farming,highway,railway and the area need protection.
1.Double wire barbed wire making machine
| No. | Description | Unit | Specification |
| 1 | Motor | kw | 3 |
| 2 | Main drive shaft speed | r/min | 402 |
| 3 | Unit wire diameter | mm | 2.2-3.0 |
| 4 | Barbed wire diameter | mm | 1.8-2.2 |
| 5 | Barbed pich | inch | 3,4,5 |
| 6 | Twist Number | pcs | 3.5 |
| 7 | Theoretical capaticy | Kg/h | 70 |
| 8 | Total weight | kg | 1200 |
| 9 | Dimension of main part | mm | 2000*1500*1500 |
2.Reverse twist barbed wire making machine
| No. | Description | Unit | Specification |
| 1 | Motor | kw | 2.2 |
| 2 | Main drive shaft speed | r/min | 355 |
| 3 | Unit wire diameter | mm | 1.6-2.8 |
| 4 | Barbed wire diameter | mm | 1.6-2.2 |
| 5 | Barbed pich | inch | 4,5 |
| 6 | Twist Number | pcs | 7 |
| 7 | Theoretical capaticy | Kg/h | 40 |
| 8 | Total weight | kg | 1000 |
| 9 | Dimension of main part | mm | 3000*1000*1150 |
3.Single wire barbed wire making machine
| No. | Description | Unit | Specification |
| 1 | Motor | kw | 2.2 |
| 2 | Main drive shaft speed | r/min | 355 |
| 3 | Unit wire diameter | mm | 2.2-3.0 |
| 4 | Barbed wire diameter | mm | 1.8-2.2 |
| 5 | Barbed pich | inch | 4,5 |
| 6 | Theoretical capaticy | Kg/h | 40 |
| 7 | Total weight | kg | 4000 |
| 8 | Dimension of main part | mm | 3100*1130*1500 |
Machine packing &delivery
Contact us:
Ms Lina---Sales Manager
Wuxi shenda nail machinery factory
No.15,Huafa Road,Dongting Town ,Wuxi City,Jiangsu Province,China
