Vertical Type 6.5-2mm Wire Drawing Machine

Wuxi Shenda Nail Machinery Factory
  • Type：LW Pulley Type Metal Drawing Machine
  • Usage：Wire
  • Metal Material：Steel
  • Outlet Diameter：2.8-0.8mm
  • Max.Inlet Wire Dia.：2.8mm
  • Block Dia.：350mm

Base Info

  • Model NO.：Z94
  • Max. Number of Block：15
  • Certification：REACH, ISO
  • Condition：New
  • Transport Package：Suitble for Shipping
  • Specification：1830*1300*1900mm
  • Trademark：Shenyida
  • Origin：Wuxi China
  • HS Code：8463300000
  • Production Capacity：100PCS,Month

Description

TypeLW-1-6/350Material intensityδb≥140kg/mm2Max diam of material2.5mmMin diam of material0.75mmDiam of block1-6/350Max average condensation21%Total condensation78%Max.speed of block200m/minTotal power7.5-11kwWeight1000kgOveral size1400x800x1500mmVertical Type 6.5-2mm Wire Drawing Machine

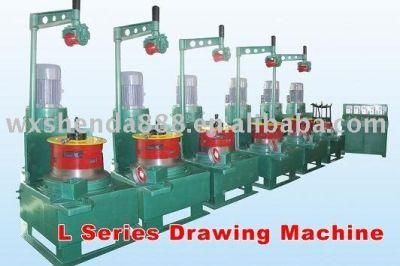

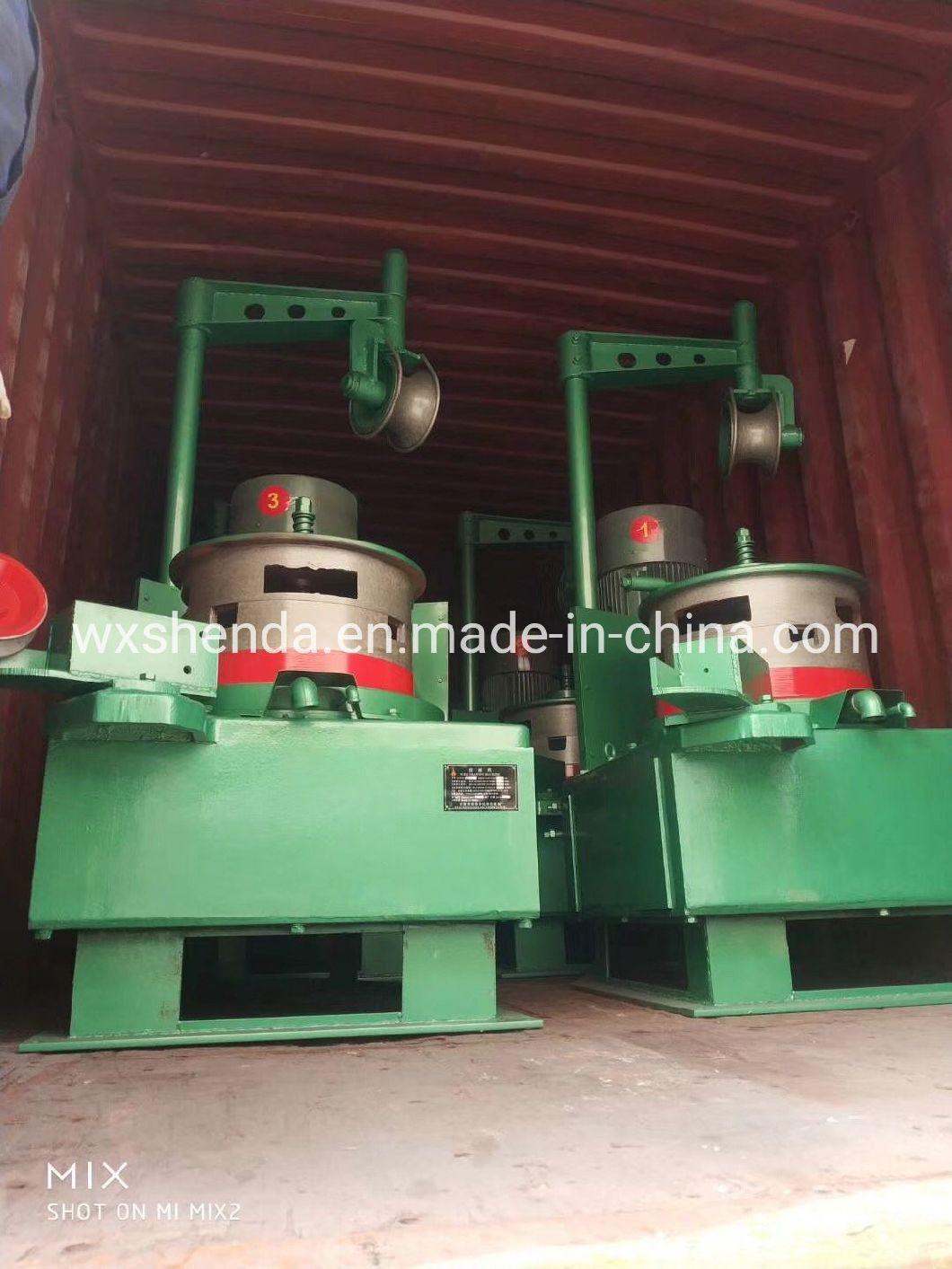

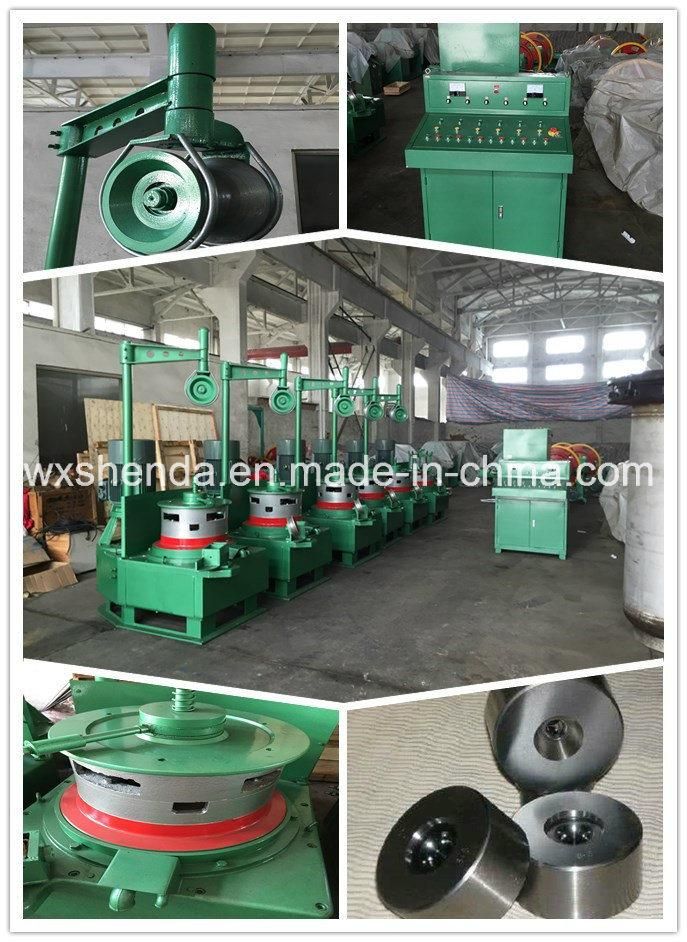

 Vertical type wire drawing machine for wire from 6.5-2mmVertical Type 6.5-2mm Wire Drawing MachineWire drawing accessory equipment

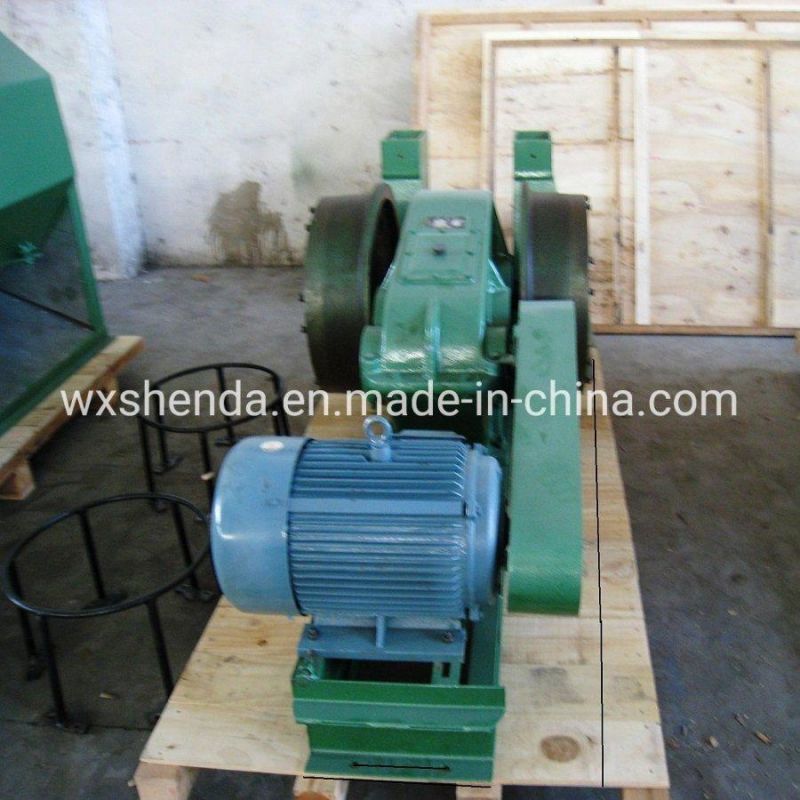

1.wire shucking machine

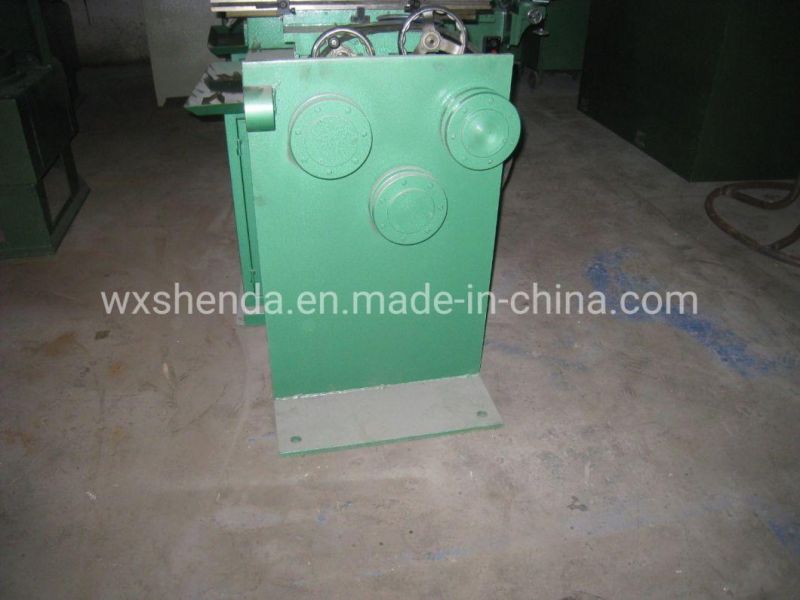

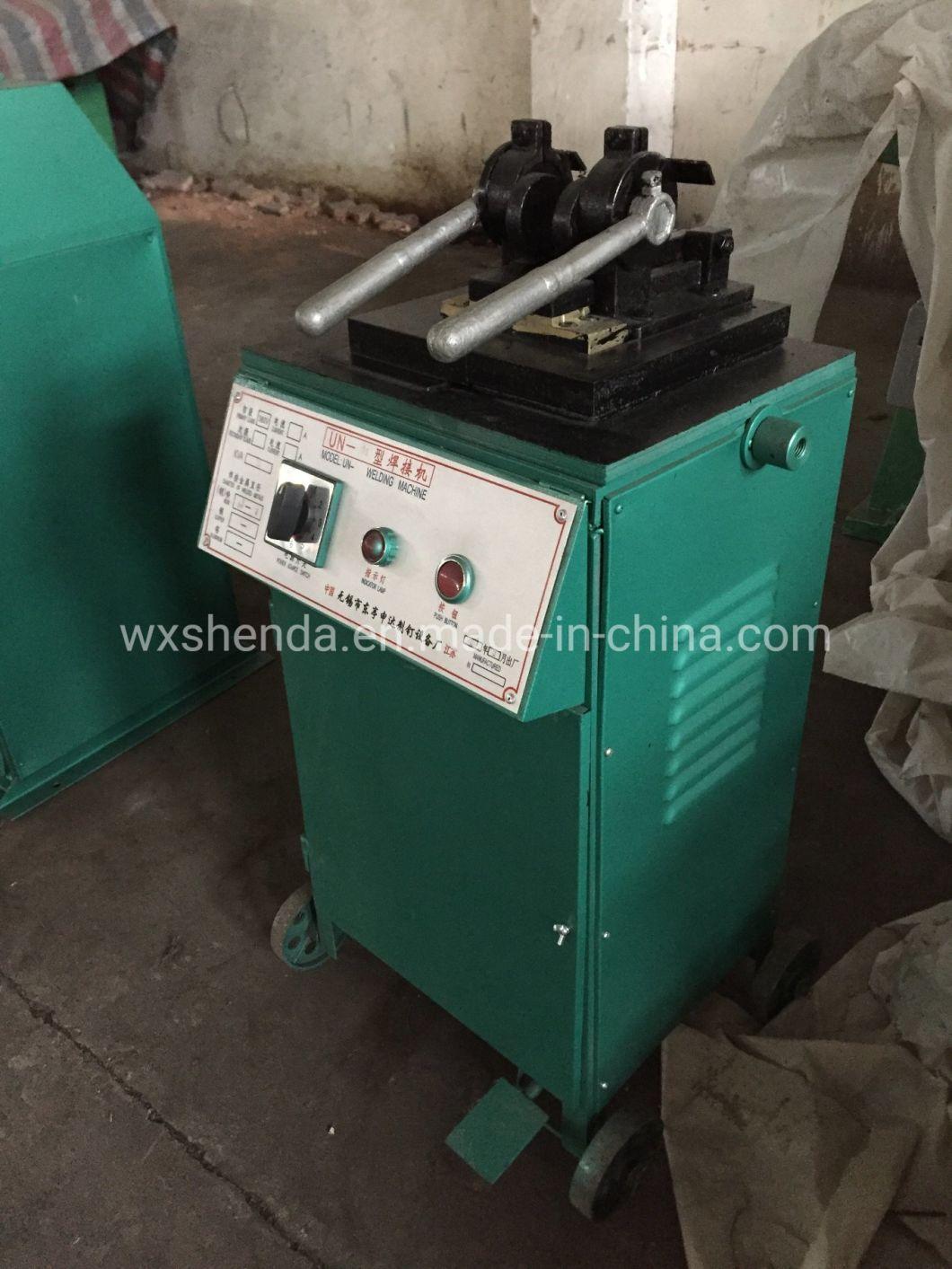

Vertical Type 6.5-2mm Wire Drawing Machine2.Wire sharpening machinethe welding rangepowerUN-1-4copperΦ0.8-Φ3ironΦ1-Φ43kwUN-2-6.5copperΦ4ironΦ2-Φ6.55kwUN-3-8copperΦ5ironΦ3-Φ87kwUN-4-10copperΦ6ironΦ4-Φ1010kwUN-10-14copperΦ8ironΦ10-Φ1425kwVertical Type 6.5-2mm Wire Drawing Machine4.Discharging macine

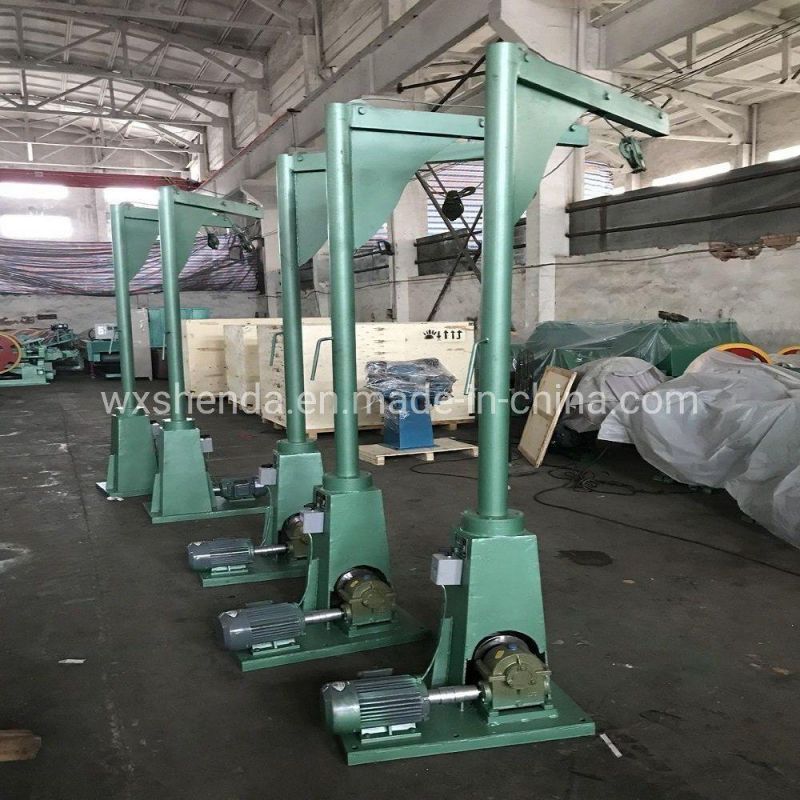

NameUnitHoist 500kgHoist 350kg
Max hoisting capacitykg500350
Liftmm26502500
Speedm/min86.4
Boom over handingmm12301085
Motorkw2.21.1
Total weight(approx)kg600300

Vertical Type 6.5-2mm Wire Drawing Machine
Vertical Type 6.5-2mm Wire Drawing Machine

Your concern is our concern!Your request is our request!Your value is our value!
  • 1.       25years experience in nail &wire machinery manufacture ,strictly cover all requirements for customer.
  • 2.       offer ultimate customization and personalized solutions
  • 3.       factory lay-out and Installation support
  • 4.       Engineer available for machine adjusting and testing abroad.

Company certificate
Vertical Type 6.5-2mm Wire Drawing Machine





QUESTION1:Do we need wire drawing machine when nail making?

A1:The raw material with diameter 6.5mm/6.0mm/5.5mm will be drawed to smaller diameter so as to making nail in the nail making machine.



QUESTION2:How many ton does one machine make per day

A2:The output for each model nail machine by pcs/min.So the weight is diffent if diameter and length different.We can calculate if you supply all size



QUESTION3:How can you guarranty the machine quality?

A3:All machine with 12 month guarranty as soon as machine arrive customer.And our machine is developed products which have planty working in lots of countries.



QUESTION4:How long is the machine delivery time?

A4:Usually there will need 10days for normal machine ,And if the machine order order to make will take a bit long time .Because normal model machine we have stock for sale.
