• Model NO.：ZYYX Series
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Brand Name：Zhongyuan
• Place of Origin：China, Zhejiang
• Total Length：105m

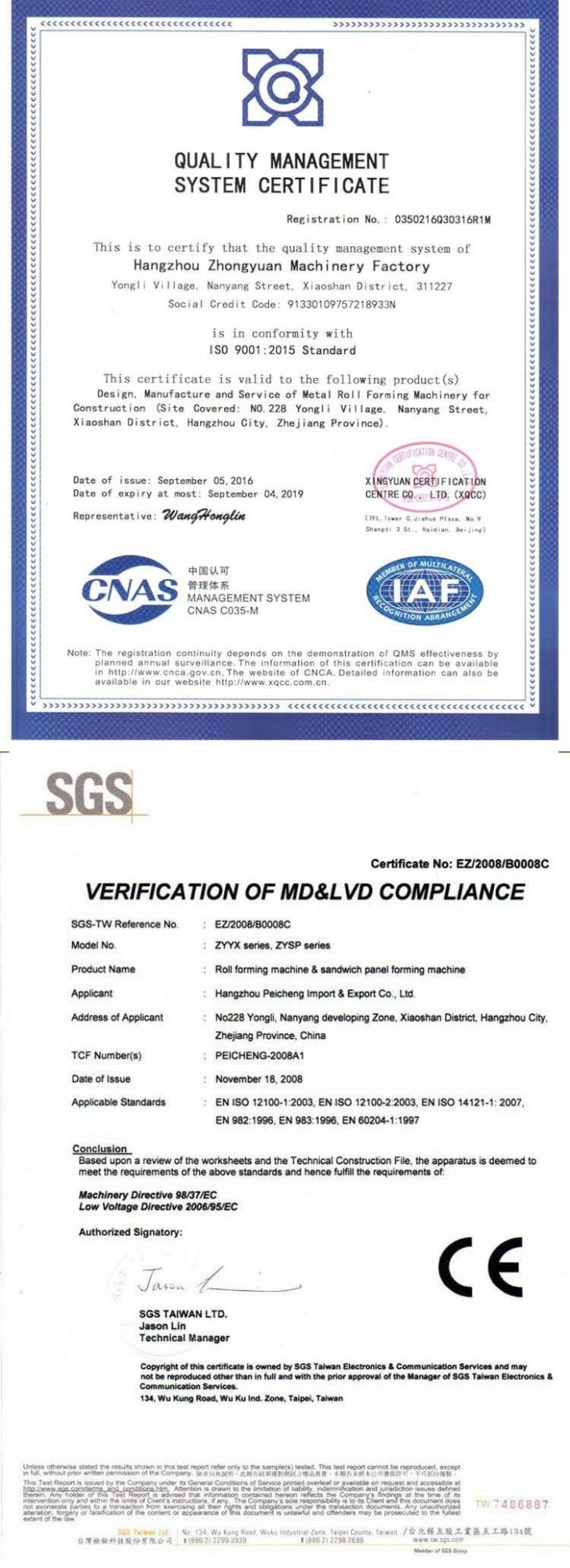

• Certificate：SGS, BV, CE, ISO
• Total Power：About 100kw
• Double Belt Conveyor：23m
• Control Model：Misubishi PLC
• Working Speed：Max.8m,Min (Adjustable)
• Stacking Height：1000mm
• Operation Language：English or as Per Client`S Required
• Transport Package：About 10*40ft Containers
• Specification：CE SGS BV
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：4 Sets,Year

Technical parametersItemSpecificationRaw MaterialTypeColor steel coilThickness(mm)0.4-0.7Yield strength(mpa)235-345Max. Width 1250Sandwich Panel Panel width  950-1000mm (according to profile requirement)Mini thickness40mm (corrugated sandwich panel)
50mm (wall panel)Max. Thickness 150mm (corrugated sandwich panel)
200mm (wall panel)Min. cutting length 3 m Max. Stacking length15mWorking height     1150mm (height of panel coming out)PU forming density ABOUT 40 kg/m3Pressure for foaming 150-200 barEffective length of double belt conveyor23mRoller material45# steel , coated with ChromeShaft for rollers Solid shaft with 72mm,processed with cylindrical grinderForming speed(m/min)3-7m/min (adjustable)Speed adjusting modeMisubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steelLength measurementNemicon EncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenTotal power(kw)About 100KW
Components
QTY.Hydraulic Uncoiller2set Platform for forming machine1set  Roll Forming System2set  Foaming system1setDouble Belt Laminator1setCutting System1set  Stacking system1set
Why choose this PU sandwich machine?
1. Lifetime seivices
2. Introduced Mitsubishi PLC with touch screen to machine controll system.
3. One worker operation (minimum)
4. Lifetime>10years: roller cover with 0.05mm chrome
5. 72mm diameter solid steel shaft
6. Cr12 mould steel cutter with quenched treatment.
     Cutting blade with heat treatment.
7. Product cut-to-length.
8.Technician overseas installing and training available




Why us?
1.  Customize roll forming machines since 2003.
2.  Capacity: 12-15 sets/month
3.  Delivery: in only 5-8 weeks for urgent order
4.  Company occupies 6650, in which 5650 for workshops
5.  Have our own tool center. 12 sets CNC machines.
6. Technician can be sent to your factory to install the machine and train your workers
7. Zhongyuan is a "All-in-house source"
   --from raw material to the final high-precision forming machine. We have our precise tooling center.





Please feel free to contact us for more information!
