• Model NO.：GB-S
• HS Code：84633000
• Production Capacity：1000pieces,Years

Basic Info.

Model NO. GB-S HS Code 84633000 Production Capacity 1000pieces/Years

Product Description

About our factory:


ONE-STOP WIRE&NAIL MAKING MACHINERY EXPERT(Skilled in kinds wire&nail making project)

Wuxi shenda nail machienry factory professional manufactures nail making machine, wire drawing machine and high speed thread rolling machine,high speed coil nail welding machine, the accessory equipments since 1995
Capacity 1000pcs per year, customers cover Africa ,middle East, Asia,and latin-America ariea.
Our company has CE, ISO9001 certificate and our engineer arrange for machine accommodation in customer's factory.
Advatage product:High speed thread rolling machine ,high speed coil nail weding machine,Roofing nail making machinery;Blind rivet nail making machinery;Concrete nail making machinery;Barbed wire machine;Coil nail welding machine;High speed rolling machine



Machine Specification:

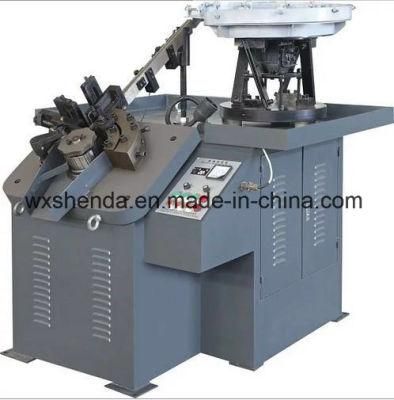

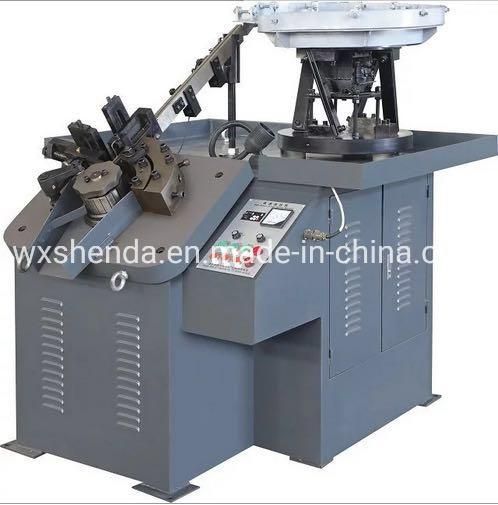

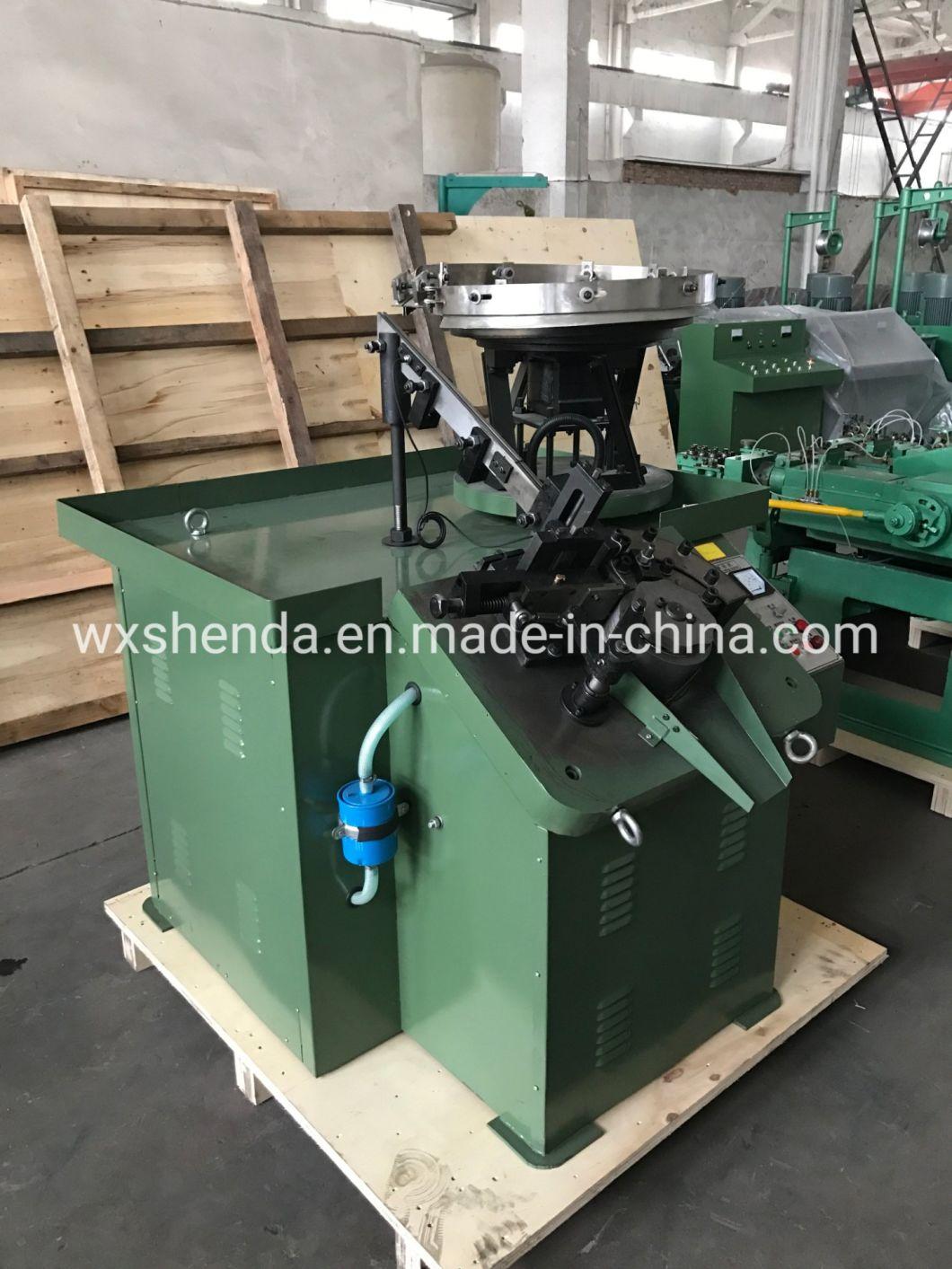

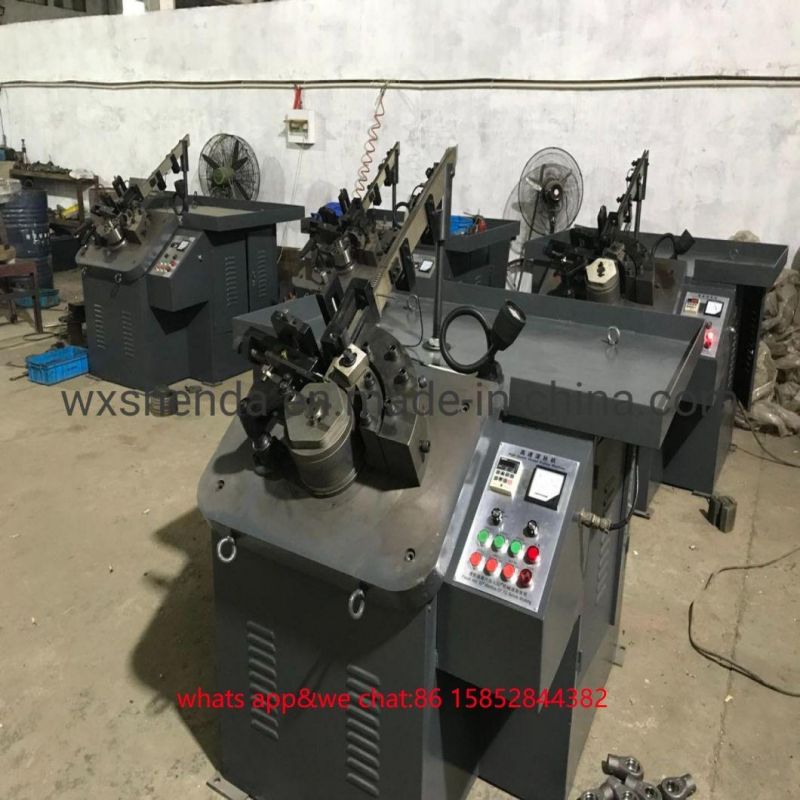

High speed thread rolling machine is a product designed and improved by our factory by integrating the
advantages of the same kind of products at home and abroad, keeping a leading position among the same kind
of products at home.



This machine is mainly used for processing the threaded nail, annular threaded nail and other new and special nails.

Thread rolling dia	2.0-4.1mm
Nail length	30-90mm
Production rate	500-1000 poa/min
Main motor power	3.0kw
Vibrate hopper capacity	5.0kg
Total weight	1300kg
Overall(LxWxH)	1300x1300x1500mm

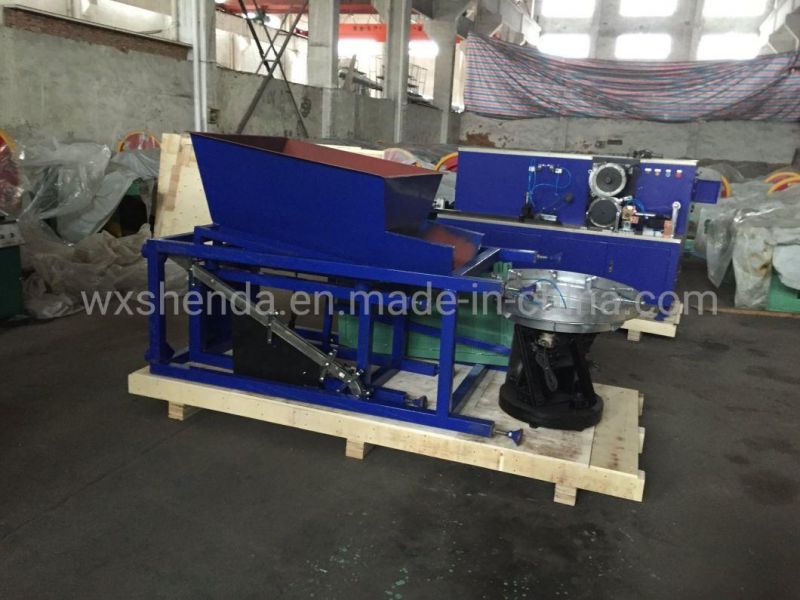

Packing&Delivery :

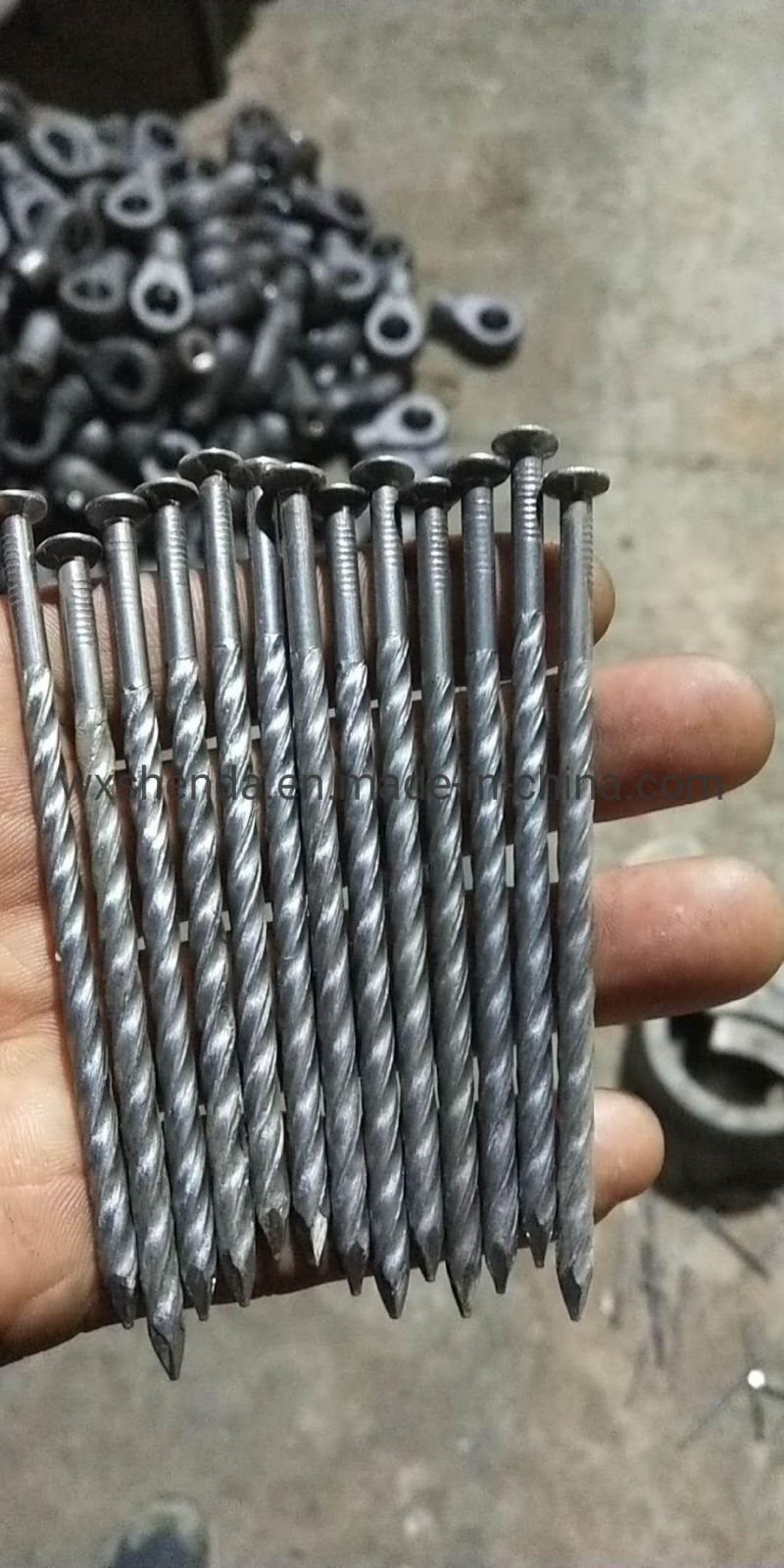

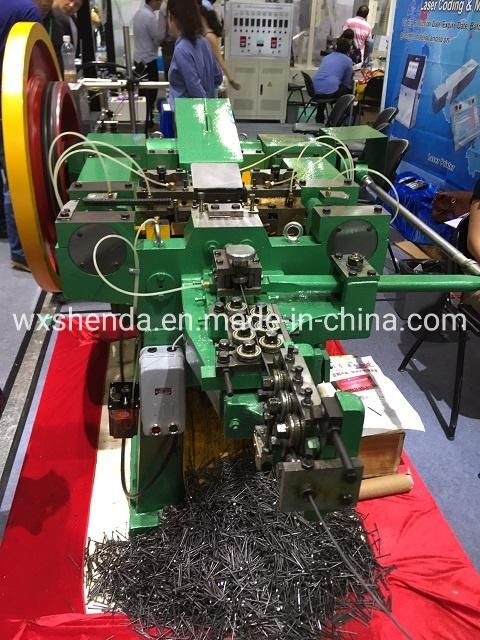

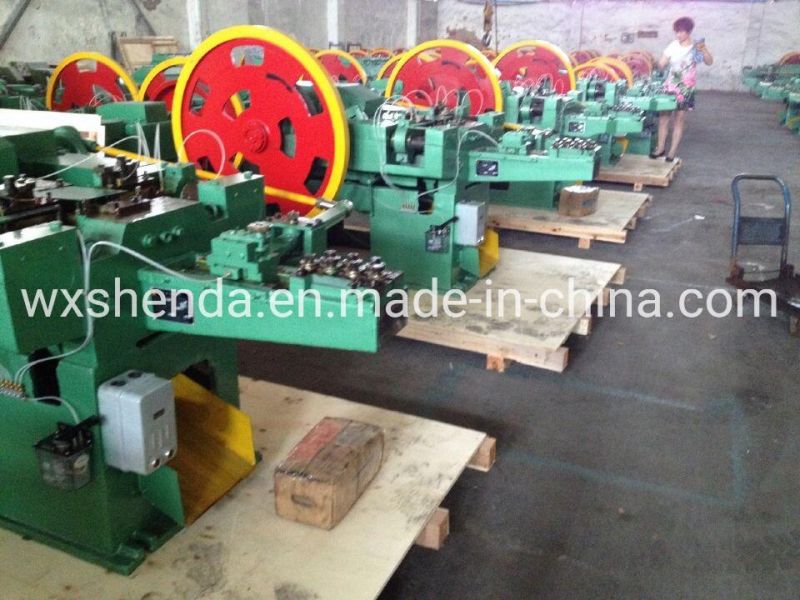

Screw nail and ring nail making from Nail making machine

parameter	unit	Z94-6.5C	Z94-5.5C	Z94-4C	Z94-3C	Z94-2C	Z94-1C
Dia of nail max	mm	6.5	5.5	4.5	3.4	2.8	1.6
Dia of nail min	mm	4.5	3.7	2.8	1.8	1.2	0.9
Length of nail max	mm	200	150	100	80	50	25
Length of nail min	mm	100	80	50	30	16	9
Dsigned out put	pcs/min	160	200	260	320	350	450
Moter power	kw	11	5.5	4	3	2.2	1.5
Weight(approx)	kg	5000	2500	2000	1400	1200	560
Overall dimensions	mm	3200x2200x2200	2800x1800x1800	2200x1600x1650	2000x1400x1400	1700x1300x1400	1500x1300x1200

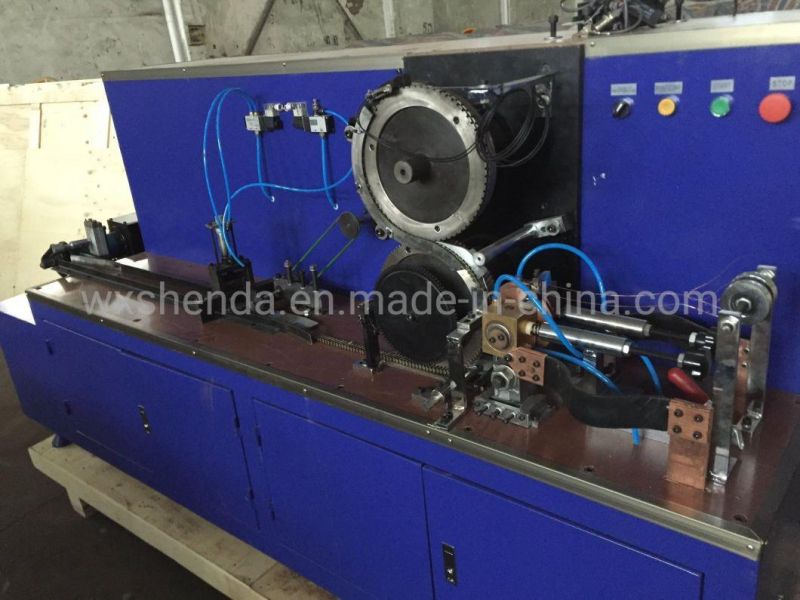

Coil nail welding machine after nail rolling from high speed thread roling machine

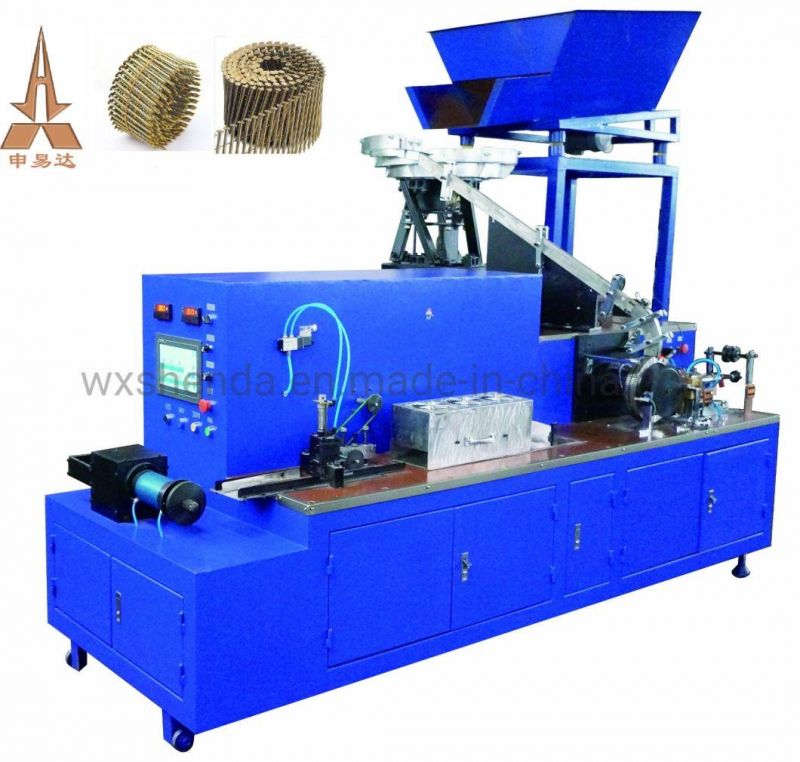

The high speed coil nail welding machine produced by our factoryis a fully automatic high-frequency high-speed welding equipment.

During operation, the iron nails are placed in the feeding hopper and automatically unloaded. The iron nails are arranged in order by the vibrating plate, and then enter the nail wheel through the unloading track, and are welded into coiled nails by two copper-plated welding wires, and then automatically dipped in paint to prevent rust and bake.

Drying and counting are automatically rolled into rolls, and automatically cut according to the set count of each roll. The finished product can be produced by the operator after packing the finished product into the box.

Model THN-1
Range of Nail Dia.:	1.8mm-4.0mm
Range of Nail Length:	25mm-130mm
Output:	800-2000pcs/min.
Rated Power:	8kw
Power of Nail Feeding System:	0.75kw
Power of Welding System:	20kw, 1000-2000A
Power Supply:	3 phases AC 380V 50-60HZ
coil nail welding angle	15/16degree
coil nail welding wire diameter	0.6/0.7/0.8mm
PLC brand	Japan Omron
Touch panel brand	TaiWan WEINVIEW
convetor brand	Japan Omron
replay brand	Japan Omron
Packing:	packed in 2 wooden cases
Packing Size:	3000X1500X1800mm
	2000×1200×800mm
Weight:	1600kg



Machine certificate
