• Model NO.：FF-S-6157
• Brand Name：Colo
• After Sales Services Provided：Engineer Is Available
• Place of Origin：Zhejiang, Chian
• Substract：PVC
• Dimension：700*1500*6000mm
• Filter：8-12PCS
• Power Methold：Electric
• Dilivery：25 Work Days
• Export：Global
• Transport Package：Export Packaging
• Specification：CE ISO
• Trademark：FF
• Origin：Zhejiang Hangzhou
• HS Code：8417809090
• Production Capacity：100set,Year

Basic Info.

Model NO. FF-S-6157 Brand Name Colo After Sales Services Provided Engineer Is Available Place of Origin Zhejiang, Chian Substract PVC Dimension 700*1500*6000mm Filter 8-12PCS Power Methold Electric Dilivery 25 Work Days Export Global Transport Package Export Packaging Specification CE ISO Trademark FF Origin Zhejiang Hangzhou HS Code 8417809090 Production Capacity 100set/Year

Product Description

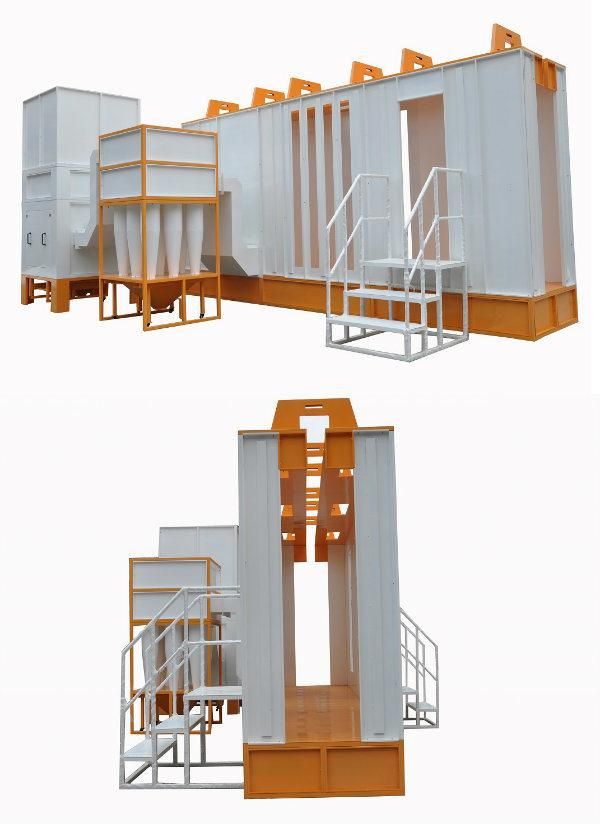

FF-S-6157 Multi-Cyclone Automatic Powder Coating Spray Booth

Description
The booth FF-S-6157 Multi-Cyclone Automatic Powder Coating Spray Booth is used in AUTOMATIC LINE ,We have exported to Saudi-arabia ,working with cyclone powder recovery system can get 98 % of powder recovery.


Specification

Model	COLO-S-Cyclone
Booth Type	Multi-Cyclone
Operator dimensions	800width x 2000 height x 6000 depth
Overall dimensions	800width x 2000 height x 6000 depth
Weight	4000kgs
Power supply	Electric
Nominal power	15KW
Voltage	380V
Frequency	50-60Hz
Filters	Polyester
Filters count	16pcs
Filters hang type	easy for change
Filter cleaning system	Pneumatic
cyclone	16pcs,Efficient automatic separation
Rotation wing self-cleaning cartridge filter unit	1set
fliud hopper	1set
Warranty	12 months



Details Introduction
1.The first stage recovery system is Cyclone,  with 9 pcs of mini cyclones, it use centrifugal force to seperator the powder which were mixed in the air.And the powder will drop into the bottom recovery tank.

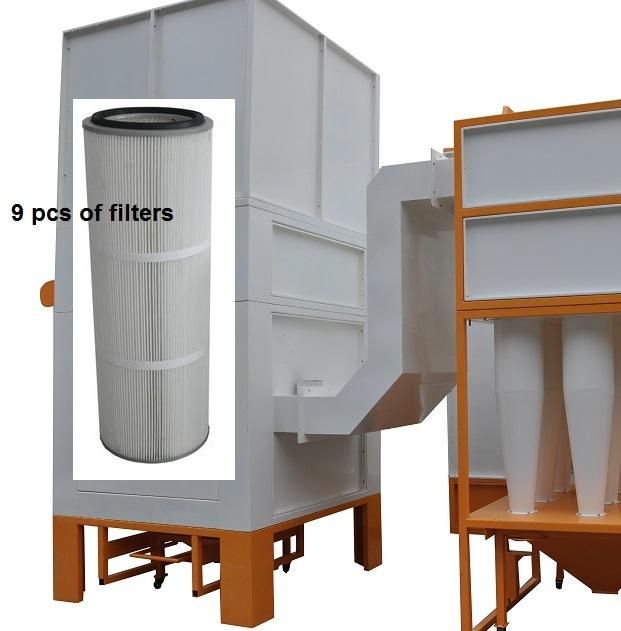

2. Some superfine powder will not be extracted in the cyclone, so we need the second stage recovery system, Filters Recovery, which will absorb the superfine powders.

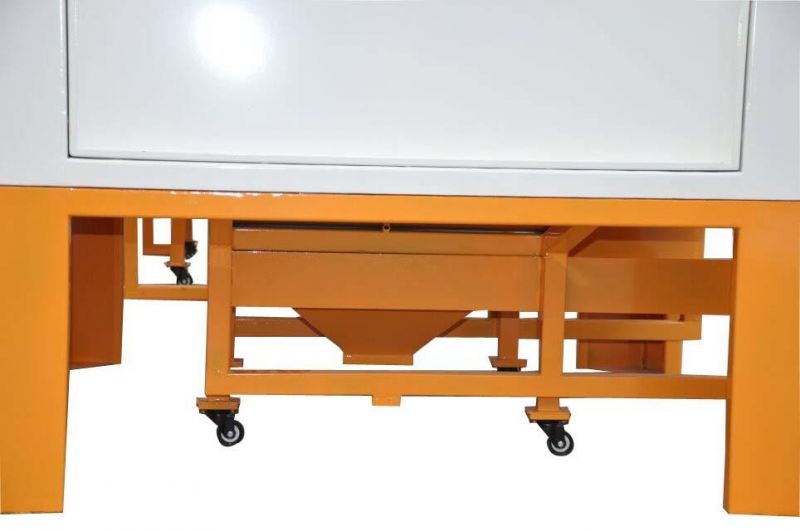

3. Recycling tank, the powders will be collected in the bottom tank for re-utilization.

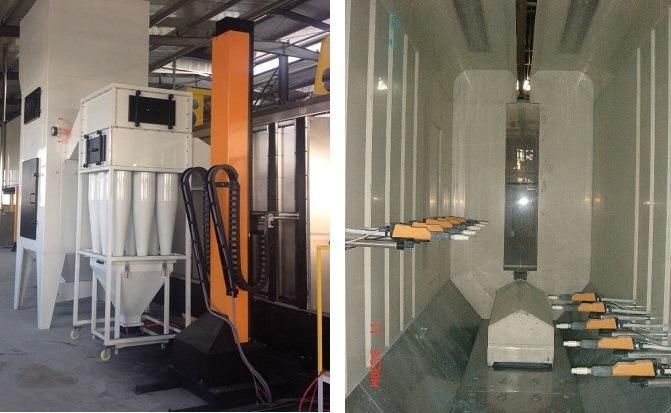

Application work with reciprocator in automatic powder coating line,

COLO Service
1 Delivery: 25 work days after receieve the payment
2 Warranty: 12 months .
3 After sales service: engineer oversea training and installation instruction .

Why choose us ?
1. More than 10 years manufacturing experience in whole powder coating and powder painting line
2. Exported to over 90 countries, experienced in exporting.
3. Customized as you want.
4. Competitive price: we are factory. Design, produce, installed all by ourselves Save cost
5. One year of warranty period and life long technical support.
6. Market share in Global: about 90%, is a leading factory in this filed.

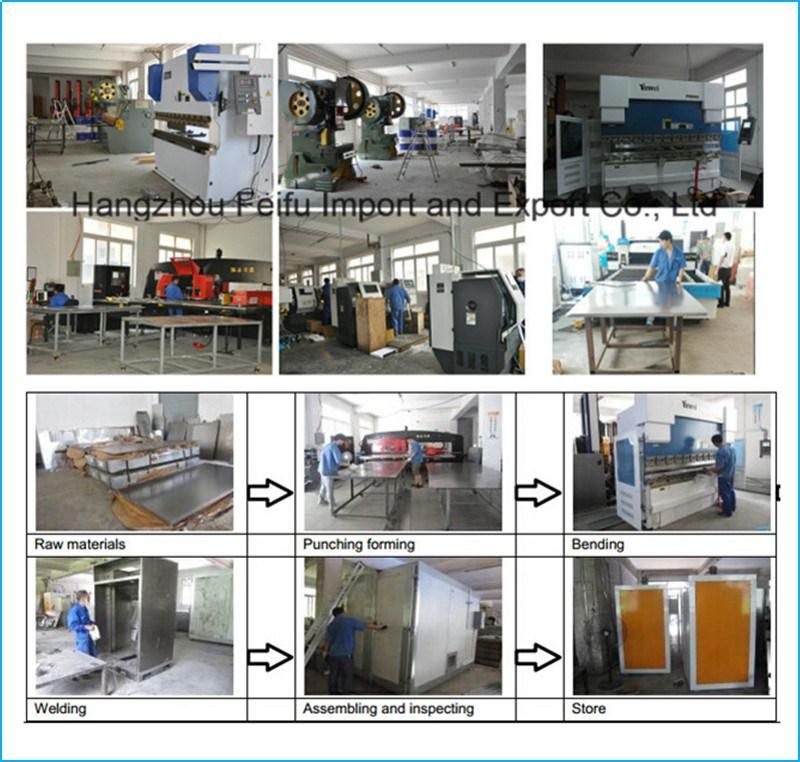

Our work shop & production process .
