• Model NO.：FF- S-1115
• Condition：New
• Usage：Electrostatic Powder Coating
• Power：50-200kw
• Categories：Filter Powder Coating Booth
• Inner Size：1*1*1.5m (L*W*H)
• Outer Size：1.2*1.2*1.2m(L*W*H)
• Booth Material：Stainless Metal ,Coated Metal,PP
• Recover：1 PC Filter
• Recover Rate：97%
• Dilivery：10-15 Work Days
• Payment：100%Tt in Advance
• Transport Package：Export Packaging
• Specification：1*1*1.5M(L*W*H)
• Trademark：FF
• Origin：Zhejiang Hangzhou
• HS Code：8504231300
• Production Capacity：10000PCS,Years

Worksize dimensions1000width x 1500 height x 1000depthOverall dimensions1200width  x 1900 height x 1200 depthPower supplyElectric/ 4kwVoltage/Frequency380V/220v(50-60hz)Warm-up time15-30 min. (180° C)Temperature stability< ± 1-3°CTemperature max.250° CVentilation performance805-1677m3/hMotor power0.75kwWarranty12 months
Advantages and Characteristics


Easy Installation

The booth module(s) are factory assembled and shipped completely, making for a much quicker installation and start-up process.

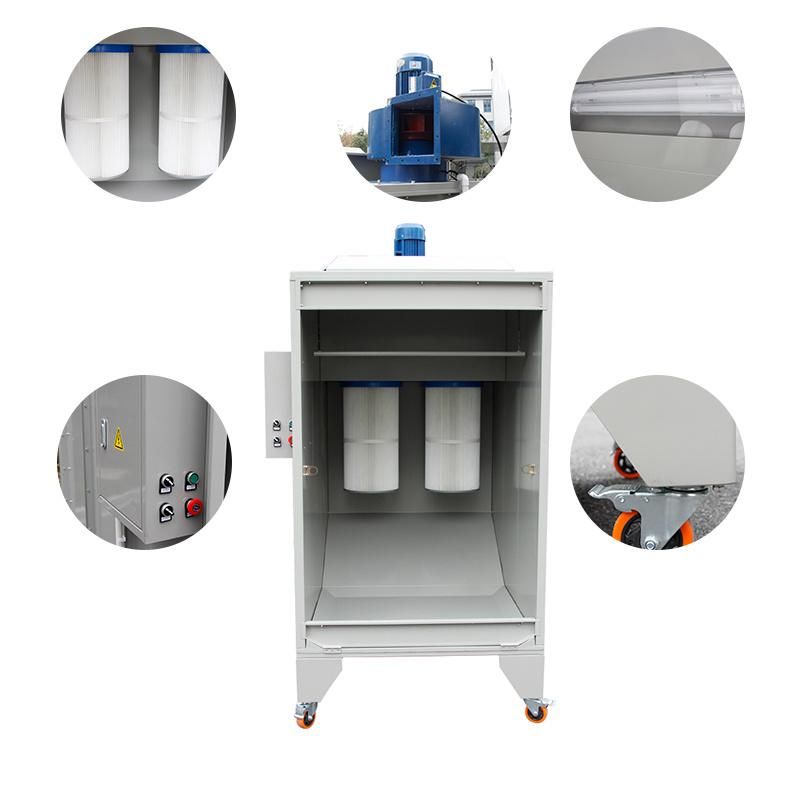

Pulse-Jet Filter Cleaning

A pressure change in the cartridge filters. When the filters' differential pressure reaches the upper set point, reverse pulse-jet cleaning begins by pulsing compressed air through the filters. This means you need to change filters less often.

Easy Filter Replacement

Held in place with a lever operating mechanism, cartridge filters are easy to remove and replace. An include air solenoid value allows for easy filter maintenance.


We have professional techinical department to work out the drawing

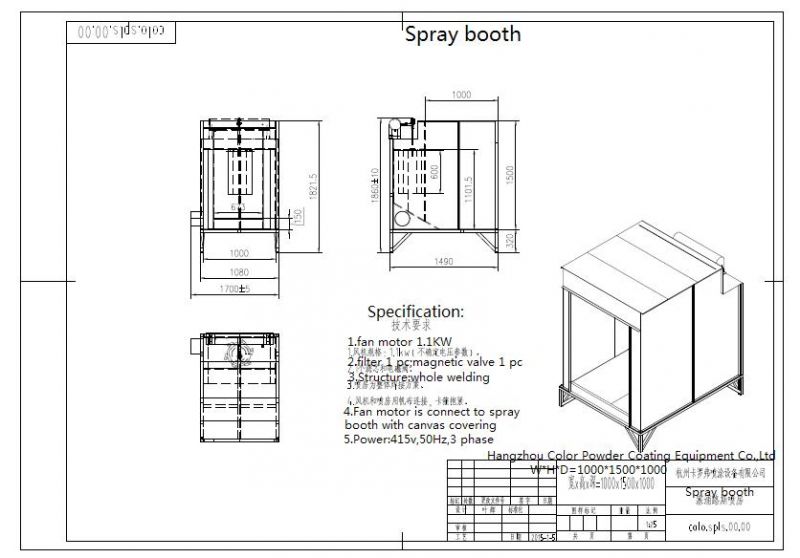

FF-S-1115 Drawing


Why choose us as your supplier?

*More than 10 years Online sales Experience to all over the World.

*As a factory , we supply you design ,drawing, manufactuer and delivery service.

*We have English, Spanish and Germany speaking sales support.

*We are not only the supplier, but also the solver.
