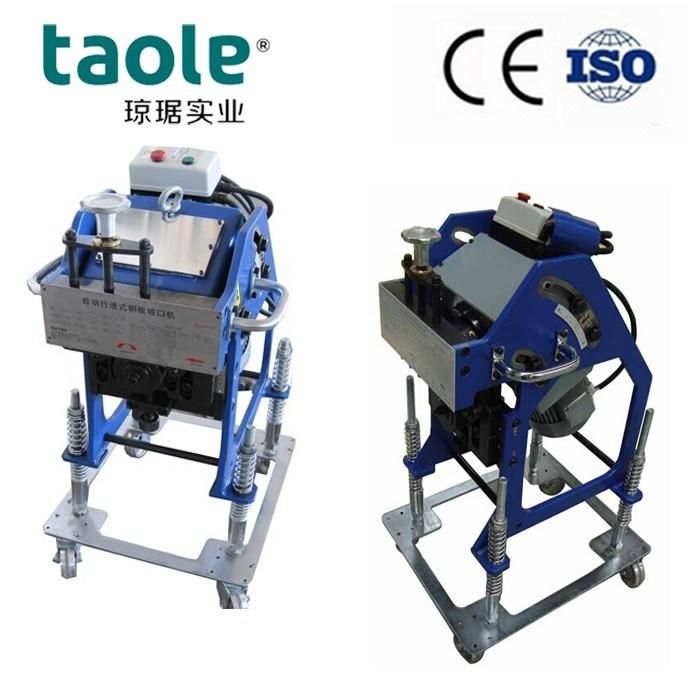

Gbm-12D-R Metal Steel Plate Beveling Machine
Shanghai Taole Machine Co., Ltd.- After-sales Service：Online Support
- Warranty：1 Year
- Automatic：Semi-Automatic
- Style：Desktop
- Certification：CE, ISO
- Name：Gbm-12D-R Metal Plate Beveling Machine
Base Info
- Model NO.：GBM-12D-R
- Feature：Turnable
- Power：380V 50Hz 0.75kw
- Motor Speed：1450r,Min
- Feed Speed：1.5-2.6 M,Min
- Clamp Thickness：6-30mm
- Clamp Width：>75mm
- Process Length：>70mm
- Bevel Angle：25-45 Degree Adjustable
- More Detail：See The Parameter Below
- Bevel Width：18mm
- Singgle Bevel Width：12mm
- Transport Package：Wooden Box
- Specification：GBM-12D-R
- Trademark：taole
- Origin：Shanghai
- HS Code：8460310000
- Production Capacity：100
Description
GBM-6DGBM-12D GBM-12D-R GBM-16D GBM-16D-R Clamping Plate Thickness 4-16mm 6-30mm 6-30mm 9-40mm 9-40mm Min.Processing Plate Width ≥55mm ≥75mm ≥75mm ≥115mm ≥115mm Net Weight for Machine 33kg 155kg 235kg 212kg 315kg Beveling Width 6mm/time
Max: 8mm 12mm/time
Max. 18mm 12mm/time
Max.18mm 16mm/time
Max. 28mm 16mm/time
Max.28mm Beveling Angle 25°, 30°, 35°, 40°, 45° 25°-45°
(adjustable) 25°-45°
(adjustable) 25°-45°
(adjustable) 25°-45
(adjustable) Beveling Speed 1.2 - 1.8m/min 1.5 - 2.6m/min 1.5 - 2.6m/min 1.2 - 1.6m/min 1.2 - 1.6m/min
Max: 8mm
Max. 18mm
Max.18mm
Max. 28mm
Max.28mm
(adjustable)
(adjustable)
(adjustable)
(adjustable)
Features:
- High quality transmission reducer with efficiency and stability.
- Shock absorption to move with fast bevelling.
- Process with electric and easy adjustable for even un-professional worker to reduce labour cost.
- Low noise while processing by imported motor.
- Processing material could be : Stainless stell,carbon steel,AL Alloy ,Clad Plate .etg
- Feeding used efficient gear system.
- Electrical wiring comply with CE standard and safty systerm.
- Special parts used high wear-resisting and hardness material
- Favourite price for a high quality tool.
- Accessories & parts and tools will be offered in a tool box with manual .
Before you place order to us, please let us know the following information:
Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your Plate material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed
