• Rated Power：7.5kw
• Rated Voltage：220V,380V
• Certification：ISO9001
• Control System：F2300
• Cutting Thickness：6-200mm
• Application：Industrial Metal Cutting
• Cutting Gas：Oxygen,Oxyfuel +Propane Acetylene
• Plasma Cutter：USA Brand or China Seanior Lkg Series or Customize
• Plasma Power Source Type：IGBT
• Transport Package：Standards Exporting Package
• Specification：12000x4000x1600 mm
• Trademark：Seanior
• Origin：China(Mainland)
• HS Code：8456901000
• Production Capacity：2000 Sets,Year

Basic Info.

Rated Power 7.5kw Rated Voltage 220V/380V Certification ISO9001 Control System F2300 Cutting Thickness 6-200mm Application Industrial Metal Cutting Cutting Gas Oxygen/Oxyfuel +Propane Acetylene Plasma Cutter USA Brand or China Seanior Lkg Series or Customize Plasma Power Source Type IGBT Transport Package Standards Exporting Package Specification 12000x4000x1600 mm Trademark Seanior Origin China(Mainland) HS Code 8456901000 Production Capacity 2000 Sets/Year

Product Description



   Do you want to cut something great and improve your efficiency with CNC Plasma and flame cutting machine?
 Are you looking for the high quality plasma/flame metal cutting machine to cut your sheet metal or pipe and tube at best price?
 Are you finding German or American suppliers' offer SO HIGH?How about a person helps you to solve all the problems and leave you to sit back and relax?

Product Description

 Economical, high-precision and robust. CutMaster  owns sturdy construction. With Rugged floor-mounted  rails which are machined from 24kg/m crane rail and heavy-duty end truck,  You'll get high- precise cutting quality of long life cycle.


CutMaster can support two high performance plasma systems and up to 11 flame straight cutting systems, which can provide you different cutting requirements and improve your productivity to the largest extent.

Equipped with accurate transmission and guiding system, adopting STARCAM automatic nesting software and F2300B industrial level CNC system, CutMaster II is built to fulfill heavy tasks in your shop with multiple choices.


Are you looking for a machine that can outperform in cutting capability and is low in budget? Meet our robust CutMaster and get excellent cut part quality and benefit from cost-saving, worry-freeing and high-efficiency.



Main Features

1) Heavy-duty CNC gantry cutting machine with easy-to-use F2300B CNC control system.
2) High compliance digital drives provide a smooth cut edge with zero maintenance.
3) Large diameter drive wheels combined with high precision guiding systems offer you superior drive motion.
4) Rugged cross box beam with milled steel plate for high precision guiding system delivery lasting strength, durability and precision.
5) Fast flame cutting torch with height sensing lifer and auto-ignition device let you spend more time cutting and less time in setup.
6) Up to 800 amp plasma depending on your choice.
5) Apply to metal cutting in ship building, construction tower, mechanical engineering, steel service and other heavy industries.




  Product Parameters


Technical item	Technical parameters
Effective cutting width	2000mm - 5500mm
Effective cutting length	4000mm - 20000mm
Tailor-made dimension	Accept tailor-made order
Flame piercing thickness	6mm -80mm
Edge cutting thickness	6mm -200mm for flame cutting
Torch lifter vertical traveling distance	≤150mm
Cutting precision	±0.5mm
Cutting speed	0-10000 mm/min
Number of lifter	Double (standard), accept tailor-made order
Cutting process	Plasma cutting and flame cutting
Torch lifting device	flame capacitance adjustment / plasma arc pressure adjustment
duty cycle	24h
processing material	Mild steel , stainless steel and aluminum

Product Details


Gear rack
The rack and pinion combined with double cylinder axis guide rail deliver you high precision motion and high quality cutting edge, which will enhance your competitive power in your market place.

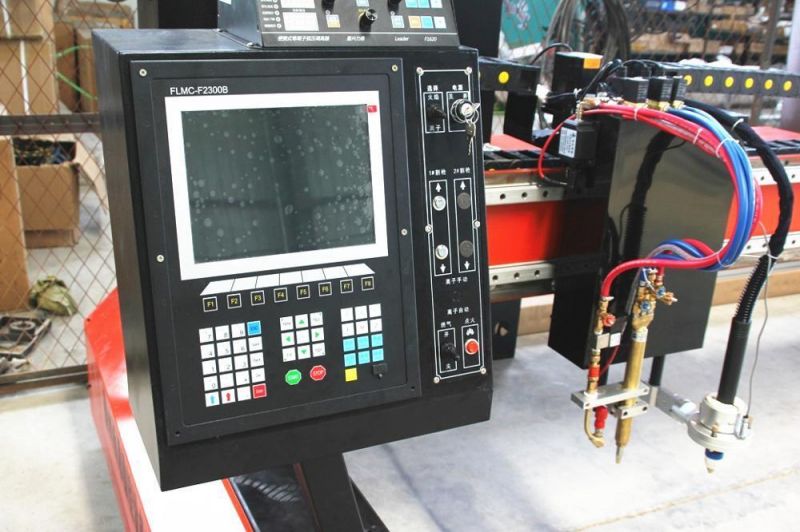

Electric cabinet
The enclosed control cabinet is easily accessible. The digital drives, low-cost  replacement I/O modules and more reduce and limit your repaire and maintenance costs.



Floor mounted rails
Rugged floor mounted rails machined from 24kg/m crane rail for smooth motion required by today's high performance plasma and flame torche



Heavy-duty end trucks
The heavy-duty end trucks can support the steel dual cross beam and offer you rugged gantry structure ready to carry the cutting processes while offering you excellent part quality.

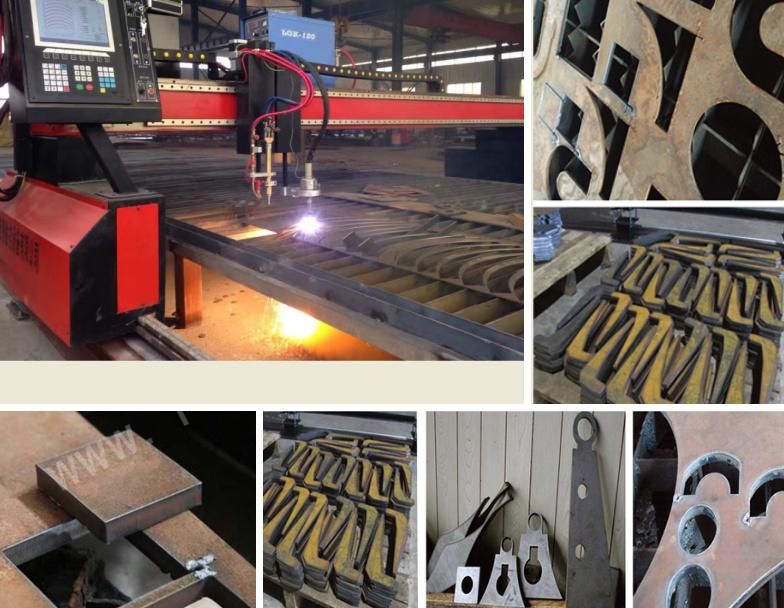

 Cutting Samples

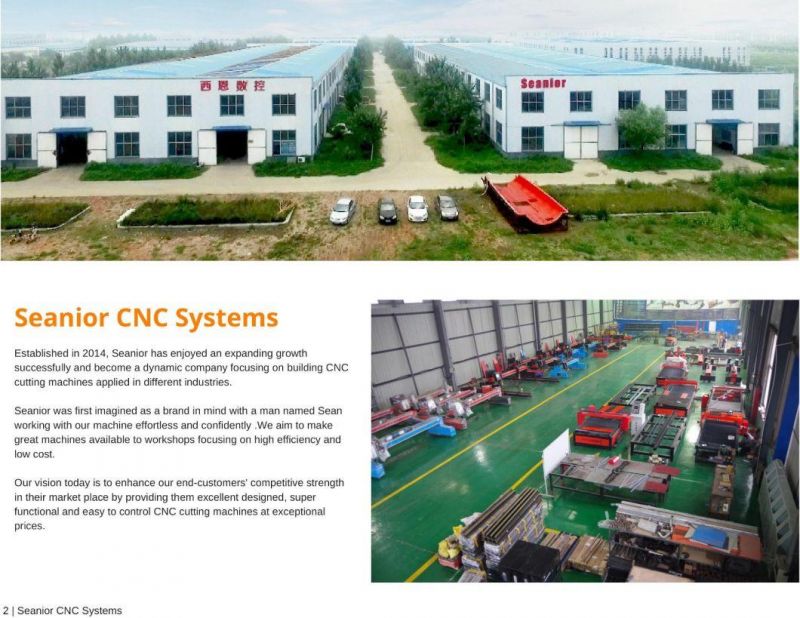

 Seanior CNC Systems Seanior CNC Systems manufactures and sells cutting machines, provide services for the metal-working industry, offering complete solutions and focus on customer-driven innovation.




CONTACT :











Meet US in New Delhi

14th to 18th Nov. 2018

We are going to the 38^th IITF in New Delhi 2018.11.14 to 2018.11.18 to show our newly designed plasma cutting machine and plasma power source.

Pragati Bhawan, Pragati Maidan, New Delhi.
 Exhibits Promotion

High-end configuration, Good performance and High quality

Sell at a low price regardless of cost so to avoid return cost

First come First serve. Contact Us NOW!


Good After-Sale Service CNC Gantry Plasma Metal Pipe Cutting Machine

  Customer-orientedFree pre-sales consulting, Free samples servicelife-long serviceONE hours quick feedback & after-sales srviceEngineer Overseas Installation availableSeanior has over one 10 years of experience in the thermal-cutting machine industryContact us to find more details about Handyman to your specific demands now!

Good After-Sale Service CNC Gantry Plasma Metal Pipe Cutting Machine

(CNC Plate & Pipe Cutting Machine        CutMaster 4014)It is a kind of CNC cutting equipment with high efficiency and high precision,and can reduce labor intensity. It is widely used in the process of cutting metal plate in machinery manufacturing industry, and can cut steel, stainless steel, aluminum, coppper and many kinds of non-ferrous metal.  Productivity workhorse, economical and high efficiency | Fast, Accurate, Long work hours

Consistent, repeatable performance, Multiple processes, Easy to use.
