• Model NO.：TM30
• Spinning Deformation Condition：Cold Spinning
• Spinning Belt Wheel Type：Rolling V Type Belt Wheel
• Spinning Wheel Number：Double
• Finished Product：Pipe
• Finished Product Shape：Special Shape
• Technology：Taiwan
• End Forming Function：Shrinking, Expanding, Ring
• Manufacturer：Sanco
• Forming Capacity：Od40*2
• Certificates：Ce, ISO9001
• Transport Package：Wooden Case
• Specification：1000*800*1200mm
• Trademark：Sanco
• Origin：China
• HS Code：846291
• Production Capacity：10000 Sets,Year

Basic Info.

Model NO. TM30 Spinning Deformation Condition Cold Spinning Spinning Belt Wheel Type Rolling V Type Belt Wheel Spinning Wheel Number Double Finished Product Pipe Finished Product Shape Special Shape Technology Taiwan End Forming Function Shrinking, Expanding, Ring Manufacturer Sanco Forming Capacity Od40*2 Certificates Ce, ISO9001 Transport Package Wooden Case Specification 1000*800*1200mm Trademark Sanco Origin China HS Code 846291 Production Capacity 10000 Sets/Year

Product Description

Matal Tube Flaring Machine End Forming Machine for Expanding Shrinking Beading

Tube end forming machine is widely used in numerous end forming applications and industries, such as automotive exhausts, furniture, air conditioning, among others. Forming controlled by hydraulic, clamping controlled by hydraulic. Microcomputer controller with English or any other language. With Taiwan core tech since 1989.





 STANDARD


                                                                          TM-30
                                                                          One station
                                                                          Max forming                   Φ30X2 mm
                                                                          Forming length               100 mm
                                                                          Pressure                          12 Mpa
                                                                          Forming speed                100 mm / 3 seconds


                                                                          Working light



                                                                          Pipe material: mild steel, stainless steel, copper, aluminum ...
                                                                          Round / square / rectangle ... pipes
                                                                          CE, ISO90001 marked
Working video link:


https://sancogroup.en.made-in-china.com

 OPTIONAL

                                                                          II       Two station

                                                                          III      Three station

                                                                          IV      Four station



                                                                          Double  head forming

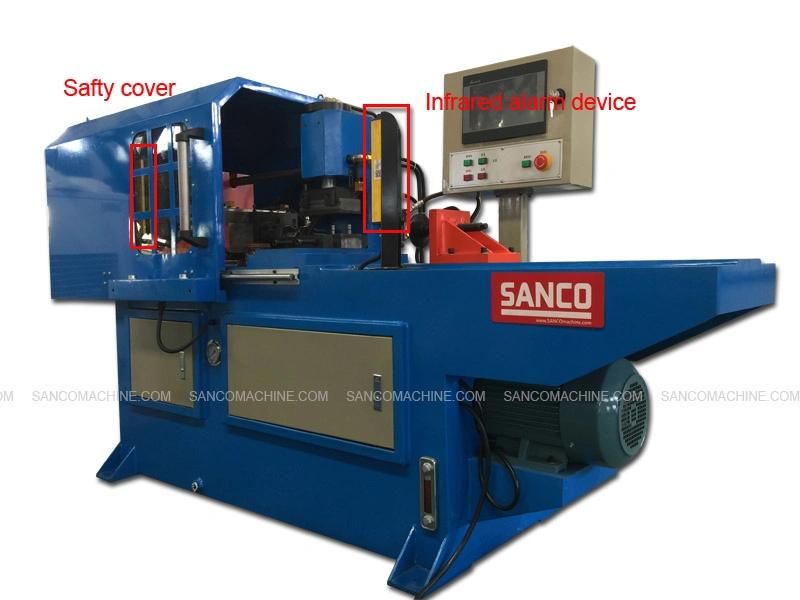

                                                                          Safty cover

                                                                          Infrared alarm device
Company Introduction:




  Zhangjiagang SANCO Machinery Co., Ltd


Our company video link:

https://sancogroup.en.made-in-china.com
SANCO(Taiwan and China mainland)Machinery Co., Ltd. was established in 1984, and have cooperation with Taiwan bender company since 1989, specialized in manufacturing Pipe Bending Machine, Metal Circular Saw Machine, Pipe End Forming Machine, Polishing Machine, Chamfering Machine and so on. In 1984, SANCO and "Shanghai Aircraft Design and Research Institute" joint the production of hydraulic pipe bending machine. And in 1984, "Shanghai Aircraft Manufacturing Co., Ltd." assembled 25 airplanes of American model MD82. Chinese government required SANCO mapping the prototype of Italian bending machine, and SANCO manufacturing the bending machine to produce airplane related accessories.
With 176 workers, 11 professional and technical engineers. SANCO company occupies 20,000 square meters, construction area of 15,000 square meters.
The three-dimensional CNC bending machine developed by SANCO is advanced than other Chinese factories. SANCO is the leader of drafting the "Chinese Standard of CNC Pipe Bending Machine" (GB / T28763-2012), released in November 2012, and implemented in May 2013. And SANCO is also the leader of "Chinese Standard of Pipe Bending Machine Safety" (GB28760-2012), released in November 2012, and implemented in October 2013.
All machines marked ISO 9001 and CE. SANCO machines exported to the United States, UK, France, Russia, Australia, India, Brazil, Poland, Canada, South Africa, Mexico, UAE, Saudi Arabia, and so on 58 countries.
NOW, AND FOREVER MORE ...    SANCO DO THE BEST OR NOTHING.

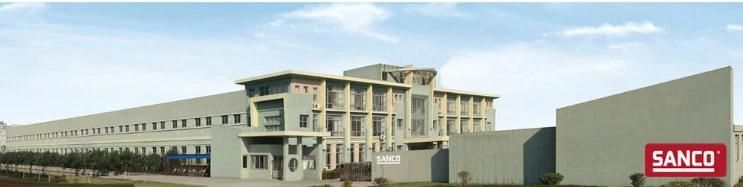

Company Photos:

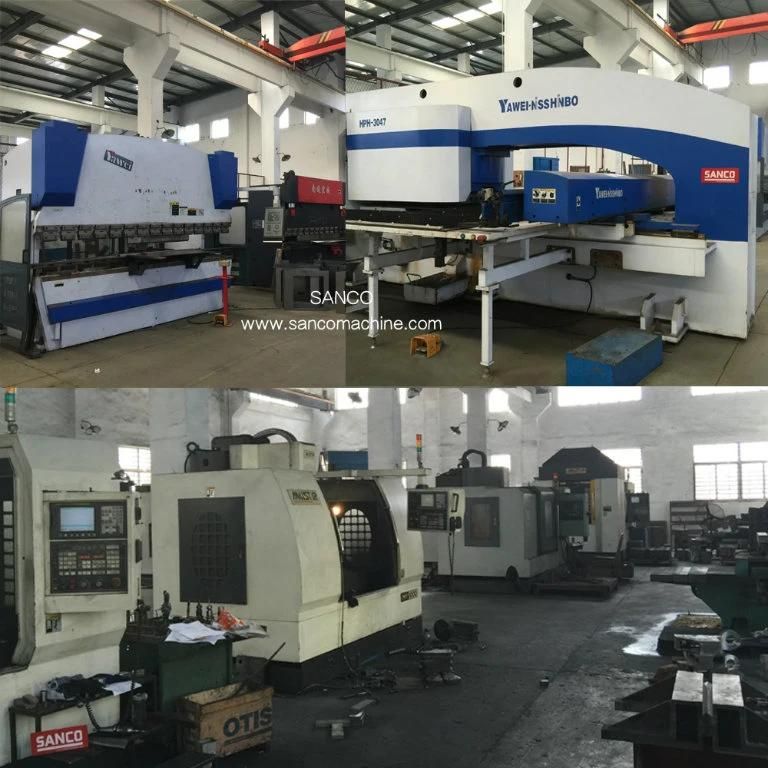

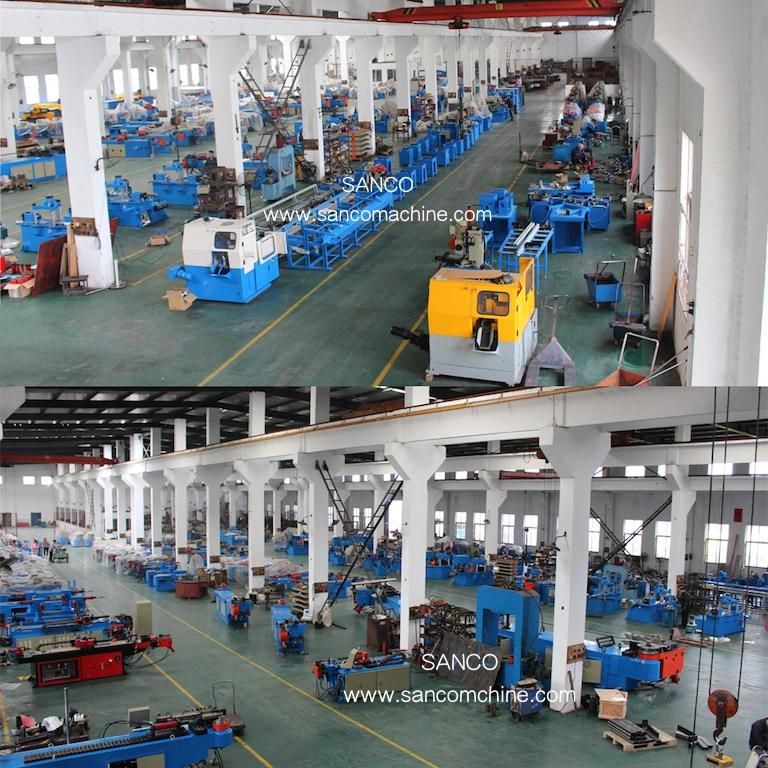

Aseembling workshops:
