High Precision 4/5 Axis Horizontal CNC Milling Drilling Tapping Machine
Guangdong PRATIC CNC Technology Co., Ltd.- Condition:New
- Certification:CE, ISO9001
- Customized:Standard or Customized
- Material:Aluminum, Steel, Copper, Titanium Components
- Application:Milling, Drilling, Tapping, Routing, Boring...
- Operation System:Siemens
Base Info
- Model NO.:PW-CNC8050A
- Protection Cover:Fully Enclosed
- Spindle Installation:Horizontal
- Cooling System:Water Cooling
- Spindle of Driven Motor:7.5 Kw
- Tool Change Time:2 Sec.
- Weight:7t
- Transport Package:40hq
- Specification:6400~15500*3000mm
- Trademark:PRATIC
- Origin:China(Mainland)
- HS Code:8457102000
- Production Capacity:1000 Sets ,Year
Description
Basic Info.
Model NO. PW-CNC8050A Protection Cover Fully Enclosed Spindle Installation Horizontal Cooling System Water Cooling Spindle of Driven Motor 7.5 Kw Tool Change Time 2 Sec. Weight 7t Transport Package 40hq Specification 6400~15500*3000mm Trademark PRATIC Origin China(Mainland) HS Code 8457102000 Production Capacity 1000 Sets /YearProduct Description

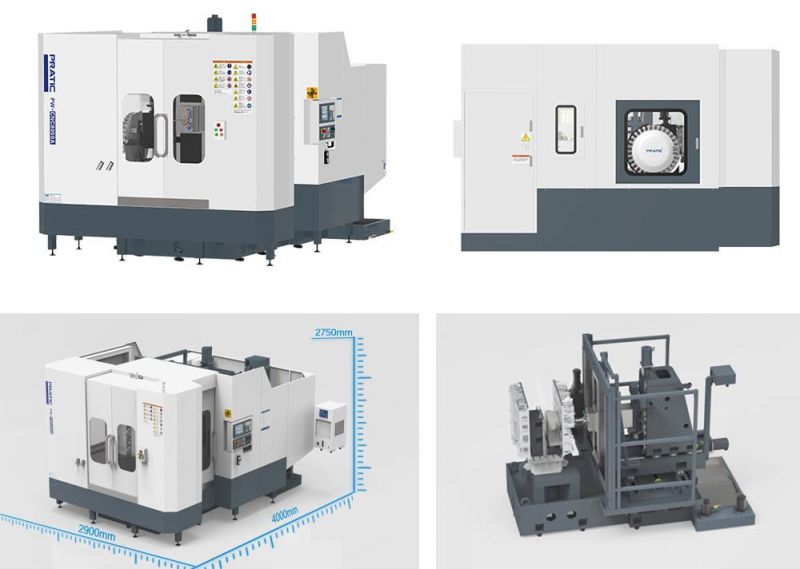

PW-CNC8050A Multifunctional Horizontal CNC Machining CenterDescription
1. Integrated with the functions of milling, boring, drilling, reaming and tapping;
2. This machine is a horizontal machining center, and the headstock adopts fixed-distance structure;
3. Clamping options: Double working-zone horizontal four-axis/ Double working-zone horizontal five-axis/ Double working-zone horizontal cradle type;
4. Used for processing Huawei 5G radiator, shielding case, new energy vehicle control box, photovoltaic inverter, LED display boxes with sizes of 500X500mm, 640X640mm and 760X760mm.
Advantage
1. The horizontal machining center adopt Headstock Fixed-distance Structure, enhance the machine rigidity.

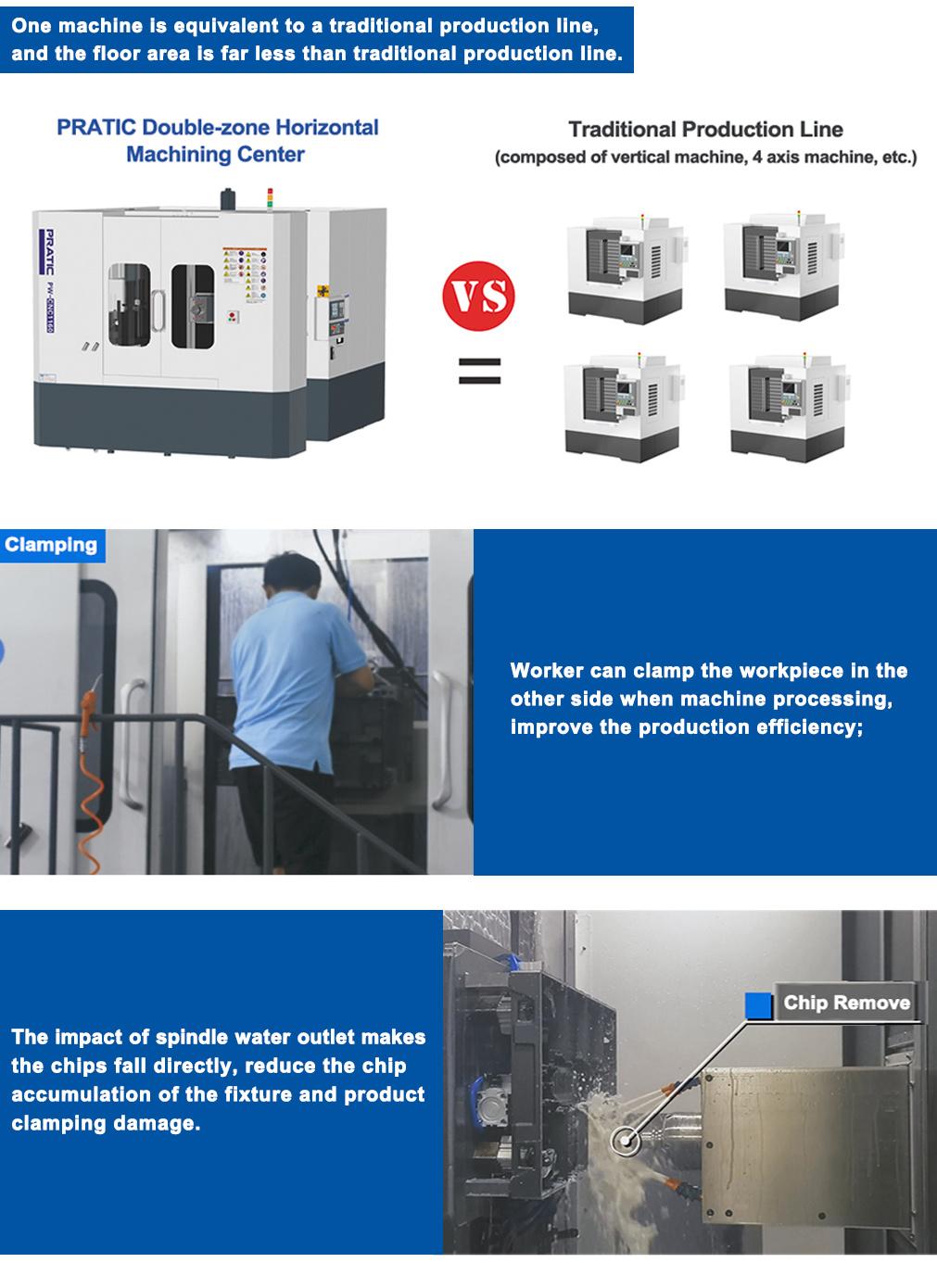

2. One machine is equivalent to a traditional production line, and the floor area is far less than traditional production line;
3. Clamp two workpieces at a time to complete 6 sides processing, improve collaborative accuracy and reduce positioning error;
4. Worker can clamp the workpiece in the other side when machine processing, improve the production efficiency;
5. The impact of spindle water outlet makes the chips fall directly, reduce the chip accumulation of the fixture and product clamping damage.

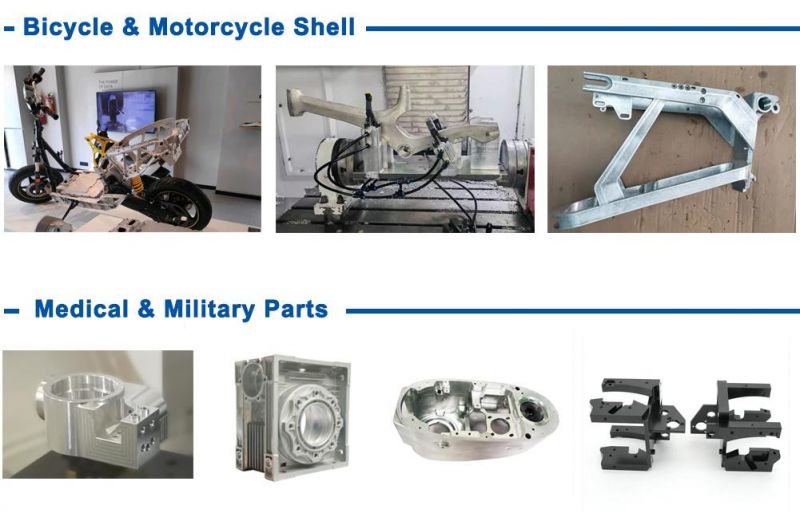

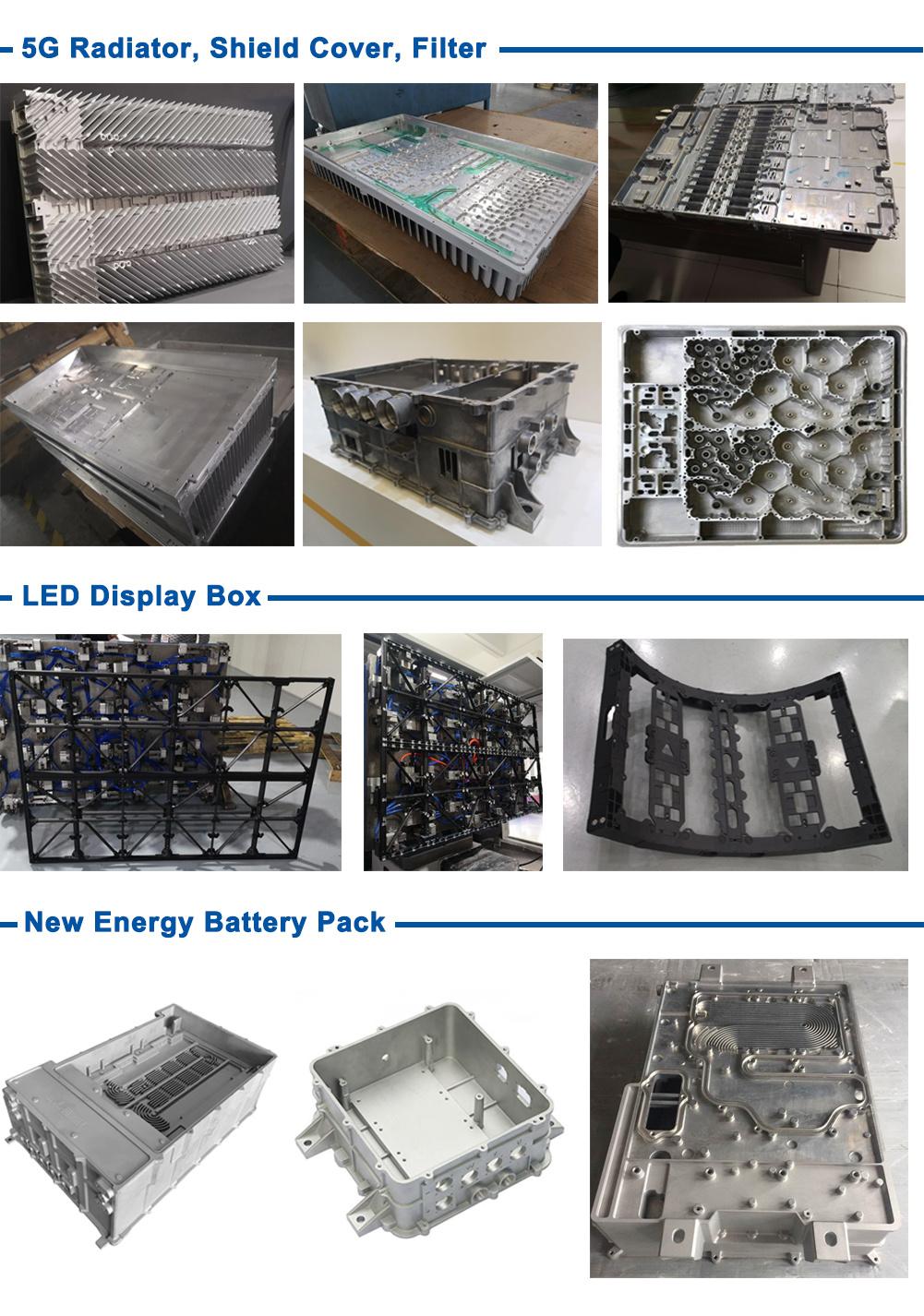

The PW horizontal machine widely used in processing workpieces such as LED display screen box, 5G communication (including transmitting antenna, filter, radiator, shield cover and various cavity parts), new energy inverter, controller, battery pack and many other capabilities.
Technical Data
ITEM | SPECIFICATION |
X/Y/Z Axis Travel | 800 / 800 / 500 mm |
Spindle Taper | BT30 |
Spindle Speed | 24000 rpm |
Tool Magazine | 32pcs Disc-type |
Tool Change Time | 2 sec |
X/Y/Z Axis Moving Speed | 48 m/min |
Position Precision of X/Y/Z Axis | 0.015 /0.012 /0.01 mm |
Repeating Position Precision of X/Y/Z Axis | 0.01 mm |
Power of Spindle Driven Motor | 7.5 kW |
Lubricating System | Automatic Lubricating |
Cooling System | Water Cooling |
Operation System | SIEMENS |

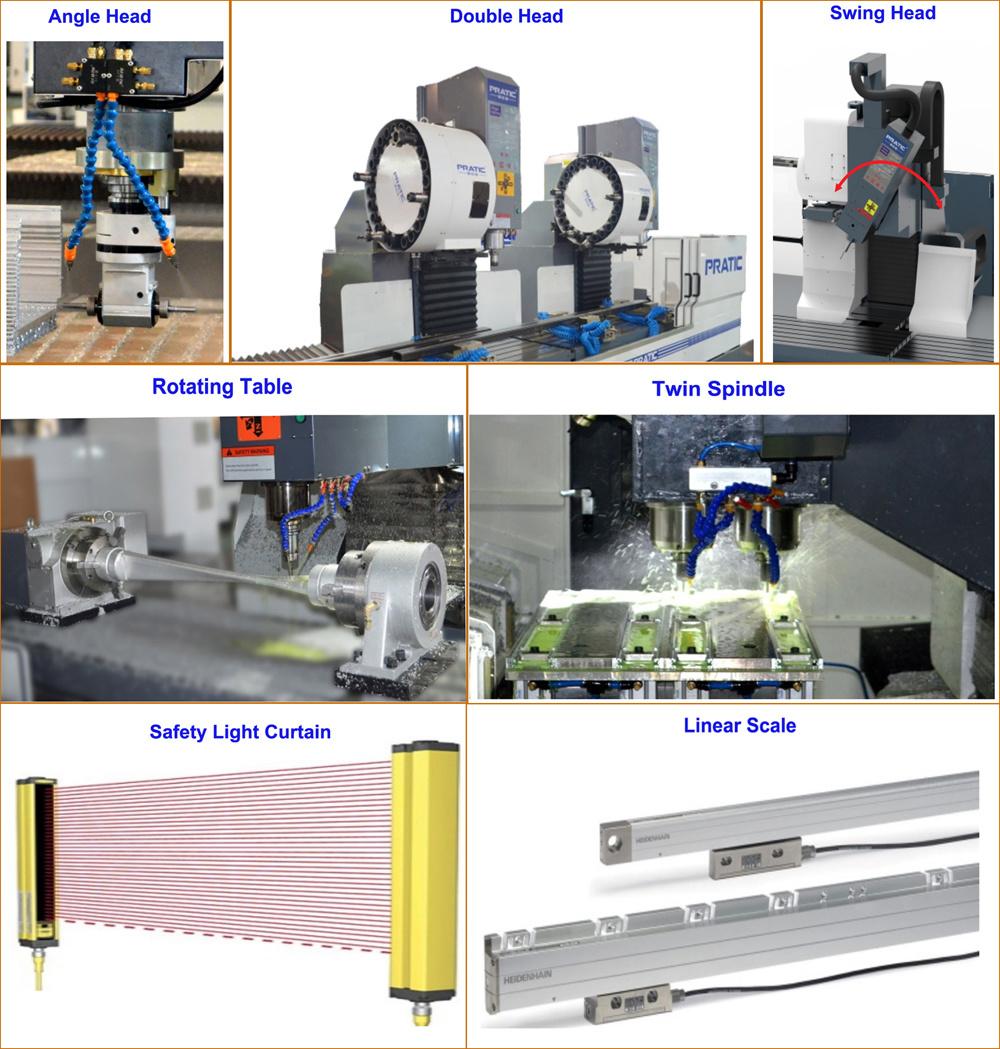

Option Feature

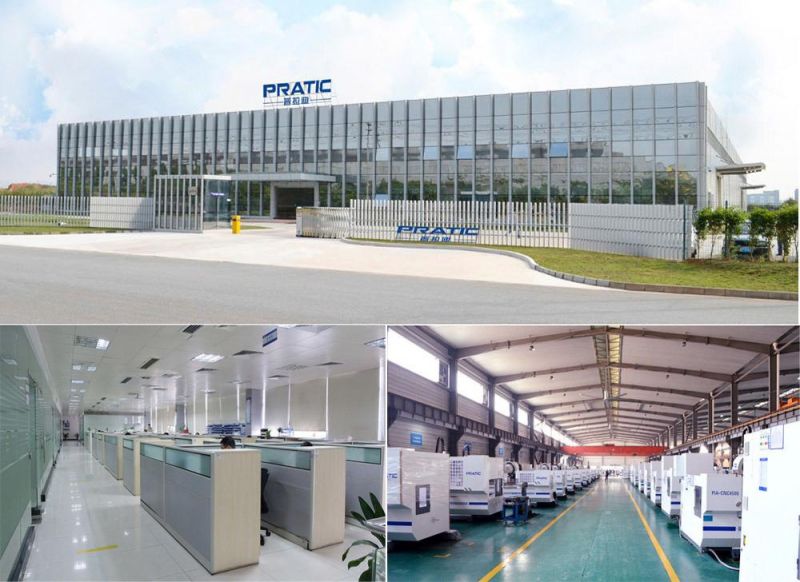

About PRATIC

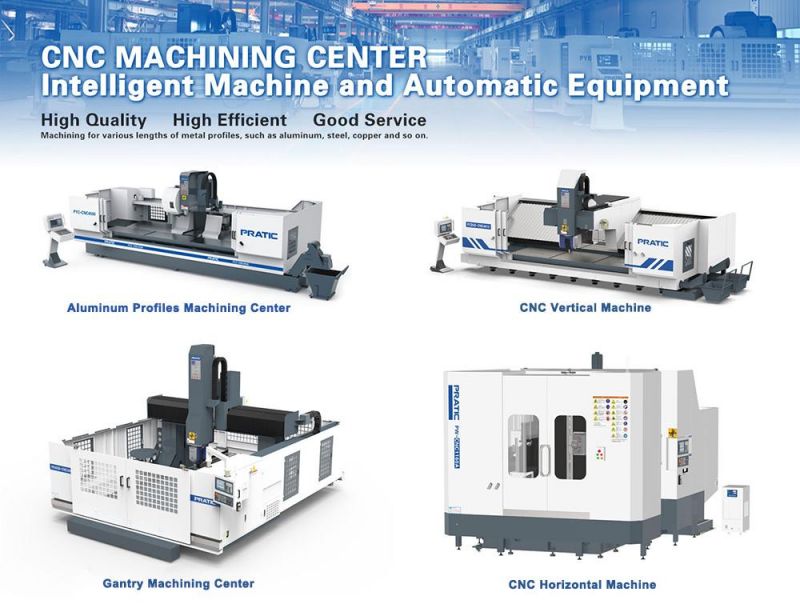

PRATIC CNC Technology Co., Ltd. is a reputable manufacturer from China that specializes in CNC machining center and automatic machinery. Our products cover a wide range of CNC machining centers for an effective metal machining. Diverse materials from aluminum,steel, composites to plastics can be machined precisely, productively and economically on the milling machines from PRATIC.
Company Strength
1) R&D Team & International Standards
PRATIC owns a design & research team of more than 30 people. PRATIC continuously challenges the technology difficulties, break the limitation of the industry, and carry out deep cooperation with the companies from Germany, Japan, South Korea and Singapore.
PRATIC operates according to a strict quality system and PRATIC has got the international ISO9001 qualification, and PRATIC machining centers are produced by the international standards, and all the moldes of PRATIC machining centers have got CE certificates.
2) Lean Management & After-sale Service
PRATIC carries out 5s management, visible management and demand-oriented management to ensure the effectiveness and efficiency in production and daily operation.
PRATIC offers Free Installing, Free Training, Timely Delivery and Reassuring After-sale Service. Your questions will be answered and your problem will be solved in quickest time! In some countries we have local agents who will offer you the best local after-sale service and maintenance!
3) Quality Assurance: PRATIC enforces the strictest inspections and tests to its each machining center as well as components & workpieces.

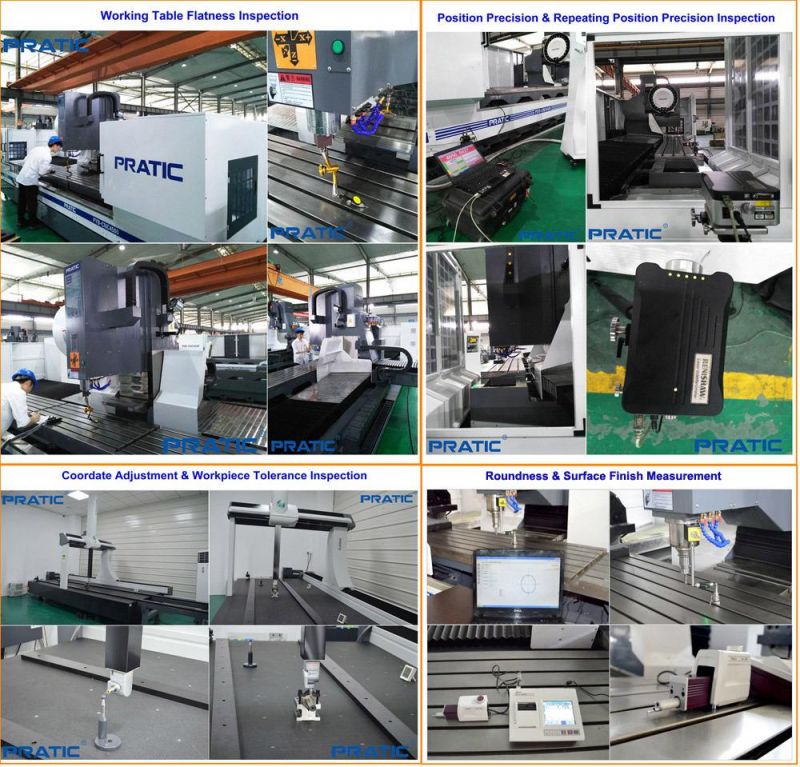

Inspections & Tests: Flatness Inspection, Parallelism Inspection, Position Precision Inspection, Repeating Position Precision Inspection, Three-Coordinate Inspection, Long-Time Run Test...
All the inspections and tests are carried out to ensure each machining center is in 100% perfect condition when delivered to customers!
FAQ
Q1: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC machining center, then let us give you perfect solutions and suggestions.
Q2: When I got this machine, but I don't know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
Q4: Before sending me an inquiry on our machine, it is better for you to provide me the following information
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.
