Metallic Processing Machinery

2021 New Design Elastomer (PU) Corrugated Flexible Metal Hose Manufacturing Machine

Comflex Industrial Co., Ltd.
  • After-sales Service:Available
  • Warranty:One Year
  • Product Name:PU Metal Hose Machine
  • Material:SUS304, 321 and 316L
  • Wall Thickness:0.3-1.0mm
  • Control:PLC Control

Base Info

  • Model NO.:Comflex
  • Strip Thickness:0.18-0.3mm
  • Diameter:DN25-100mm
  • Length:L=4000mm
  • DN:DN50-DN150
  • Width of Stripe:100-471mm
  • Pitch Distance:5-15mm
  • Transport Package:Standard Seaworthy Packing
  • Specification:ISO9001
  • Trademark:HLT
  • Origin:Jiangsu Wuxi
  • HS Code:84819010
  • Production Capacity:5000PC,Year

Description

Hydraulic Hose Making MachineMachine Type No.HLT-H-100Technical DataApplication of the hose: water, oil, steam
Size range: DN25 up to DN100
Wall thickness: 0.2-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
PLC:Siemens
Material: sus304, 321 and 316L
Power:4-7KW
Outer dimensions:15000*1100*1700Packing details Polywood box and standard palletMOQ1 setWarranty1 yearPayment termsT/T, L/C, D/P, Western union Hydraulic Hose Making MachineMachine Type No.HLT-H-150Technical DataApplication of the hose: water, oil, steam
Size range: DN32 up to DN150
Wall thickness: 0.2-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
PLC:Siemens
Material: sus304, 321 and 316L
Power:4-7KW
Outer dimensions:15000*1100*1700Packing details Polywood box and standard palletMOQ1 setWarranty1 yearPayment termsT/T, L/C, D/P, Western union
DNActual IDWall thickness
(mm)
Width of s.s. strips(mm)Height of convolutionPitch distance
(mm)
DN3231.50.310075
DN4039.50.312586
DN5049.70.315787
DN6564.70.320498
DN8079.50.4251109
DN10099.50.53141110
DN125124.60.53931312
DN150149.40.64711515

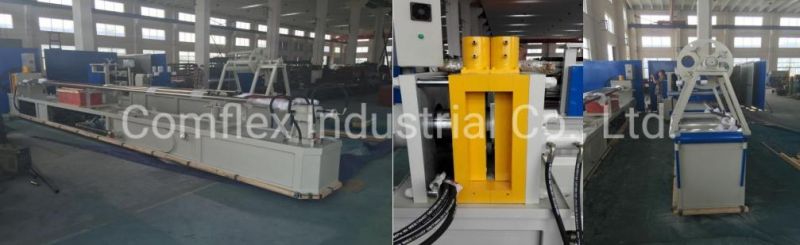

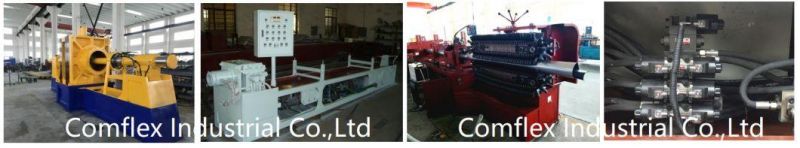

The detail pictures of hydrawlic hydraulic metal hose making machine:
2021 New Design Elastomer (PU) Corrugated Flexible Metal Hose Manufacturing Machine

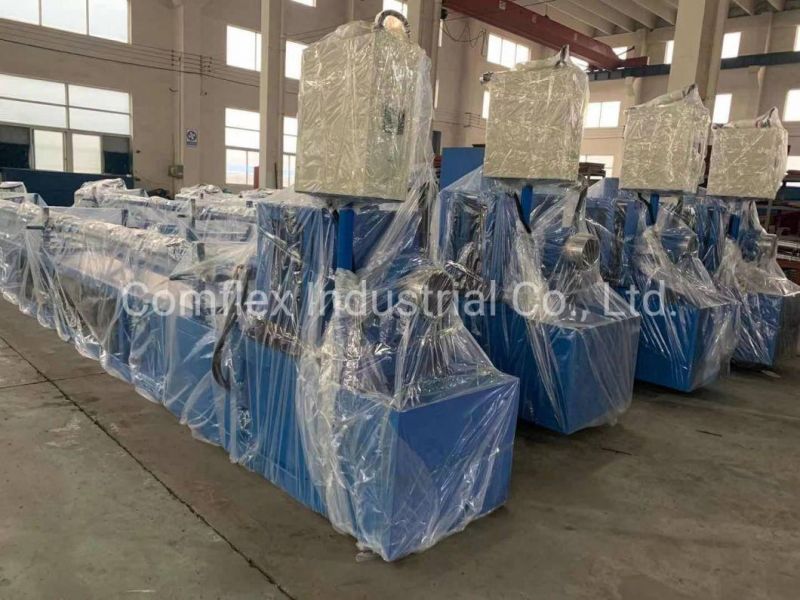

Ready For Shipment:
2021 New Design Elastomer (PU) Corrugated Flexible Metal Hose Manufacturing Machine
2021 New Design Elastomer (PU) Corrugated Flexible Metal Hose Manufacturing Machine

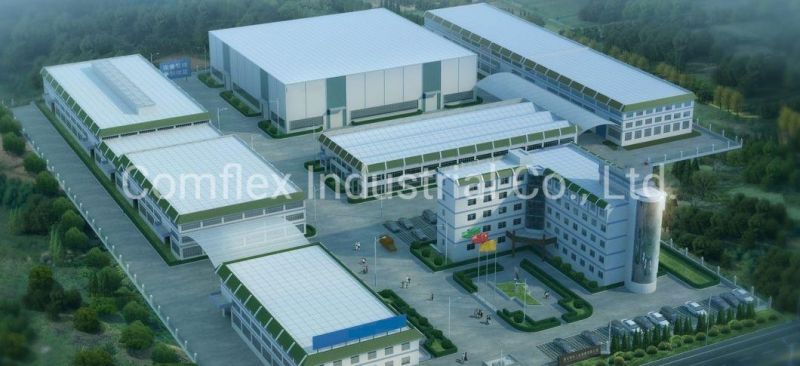

Factory Site:
We are the professional manufacturer of all types of metal flexible metal hose and machinery, such as corrugated metal hose, square lock and interlock hose/ conduit with more than 25 years of experience. The hoses are widely used in many industries: gas hose, water hose ,chemical hose, etc..Annular and corrugated metal hose: ID8 till ID600 on different machine.
2021 New Design Elastomer (PU) Corrugated Flexible Metal Hose Manufacturing Machine
2021 New Design Elastomer (PU) Corrugated Flexible Metal Hose Manufacturing Machine

FAQ
Q: Why choose us for the metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machines can you make?
A: Hydraulic metal hose forming machine
  a:DN16-65mm   b:DN25-DN100mm   c:DN32-150mm  d:DN50-300mm  e:DN80-400mm
B: Mechanical hose making machine
  DN8-50mm
C: PU/ Elastomer Metal Hose Making Machine
 a:DN12-100   b: DN50-150   c:DN12-65
Q: Can the hose forming machine be used for bellow making?
Yes, all the above hose forming machine can be used for bellow making as well


We need to know the following information to quote you the correct machinery:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air-conditional hose, etc.
3.Wall thickness
