• Model NO.：as the drawing
• Application Range：Widely
• Transport Package：Woodern Case
• Specification：Export package
• Trademark：FANGLE
• Origin：China
• Production Capacity：60000tons,Year

Basic Info.

Model NO. as the drawing Application Range Widely Transport Package Woodern Case Specification Export package Trademark FANGLE Origin China Production Capacity 60000tons/Year

Product Description

Description

Cold rolling mill intermediate Roll applies to high precision 6-Hi
(as well as a few 8-Hi) mill, named from working location between work roll and back-up roll, mainly used to control the shape of strip. Material specification of 2%Cr, 3%Cr, 5%Cr, Semi-High Speed Steel are available.
Table.1 Physical Performances


Symbol	Hardness	Hardness Uniformity	Depth of hardness	Size
9Cr2Mo	85-102 HSD	3HSD	8~15mm	¢200-600mm
MC3	85-102HSD	3HSD	15-30mm	¢200-1000mm
MC5	85-102HSD	3HSD	20-40mm	¢300-1000mm

Table.2 Roll Applications


Symbol	Type of material	Application for cold mills
9Cr2Mo	2%Cr	Work rolls for general 4 HI mill
MC3	3% Cr	Work rolls and intermediate rolls for reverse cold mills.
MC5	5% Cr	Work rolls for tandem mill and skin pass mil

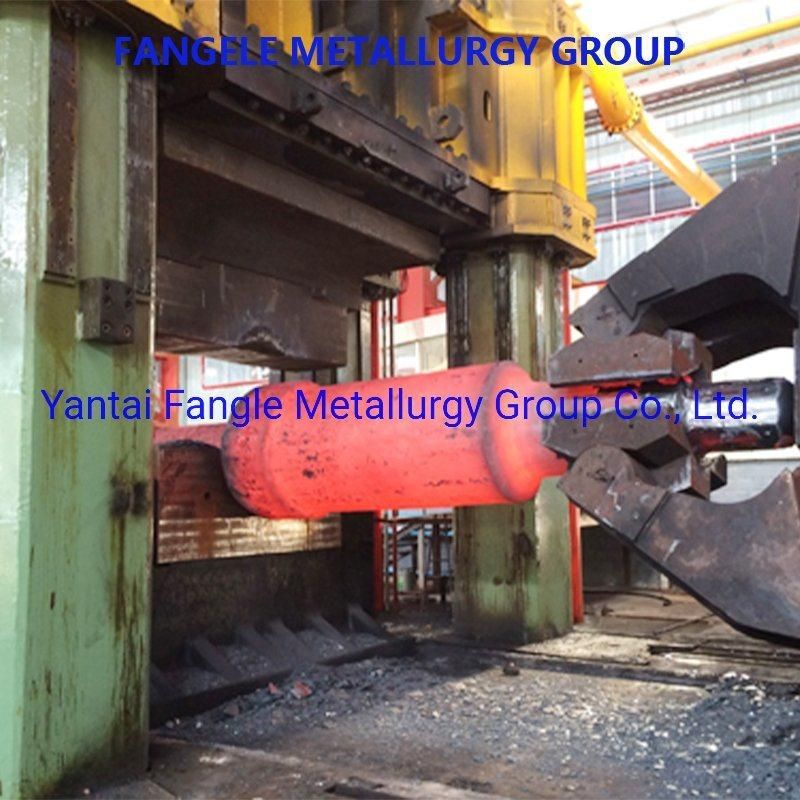

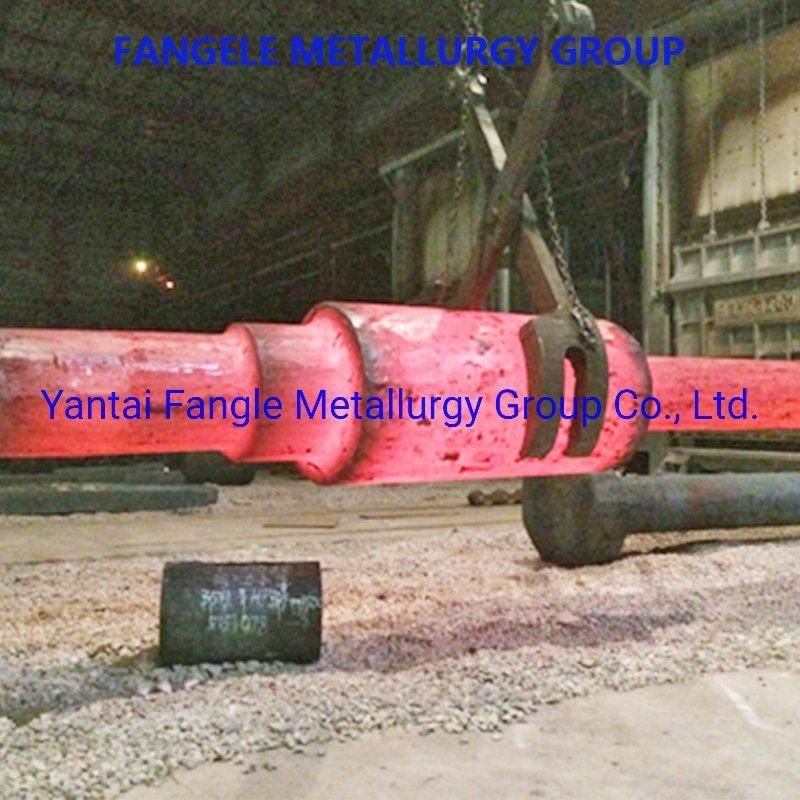

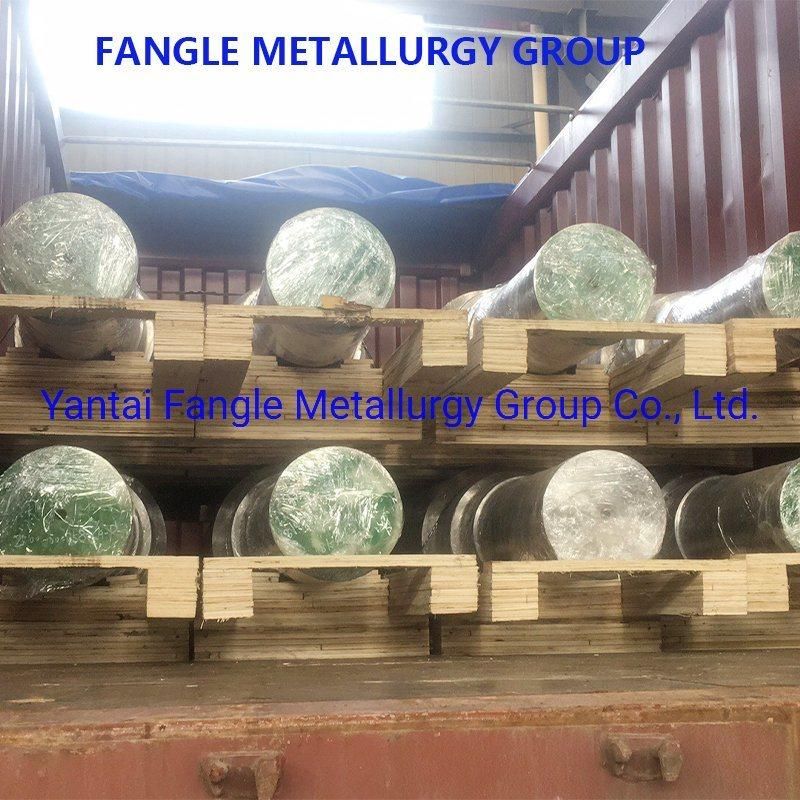

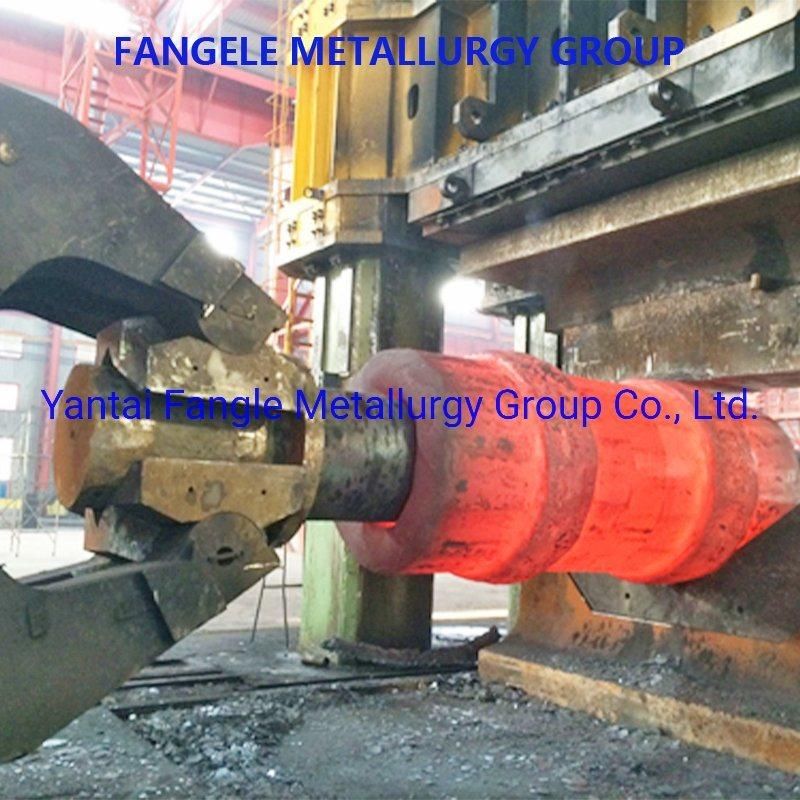

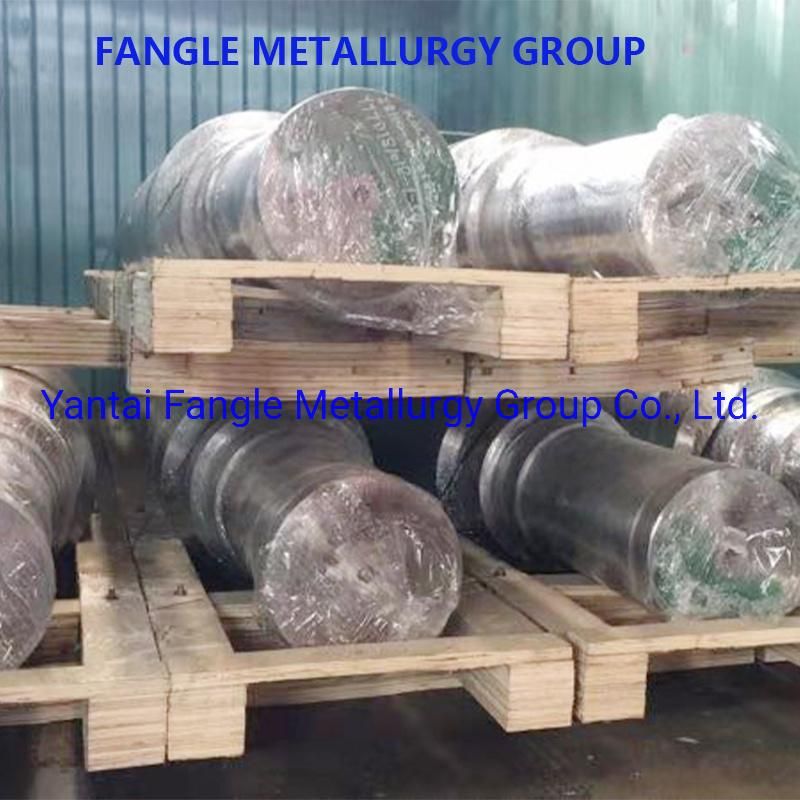

Products show:







Customer Visit

Certificate:
