Dx 312 Ridge Cap Roll Forming Machine

Cangzhou Dixin Roll Forming Machine Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Mold Forging
  • Power Source：Electric
  • Feature：Automation
  • Certification：CCC, ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：DX 312
  • Customized：Customized
  • Advantage：Easy to Maintenance
  • Condition：New
  • Feeding Width：500mm or as Your Design
  • Finial Product：312-120-42 Roof Ridge Tile
  • Main Motor：4 Kw
  • Pump Motor：4 Kw
  • Shaft Diameter：75mm
  • Forming Steps：13 Rows
  • Main Frame：250 H,U Steel
  • Forming Speed：2-6 Meter,Min
  • Machine Size：7000mm*800mm*1400mm
  • Transport Package：Waterproof Package
  • Specification：DX 312 ridge tile
  • Trademark：DIXIN
  • Origin：China, Hebei
  • HS Code：84552210
  • Production Capacity：15 Sets Per Month

Description

Basic Info.

Model NO. DX 312 Customized Customized Advantage Easy to Maintenance Condition New Feeding Width 500mm or as Your Design Finial Product 312-120-42 Roof Ridge Tile Main Motor 4 Kw Pump Motor 4 Kw Shaft Diameter 75mm Forming Steps 13 Rows Main Frame 250 H/U Steel Forming Speed 2-6 Meter/Min Machine Size 7000mm*800mm*1400mm Transport Package Waterproof Package Specification DX 312 ridge tile Trademark DIXIN Origin China, Hebei HS Code 84552210 Production Capacity 15 Sets Per Month

Product Description

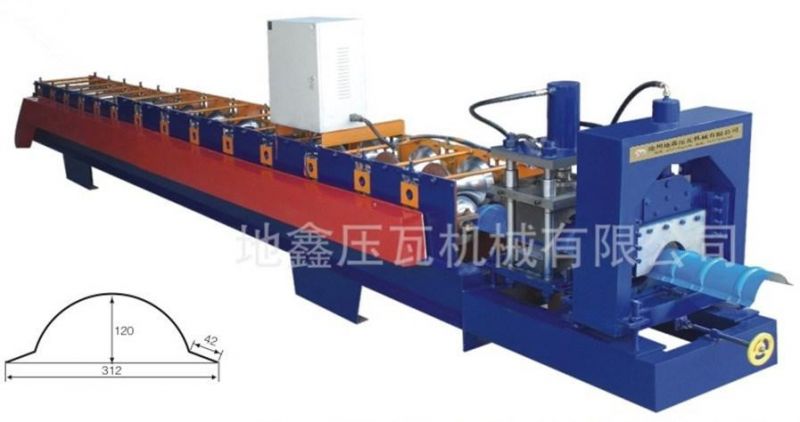

Dx 312 ridge cap roll forming machine
Details of Parameters
1. Configurations: Manual decoiler, guiding platform, main machine of roll forming, cutting device, output table, electro-motor, hydraulic station, PLC control system
2. Processing material: Aluminium sheet/galvanized steel sheet/color steel sheet
3. Material thickness: 0.3-0.8mm
4. Effective width: 312 mm
5. Feeding width: 500 mm
6. Main motor power: 4 kw
7. Pump power: 4 kw
8. Shaft diameter: 75mm
9. Forming steps: 13 steps
10. Main frame: 300H steel
11. Medium plate thickness:14 mm
12. Control system: PLC computer control with inverter
13. Power supply: 380V, 3 Phase, 60Hz
14.Overal sized: 7000mm*800mm*1400mm
15. Total weight: About 2.5 tons

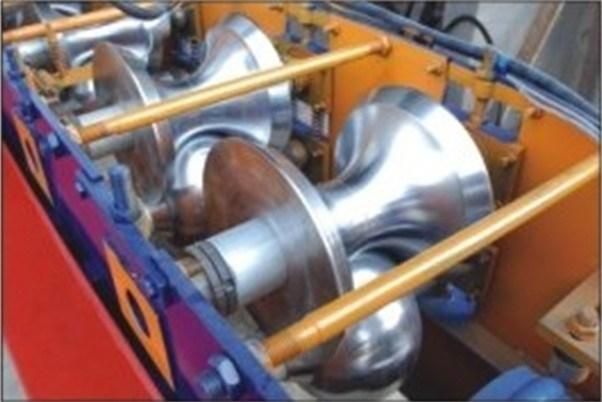

16. Roller material: High grade NO. 45 forged steel, with hard chrome plating
17. Shaft material: High grade NO. 45 carbon wrought steel
18. Cutter material: Cr12 mould steel with quenched treatment.

Consist of/Whole production line

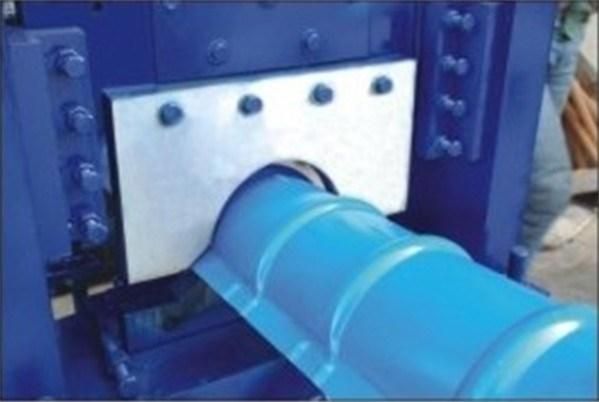

Manual uncoiler---feeding device---rolling form---speed, length, pieces set by PLC---hydraulic mold post cutting---collection table

Package:


Dx 312 Ridge Cap Roll Forming Machine

Dx 312 Ridge Cap Roll Forming Machine
Dx 312 Ridge Cap Roll Forming Machine
Dx 312 Ridge Cap Roll Forming Machine

13 forming steps in a 20 foot container
1 Direct manufacturer Since 2008
2 Golden customer evaluation and complete after-sale service
3 CE,SGS,BV,TUV--
4 Custom design to satisfy trader,factory or personal use
5 Environmental protection production line ,no harm to environment and animal
6 Easy communication and feedback,professional advice for free
7 Engineer service in your factory available and economic
