Speed Adjustable Telescopic Channel Drawer Slide Channel Production Machine
Suzhou Shengrui International Trading Co.,Ltd- Type:Rolling Machine
- Forging Forming Method:Mold Forging
- Power Source:Electric
- Feature:Automation
- Certification:ISO9001, CE
- Warranty:12 Months
Base Info
- Customized:Customized
- Advantage:Easy to Maintenance
- Condition:New
- Thickness:0.8-1.5mm
- Length:0.5-3m
- Transport Package:Shipping, Rain-Roof
- Specification:800*1000*12000
- Trademark:Shengrui
- Origin:Zhangjiagang City
- HS Code:8455221000
- Production Capacity:10 Sets,Month
Description
Basic Info.
Customized Customized Advantage Easy to Maintenance Condition New Thickness 0.8-1.5mm Length 0.5-3m Transport Package Shipping, Rain-Roof Specification 800*1000*12000 Trademark Shengrui Origin Zhangjiagang City HS Code 8455221000 Production Capacity 10 Sets/MonthProduct Description

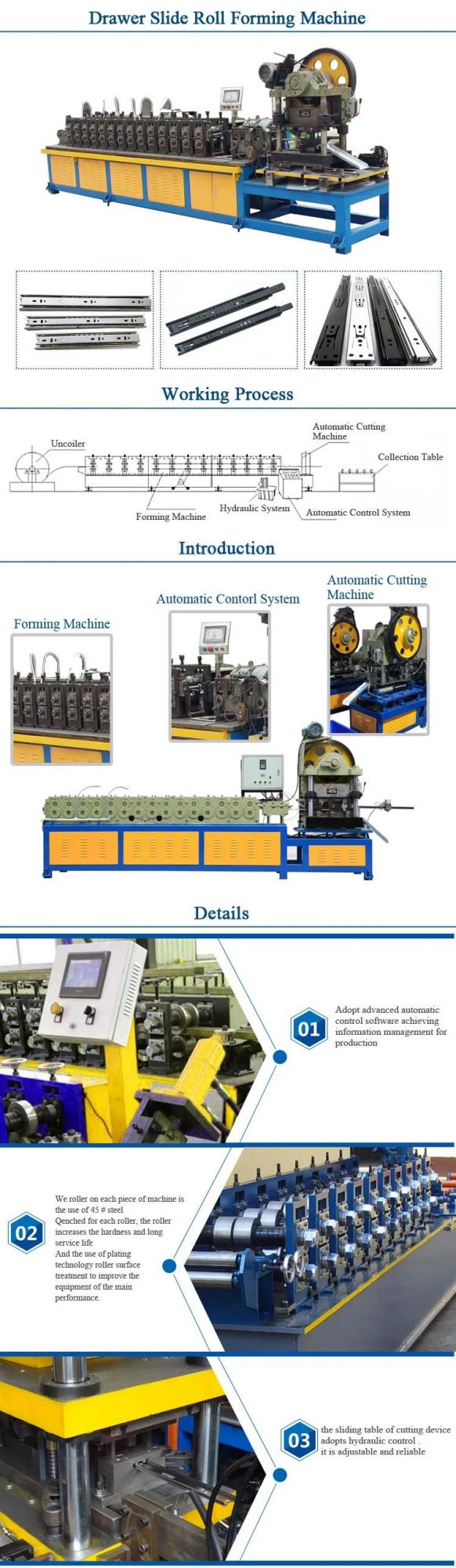

Factory selling price customized design PLC control drawer slide rail roll forming machine
Description | Drawer Slide/Telescopic Channel Rolling Machines |
Material | Q235 or Stainless Steel |
Thickness | 0.8-1.5mm |
Length | 0.5-3M |
Product Optional | Drawer slides in 30mm, 32mm, 35mm, 37mm, 42mm, 45mm, 53mm, etc |
Feature | 3-fold Ball Bearing |
Main Motor Power | 11Kw |
Forming Speed | 6-10m/Min |
Shaft Diameter | 50mm |
Electrical System | Delta PLC Control |
Machine Size | 800*1000*12000mm |
Weight | 2.5T |
Item Name | Decription | Quantity |
Roll Forming Machine | 12/14 Nos. Roll; with Punching & Cutting Mould;-for inner slide, middle slide, outer slide | 3 sets |
Ball Cage Production Line | 25T punch press + feeder + motor decoiler | 1 set |
Auto Ball Assembling Device | For ball cage & steel balls & middle slide & oiling | 1 set |
Outer Slide Oil Adding Device | For outer slide oiling | 1 set |
Ball Pressing Machine | For plastic strip assembling with steel balls | 1 set |
Rivet Assembling Machine | For rivet assembling with plastic piece | 1 set |
End Bending Power Press | With Bending Mould -for outer slide end bending | 1 set |
Adjustment Power Press | Final step for QC; with Adjustment Mould - for slides tighten or loosen | 3 sets |
