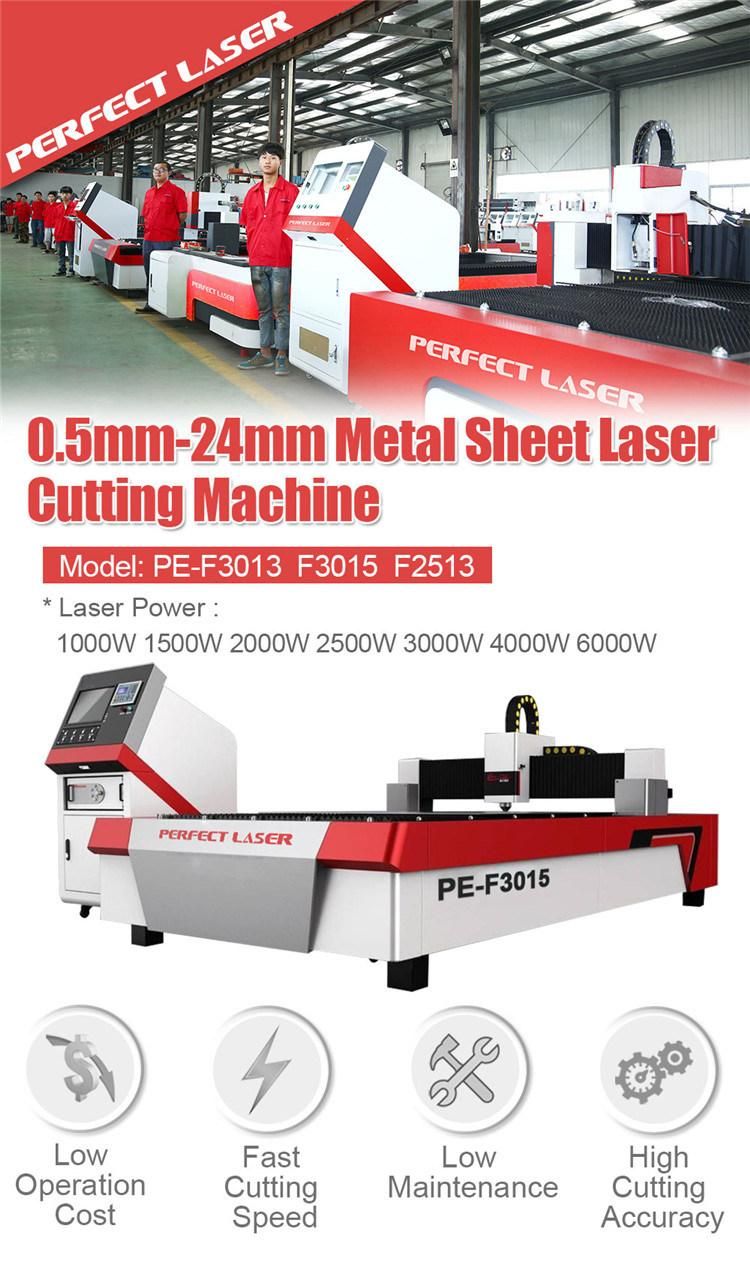

Hot Sale 1000W Fiber Laser Cutting Machine
Perfect Laser (Wuhan) Co., Ltd.- Customized:Non-Customized
- Layout:Horizontal
- Cutting Material:Copper, Carbon Steel, Stainless Steel
- Power Source:Hydraulic Pressure
- Cutting Mode:Laser Cutting
- Model:PE-F1000-3015
Base Info
- Model NO.:PE-F1000-3015
- Laser Type:Fiber Laser
- Working Area:1500*3000mm
- Power:1000W
- Cutting Depth:1-16mm
- Applied Material:Stainless Steel, Carbon Steel etc.
- Laser Source:German Dlaser, American Ipg
- Servo Motor:Japan Original Motor
- Warranty Period:12 Months
- Transport Package:Exporting Standard Package
- Specification:ISO,CE certificate
- Trademark:Perfect Laser
- Origin:China
- HS Code:8456100090
- Production Capacity:5000 Sets,Year
Description
Basic Info.
Model NO. PE-F1000-3015 Laser Type Fiber Laser Working Area 1500*3000mm Power 1000W Cutting Depth 1-16mm Applied Material Stainless Steel, Carbon Steel etc. Laser Source German Dlaser/ American Ipg Servo Motor Japan Original Motor Warranty Period 12 Months Transport Package Exporting Standard Package Specification ISO/CE certificate Trademark Perfect Laser Origin China HS Code 8456100090 Production Capacity 5000 Sets/YearProduct Description
Hot Sale 1000W Fiber Laser Cutting MachineModel | PE-F1000-3015 | PE-F2000-3015 |
Laser Power | 1000W | 2000W |
Laser Type | Imported Fiber Laser | Imported Fiber Laser |
Laser Technology | Germany Technology | Germany Technology |
Working area | 1500*3000 mm | 1500*3000 mm |
Max. cutting speed | 15m/min (up to materials) | 18m/min (up to materials) |
Cooling Way | Air Cooling | Air Cooling |
Laser wavelength | 1070nm | 1070nm |
Minimum line width | ≤0.1mm | ≤0.1mm |
Cutting depth | 0.2-10mm | 0.2-14 mm |
Driving way | Imported servo motor | Imported servo motor |
Transmission way | imported ball screw | imported ball screw |
---Feature of Fiber Laser Cutting Machine:
Adopting World Famous Germany Dlaser Fiber laser source and USA Laser Mech cutting head & Dynamic Focus System, it can cut and punch different kind of metal material with high precision and high speed.
Since laser is transmitted by fiber, it is no need to maintenance or adjusts the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
Large format cutting area meets the demands of various kinds of metal processing.
---Advantages of Fiber Laser Cutting Machine:
1) Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
2) High cutting speed: Cutting speed is more than 20m/min
3) Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100, 000 hours;
4) High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has three times photoelectric conversion efficiency
5) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
6) Easy operations: Fiber line transmission, no adjustment of optical path;
7) Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.
FAQ:
Please let us know following informations:
1.What kind of materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX. dimension of your materials ?
4. After cut, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
