Oil Tempered Spring Wire Production Line
Turnkey Project of Oil Tempered Spring Wire Production Line with Induction Heating Technology



Turnkey Project of Oil Tempered Spring Wire Production Line with Induction Heating Technology

Turnkey Project of Oil Tempered Spring Wire Production Line with Induction Heating Technology


I. Whole Work Flow:

Pay off → Pinch rolls set No. 1 → HV-Straightener → Pinch rolls set No. 2 → Cleaning unit → Induction Quenching No.1 → Induction Quenching No.2 → Induction Quenching No.3 →Heat holding → Jet-cooling for Quenching → Induction Tempering →Heat holding → Jet-cooling for  Tempering → Flaw detector → Pinch rolls set No. 3 → Oiler → Shearing → Wire separating → Wire take-up


II.  Main Technical Parameters:
No.ItemSpecification
1Raw materialsteel grades SiCr and SiCrV classes FD, TD, VD
2Diameterφ8,0 - φ16,0 mm
3Working speedΦ9.0mm--20m/min;
φ14.5mm-7.5m/min
4Induction quenching temp.≤1000ºC constant and adjustable (920-1000ºC)
5Induction tempering temp.≤650ºC constant and adjustable (450-650ºC)
6Temp. control accuracy≤ ±5ºC
7Take-up coil dimensionφ1700-φ2200mm
8Max. Take-up coil weight≥2000kg
9Center elevation1000mm
10Production methodContinuous production
11Finished products1) Spring wires produced by this production line would keep uniform and straight;
2) Products keep consistence with EN10270-2:2011, tensile strength fluctuation of the same coil of spring wire would be ≤50MPa

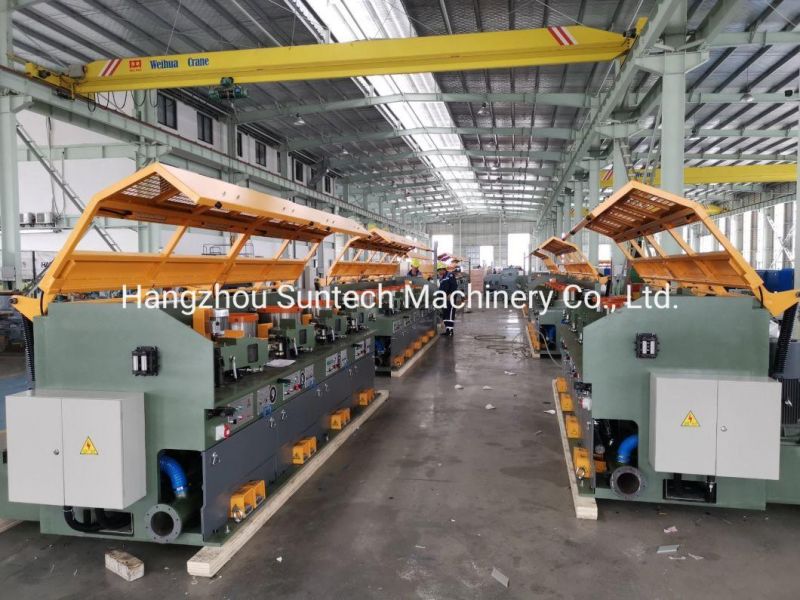

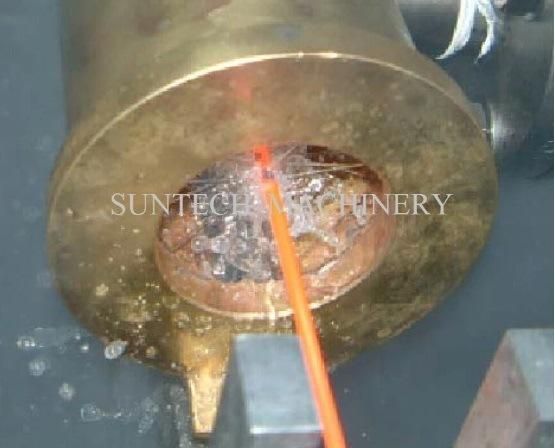

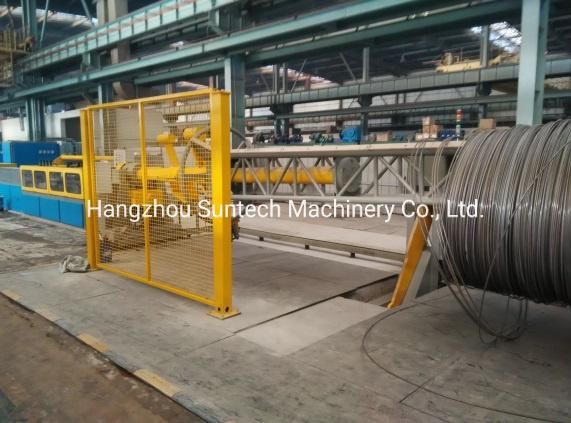

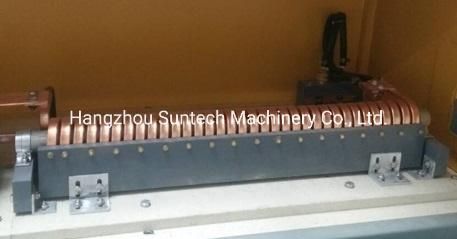

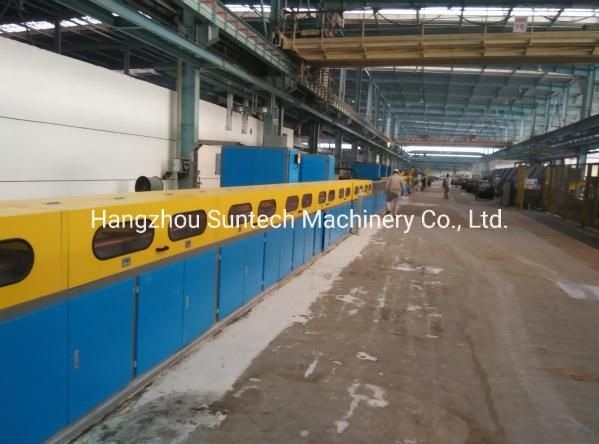

III. Details of machine for reference:

Turnkey Project of Oil Tempered Spring Wire Production Line with Induction Heating Technology


Turnkey Project of Oil Tempered Spring Wire Production Line with Induction Heating Technology

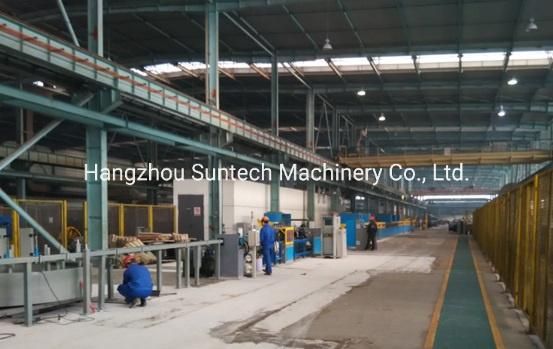

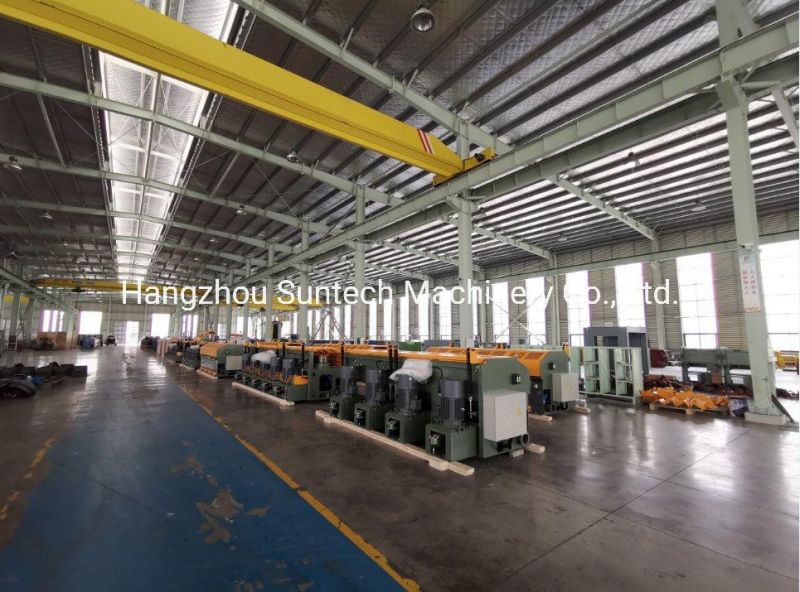

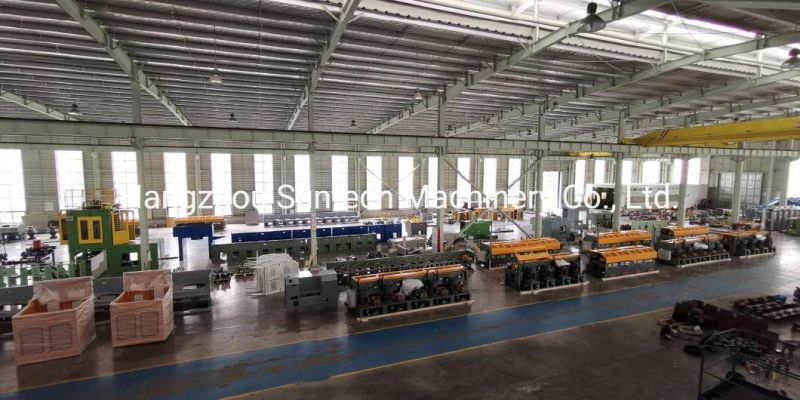

IV. Our Workshop:
Turnkey Project of Oil Tempered Spring Wire Production Line with Induction Heating Technology

Turnkey Project of Oil Tempered Spring Wire Production Line with Induction Heating Technology

Turnkey Project of Oil Tempered Spring Wire Production Line with Induction Heating Technology




V. Clients list for reference:
Turnkey Project of Oil Tempered Spring Wire Production Line with Induction Heating Technology
