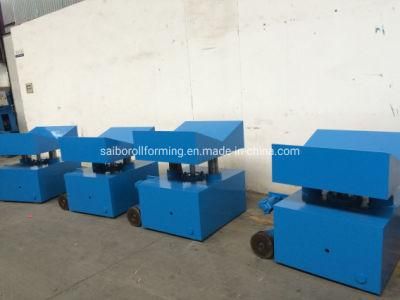

Color Steel Roll Forming Machine Loading Coil Cart
Zhangjiagang City Saibo Science & Technology Co., Ltd.- Product Name：10t Hydraulic Coil Car
- Working Jonurney：Max 250mm
- Moving Journey：Max 3 Meters
- Transport Package：No Packing
- Trademark：SAIBO
- Origin：Jiangsu, China
Base Info
- Model NO.：10Tons
- HS Code：84559000
- Production Capacity：1000set,Year
Description
No.Item Description 1 Coil width max. 1300mm 2 Material thickness 0.2mm-10mm 3 Function The coil car can work up/down and forward/reverse. 4 Guide Rail There are two lines to guide the coil car into the decoiler. 5 Guide length 4m 6 Max loading tons 20Tons color steel roll forming machine loading coil cart
Specification of ComponentsNo Technical Specification & Remark 1 Coil car
1. The coil car can work up/down and forward/reverse.
2. There are two lines to guide the coil car into the decoiler
3. Coil weight (Max):10000kg
4. Inter diameter of coil: 470mm-550mm
5. Working by hydraulic pressure: 8-12Mpa with connect with the decoiler hydraulic unit
6. Working lift journey: Maximal 250mm
7. Working function: forward and reverse movable
8. Move journey: maximal 3 meters
9. Quantity: 1
10. Color: blue or base on customer request 2 Hydraulic System
1. Hydraulic power: 5.5kw
2. Working pressure: 12Mpa adjustable
3. Solenoid valve: 1 group
4. Hydraulic oil: 46# hydraulic oil
5. Quantity :1
Main Features
1. Simple structure in linear type ,easy in installation and maintenance.
2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3. Running in a high automatization and intellectualization, no pollution
4. No need foundation, easy operation
Warranty: 1 year warranty from date of shipment
Guarantee:1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3: Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.
Specification of Components
2. There are two lines to guide the coil car into the decoiler
3. Coil weight (Max):10000kg
4. Inter diameter of coil: 470mm-550mm
5. Working by hydraulic pressure: 8-12Mpa with connect with the decoiler hydraulic unit
6. Working lift journey: Maximal 250mm
7. Working function: forward and reverse movable
8. Move journey: maximal 3 meters
9. Quantity: 1
10. Color: blue or base on customer request
1. Hydraulic power: 5.5kw
2. Working pressure: 12Mpa adjustable
3. Solenoid valve: 1 group
4. Hydraulic oil: 46# hydraulic oil
5. Quantity :1
Main Features
1. Simple structure in linear type ,easy in installation and maintenance.
2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3. Running in a high automatization and intellectualization, no pollution
4. No need foundation, easy operation
Warranty: 1 year warranty from date of shipment
Guarantee:1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3: Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.
