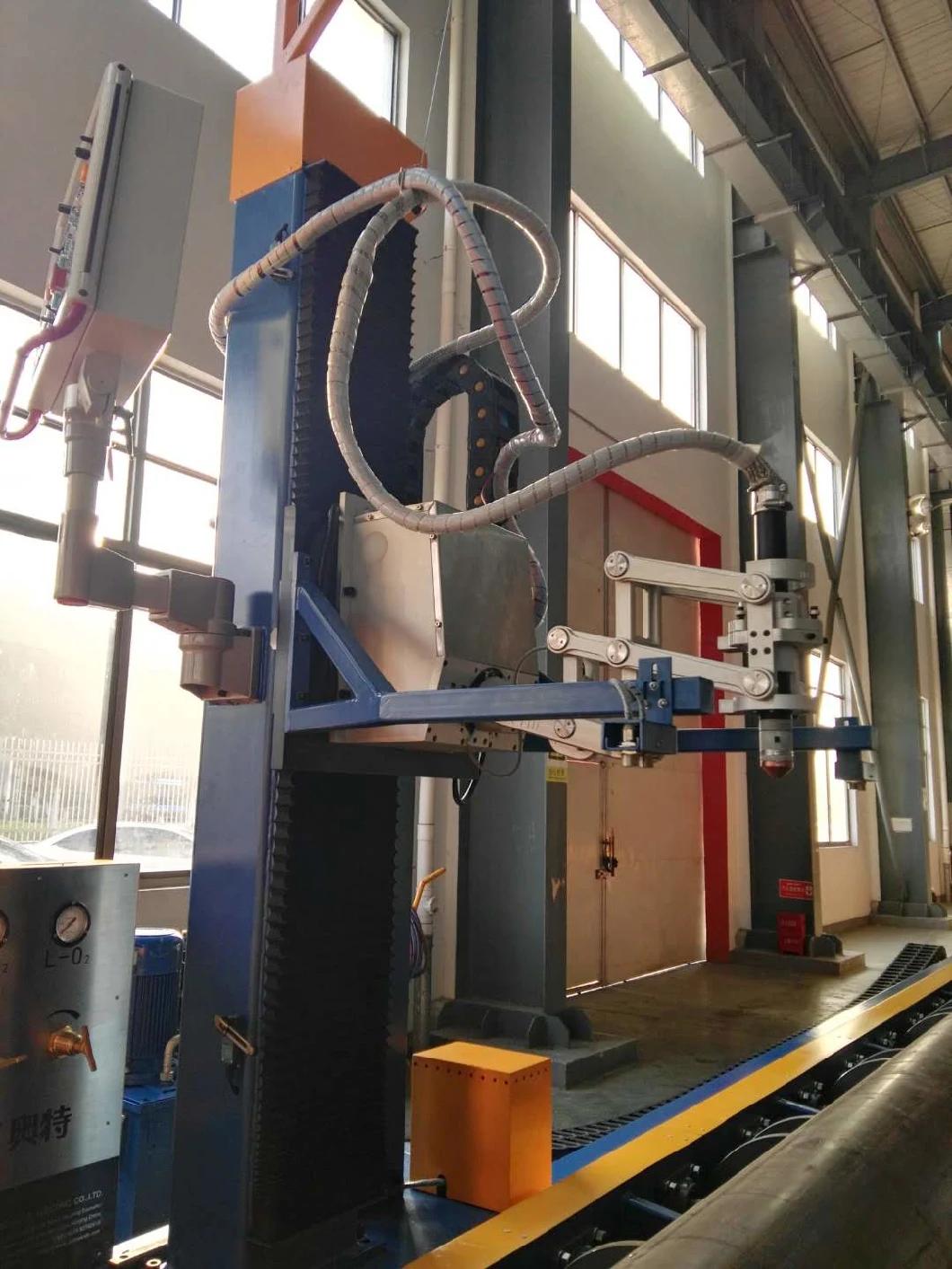

Chuck Type 5 Axis Flame and Plasma Cutting & Profiling Station
Nanjing Auto Electric Co., Ltd.- Customized：Customized
- Layout：Horizontal
- Cutting Material：Carbon Steel, Stainless Steel
- Automatic Grade：Automatic
- Power Source：Electric
- Cutting Mode：Plasma Cutting
Base Info
- Transport Package：Nude Packing
- Specification：Nude packing
- Trademark：NAEC
- Origin：China
Description
Basic Info.
Transport Package Nude Packing Specification Nude packing Trademark NAEC Origin ChinaProduct Description
| Suitable raw material | C.S, S.S, ALS |
| Suitable pipe diameter | 8"-48" |
| Suitable raw pipe length | 2000-12000mm |
| Cutting method | Flame/Plasma cutting |
| Cutting power source | US Hypertherm MAXPro200 |
| Flame cutting suitable pipe wall thickness | 3mm-80mm |
| Plasma cutting suitable pipe wall thickness | 3mm-50mm |
| Plasma profiling | C.S: 3mm-32mm, S.S: 3mm-25mm |
| Flame cutting gas | Oxygen, acetylene or propane |
| Plasma cutting gas | C.S: air, oxygen, S.S: air, nitrogen |
| Cutting speed | 150-1500mm/min |
| Longitudinal cutting torch beveling angle | -60°~+60° |
| Cutting torch lifting stroke | 1000mm |
| Cutting torch head traveling speed | 0-4500mm/min, servo driving |
| Chuck type pipe driving machine driving torque | 11500N.m(Suitable for pipe diameter 48", wall thickness 80mm rotation) |
| Chuck type pipe driving machine lifting stroke | 580mm, motorized |
| Max. pipe supporter load capacity each | 10000kg |
| Pipe supporter rotation method | Driven |
| Pipe supporter travelling method | Total 4 supporter, 2 motorized travel, 2 driven travel |
