CNC Shearing Machine
Anhui ZhongDe Machine Tool Co., Ltd.- Customized:Customized
- Layout:ISO 9001, Ce, SGS
- Cutting Material:Carbon Steel, Iron, Aluminum, Stainless Steel
- Automatic Grade:Automatic
- Power Source:Hydraulic Pressure
- Cutting Mode:Gas Cutting
Base Info
- Model NO.:QC12K-16×3200
- Voltage:380V 50Hz 3phase
- Control Axis:Back Gauge Position and Cut Times
- Main Motor:18.5kw
- Back Gauge Travel:25-800mm
- Weight:13000 Kg
- Max Cut Width:3200mm
- Max Cut Thickness:16mm Mild Steel
- Warranty:1 Year
- Shear Angle:20degree 20 Seconds
- Dimensions:L 3945*W 2042*H 1900 mm
- Transport Package:Base Framed by Channel Steel and Plastic Bag
- Specification:1 Unit
- Trademark:ZDMT
- Origin:China(Mainland)
- HS Code:84623990
- Production Capacity:100units,Month
Description
Basic Info.
Model NO. QC12K-16×3200 Voltage 380V 50Hz 3phase Control Axis Back Gauge Position and Cut Times Main Motor 18.5kw Back Gauge Travel 25-800mm Weight 13000 Kg Max Cut Width 3200mm Max Cut Thickness 16mm Mild Steel Warranty 1 Year Shear Angle 20degree 20 Seconds Dimensions L 3945*W 2042*H 1900 mm Transport Package Base Framed by Channel Steel and Plastic Bag Specification 1 Unit Trademark ZDMT Origin China(Mainland) HS Code 84623990 Production Capacity 100units/MonthProduct Description

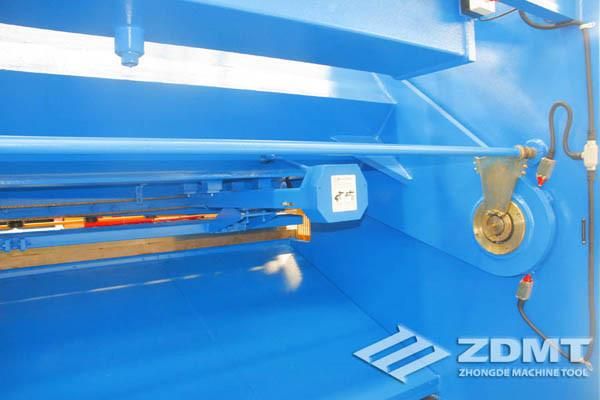

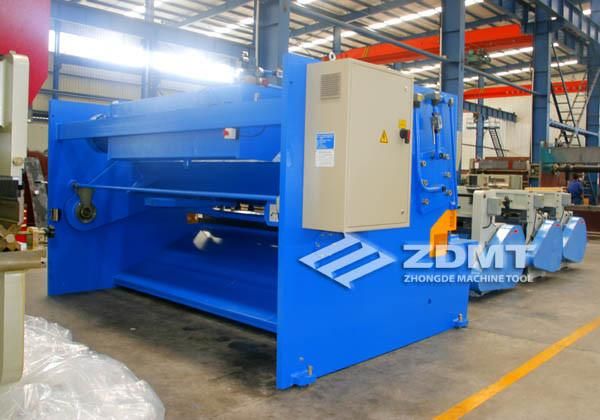

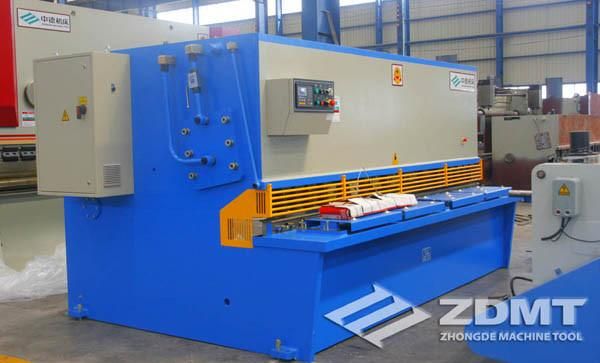

QC12K-16×3200 Hydraulic CNC Swing beam shearing machine with E200-S controllerFeatures:

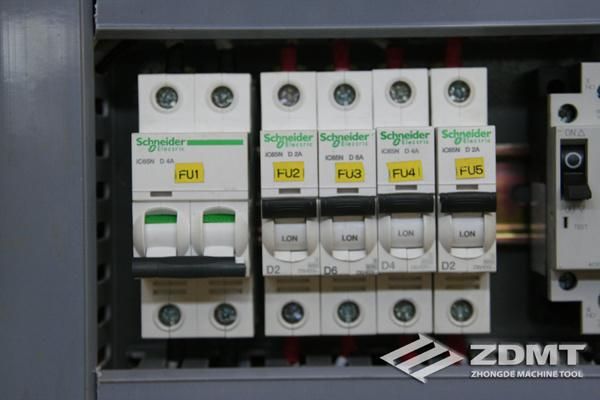

Main electrical elements: Schenider or Siemens
Maximum cutting thickness: Mild steel 16 mm Maximum cutting width: 3200mm
Strokes number: 5 to 15 times/minute
Throat depth: 150mm
Seal ring: Taiwan DZ
ESTUN E21S control backgauge and cutting time
Transducer: South Korea LG
Machine weight: 13, 000kg

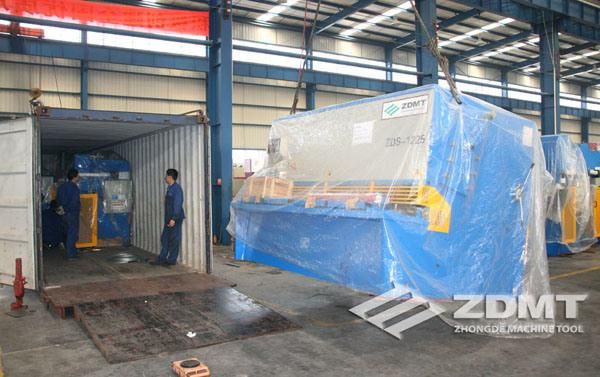

Shipment:
