• Model NO.：as the drawing
• Application Range：Piercer Mill,Plug Bar Assembly
• Transport Package：Woodern Case
• Specification：Cast steel, 35CrMo, H13, 20CrNi4 etc.
• Trademark：FANGLE
• Origin：China
• Production Capacity：30000tons,Year

Basic Info.

Model NO. as the drawing Application Range Piercer Mill,Plug Bar Assembly Transport Package Woodern Case Specification Cast steel, 35CrMo, H13, 20CrNi4 etc. Trademark FANGLE Origin China Production Capacity 30000tons/Year

Product Description

Cross roll piercing plug with material H13
Brief introduction
Rotary piercing is a very fast and dynamic rolling process that cross rolls the preheated billet between two barrel-shaped rolls at a high speed. The cross rolling causes high tensile stresses at the center of the billet. The design of the piercer rolls causes the metal to flow along the roll and over a piercer point as it exits the process. The piercer point is a high-temperature, water-cooled alloy tool designed to allow the metal to flow over it as a pipe shell forms from the rotary process. Once the pierced pipe shell is produced, it is immediately transferred to the floating mandrel mill.


Products Parameters

Materials	H13 forged
Dimension size range	customized as per the drawings
Hardness	38-42HRC
Dimension	Φ35-Φ105
Application	Pierce mill
Threading/Water jet	available
Steel pipes grade	carbon steel, alloy steel
Chemical compotision	C:0.32-0.45; Si:0.8-1.2;Mn:0.2-0.5;Cr:4.75-5.5;Mo:1.1-1.75;V:0.8-1.2; P:≤0.03;S:≤0.03

Products specification:Φ35-Φ105

Our Service:OEM&ODM

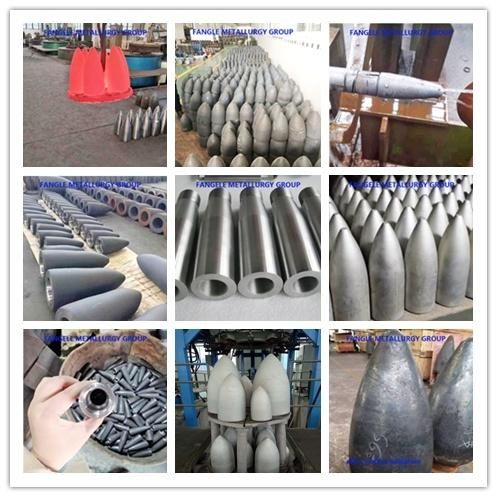

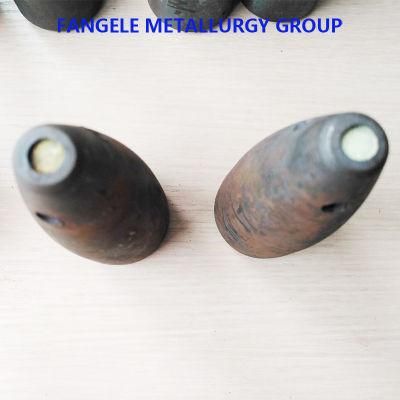

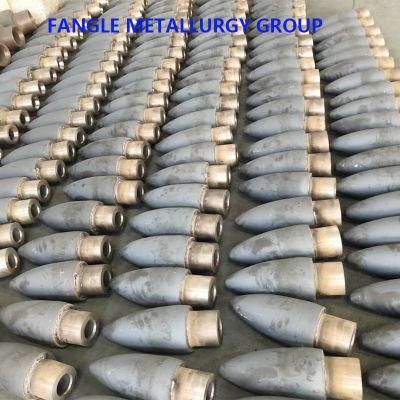

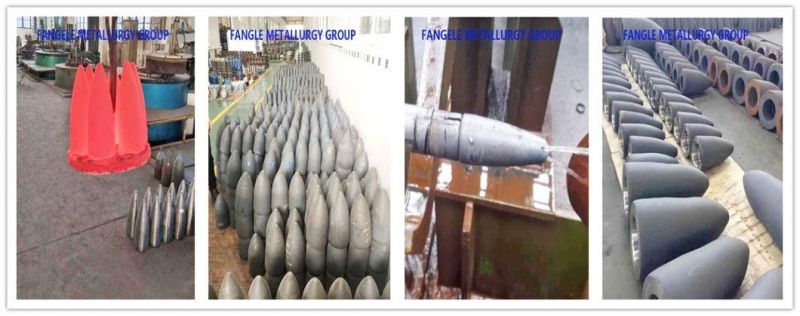

Products details

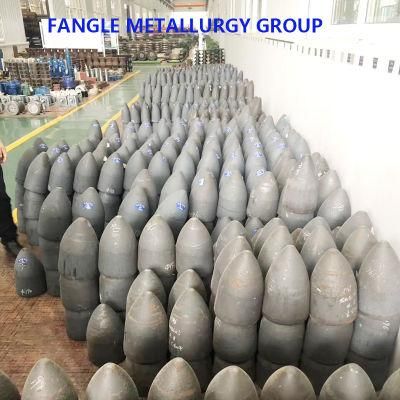

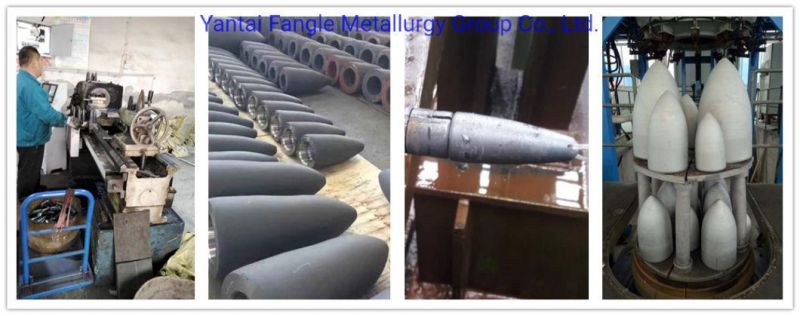

Workshop Show

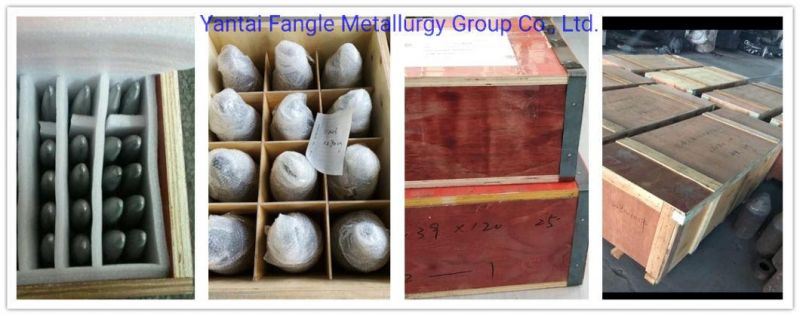

Package & Delivery



  Customers Visit

FAQ
Q:Are you a trading company or manufacturer?
A:FANGLE is an industry and trade integration company.

Q:I have some special requirement about specifications.
A:We have a well-rounded product range, which endows us with the capability of applying many special specifications. Please feel free to contact us with yours.

Q:Do you accept OEM service?
A:Yes, we do.

Q:What is your delivery time?
A:It depends on the size/complexity of your order and our own production schedule. Usually we provide a faster delivery than the industry's average.

Q:What is the payment term?
A:Our payment terms are negotiable.

Q:Can I have my own logo on the product?
A:Sure, we can apply your own logo on the products according to your drawings.
