• Model NO.：COLO-191S-B
• Condition：New
• Power Source：AC220V,110V
• Frequence：50-60Hz
• Power：50W
• Voltage Input：DC24V
• Voltage Output：100kv
• Max.Current Output：180
• Polarity：Negative
• Max Injection Capacity：650g,Min
• Brand：FF
• Transport Package：Carton
• Specification：CE ISO
• Trademark：FF
• Origin：Zhejiang Hangzhou
• HS Code：8424899990
• Production Capacity：1000sets,Month

Basic Info.

Model NO. COLO-191S-B Condition New Power Source AC220V/110V Frequence 50-60Hz Power 50W Voltage Input DC24V Voltage Output 100kv Max.Current Output 180 Polarity Negative Max Injection Capacity 650g/Min Brand FF Transport Package Carton Specification CE ISO Trademark FF Origin Zhejiang Hangzhou HS Code 8424899990 Production Capacity 1000sets/Month

Product Description

COLO-191S Manual Powder Coating Spray Gun

Can be replaced with original, suitabable for coating complex parts. Wit
COLO-08 GUN
COLO-62C POWDER HOPPER, 55L




Specification
Electrical Data
Input Voltage: 100-240V (Can be customized)
Frequency: 50Hz/60Hz
Temperature Range in use: -10~50^oC
Power Gun
Working Voltage: DC 24V
Output Voltage: 0-100Kv(Adjustable)
Output Current: 180uA(Max.)
Maximum Powder Injection: 600g/min
Polarity: negative (-)
Pneumatic data
Maximum input-air pressure: 10kg/cm
Optimum input-air pressure 6kg/cm
Minimum input-air pressure 4kg/cm
Maximum water vapor content or compressed air 1.4g/N m3
Maximum oil vapor content of compressed air0. 1ppm
Maximum compressed-air consumption 13.2 m3/h

COLO-191S POWDER COATING GUN Control Unit




Basic Function
 (1) Powder feeding adjustment and display
 (2) Supplementary air adjustment and display
 (3) Vibrating adjustment and display./Current adjustment and display
 (4) Gun cleaning adjustment and display./Voltage adjustment and display.

Pre-setting Function
 (6) Flat coating
 (7) Corner coating.
 (8) Re-coating.

Unique function of COLO-191S
(5)With digital valve, can saving coating programs

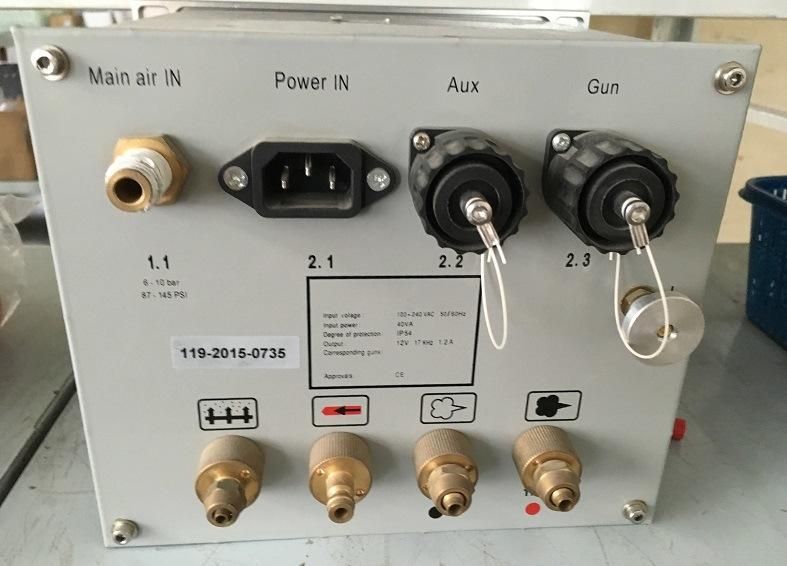

Back side view of control unit

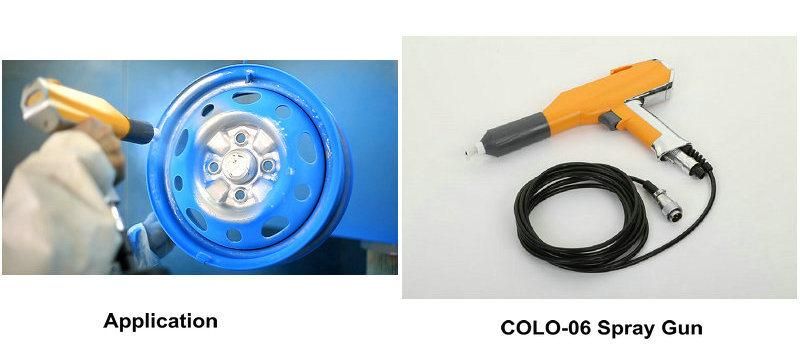

COLO-06 Manual Gun, match with COLO-151S, with functions of remote powder feeding adjustment. Can be replaced with OptiSelect.




Company Information

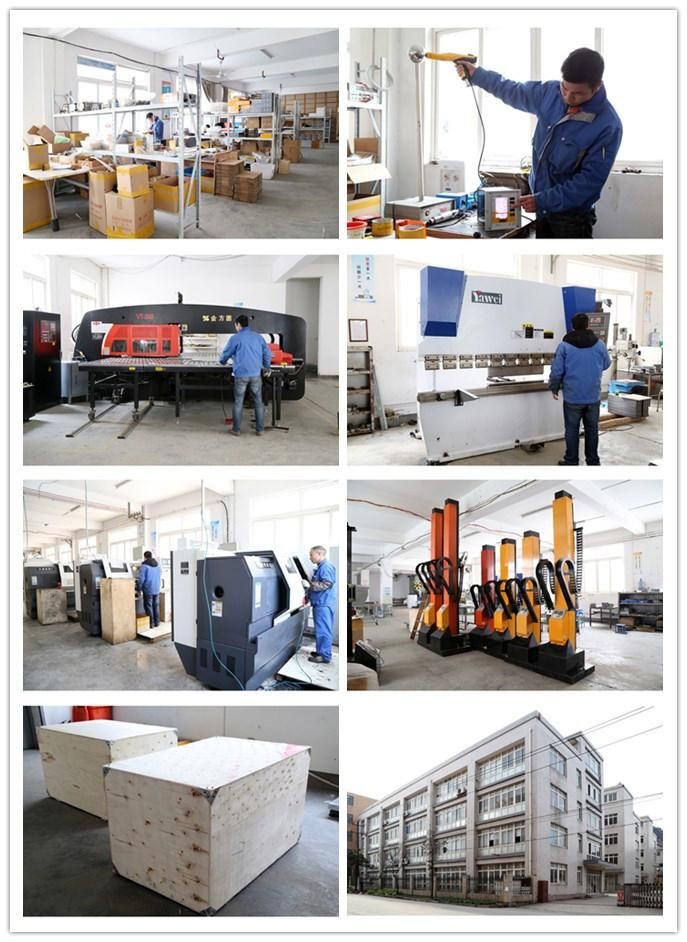

FEIFU is a leading company in China in the electrostatic powder coating systems industry. We are an innovator of powder coating equipment, and export into more than 90 Countries including the US, Mexico, Peru, Colombia, Russia, Poland, UK, Germany, Vietnam, Thailand, Korea, Malaysia, Egypt, Morocco along with many others.
