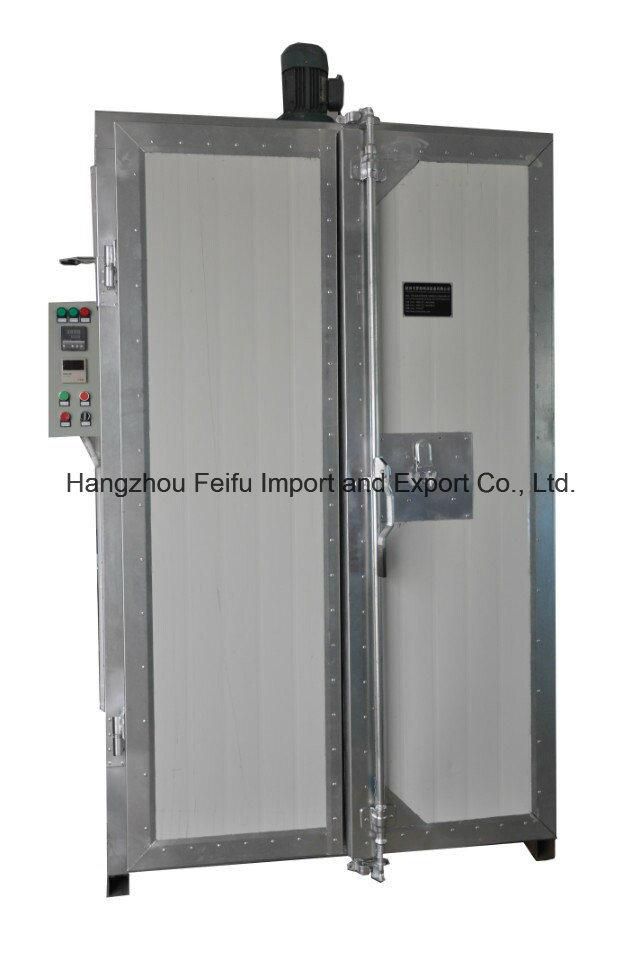

Batch System Box Oven with electric Tube
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service:12 Moths
- Warranty:12 Moths
- Type:Electric Powder Coating Ovens
- Coating:Powder Coating
- Substrate:Steel
- Certification:CE, ISO
Base Info
- Model NO.:FF-1118
- Condition:New
- Model No:FF1118
- Heating Source:Electric
- Work Size:1000*1000*1800mm
- Voltage:110V,220V,380V as Your Replace
- Weight:200kg
- Door Type:Double Door
- Air Circulation:Forced
- Temperature Max:250degree
- Homogeneity:< 3degree If 185degree
- Warm-up Time:15 Min. (180-200degree)
- Transport Package:Wood Case
- Specification:L*W*H
- Trademark:FF
- Origin:Zhejiang
- HS Code:842499990
- Production Capacity:100sets,Month
Description
Model
FF-1118

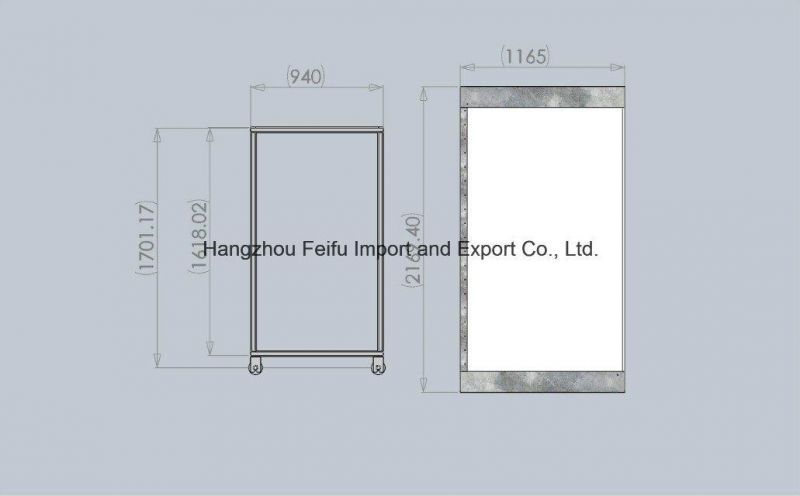

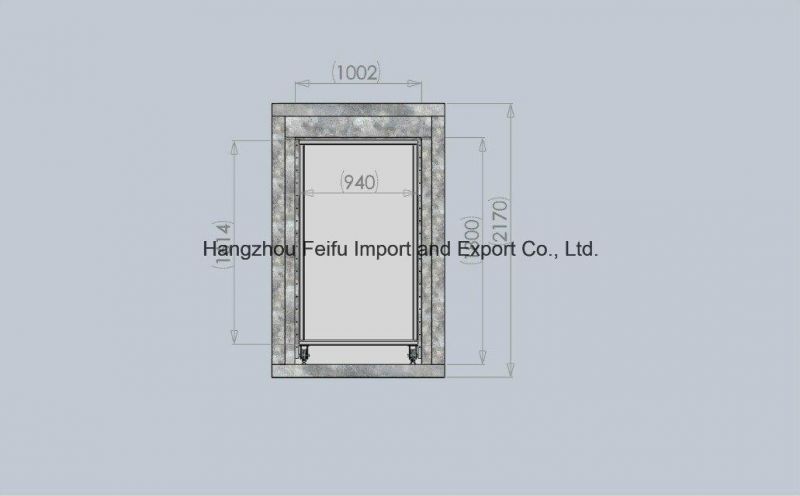

Worksize dimensions
1000width x 1800 height x 1000 depth
Overall dimensions
1165 width x 2170 height x 11650 depth
Power supply
Electric/ 9kw
Voltage/Frequency
380V/220v(50-60hz)
Warm-up time
15-30 min. (180° C)
Temperature stability
< ± 3-5°C
Temperature max.
250° C
Ventilation performance
805-1677m3/h
Motor power
0.75kw
Circulation/ Air flow
Vertical ,Variable through holes on the walls
Transportation
Trolley
Warranty
12 months

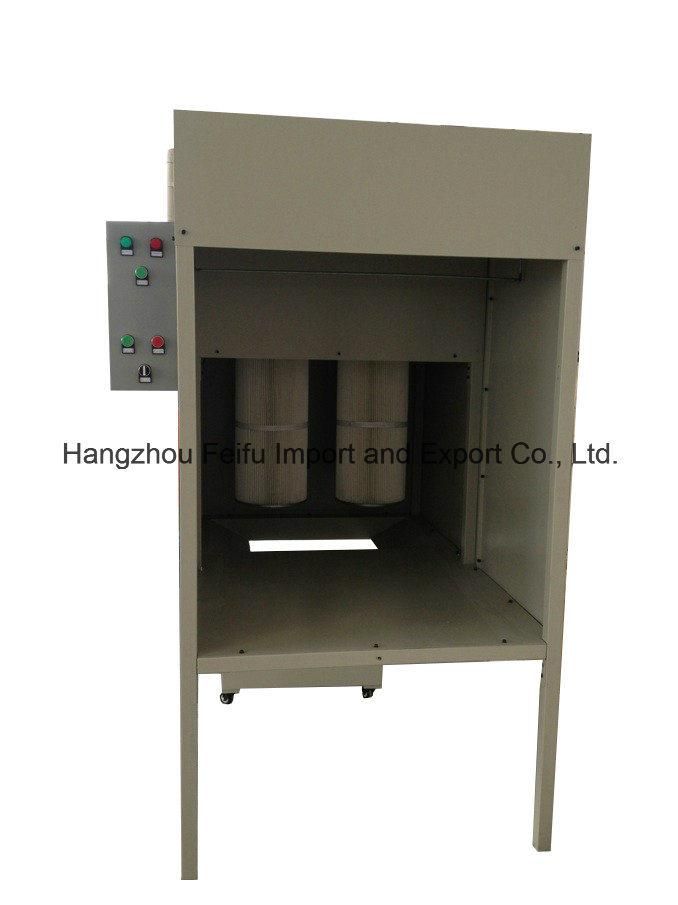

Match with Powder Spray Booth FF- 0811

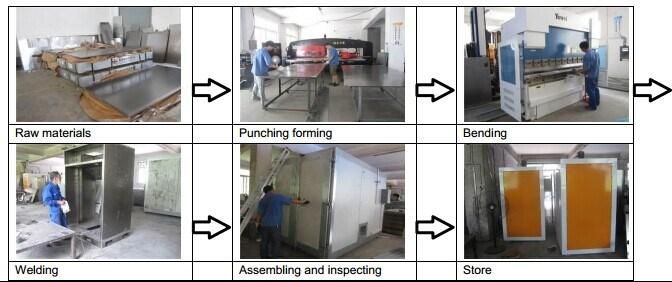

Process in factory to manufactory powder coating ovens
