Electrostatic Powder Spray Coating System (Colo-800D-TH)
Hangzhou Kafan Machinery & Equipment Co.,Ltd.- Type:Coating Spray Gun
- Coating:Powder Coating
- Substrate:Steel
- Certification:CE, ISO
- Condition:New
- Warranty:12month
Base Info
- Model NO.:Colo-800D-TH
- Quality:Great
- Transport Package:Carton
- Specification:Weight: 20kg
- Trademark:COLO
- Origin:China
- Production Capacity:300sets,Month
Description
Basic Info.
Model NO. Colo-800D-TH Quality Great Transport Package Carton Specification Weight: 20kg Trademark COLO Origin China Production Capacity 300sets/MonthProduct Description

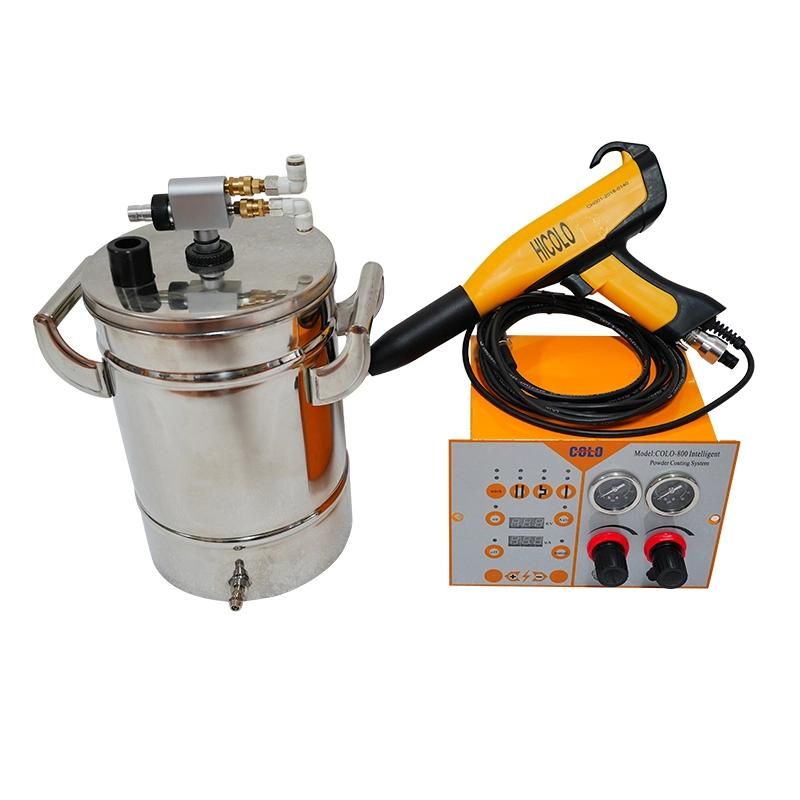

Electrostatic Powder Coating Spray Gun Machine With Samll HopperCOLO-800D-TH model is suitable for small lab powder coating jobs.800 control unit features up four characters.Controller has one-touch intelligent operation button,has 3 preset intelligent mode : falt coating,corner coating,recoating mode.The model not only for fast value setting, but also can have a efficient and excellent coating perfomance .Durable with long life time,no problem appears for many years, these real feedback coms from our customers.
Features
Good price, great coating effects and quality high but price low!
1. controller has one-touch intelligent operation button
2. High quality Colo-07 powder gun
3. 20*30 0r 40cm powder hopper
4. Easy clean gun and hopper
Afull set include:
Control unit
powder gun
powder cup
and necessary parts(air house,powder house,spray noozles,filter unit etc)
Technical Data:
Electrical data
Power range 220V
Frequency 50HZ
Temperature range in use -10 ºC+50 ºC

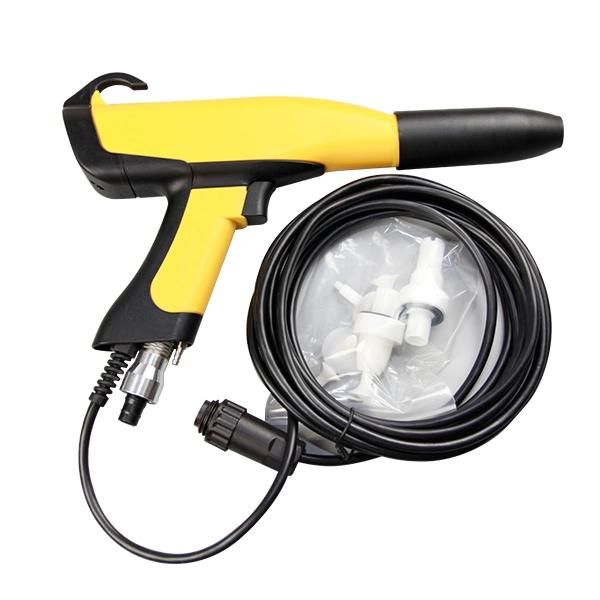

Powder Gun
Gun weight: ......... 500G
Rated output voltage ...… 24VDC
Input voltage ......… - 200kv
Maximum output current ...… 180Ua(max)
Maximum output voltage...... 0-100KV ( adjustable)
Maximum powder injection :...… 600g/min
Polarity ......... negative (-)
Pneumatic data
Maximum input-air pressure ........ 10kg/cm
Optimum input-air pressure..... 6kg/cm
Minimum input-air pressure ... 4kg/cm
Maximum water vapor content or compressed air ….. 1.4g/N m3
Maximum oil vapor content of compressed air ..... 0.1ppm
Maximum compressed-air consumption...… 13.2 m3/h
Packing&Delivery
Packing: usually by wooden case and carton as need.
Delivery:small order like 10sets usually with 3days after get the payment.
If you are interested in our products,please feel free to contact us .
