• Model NO.：COLO-500SART
• Quality：100% Promise
• Transport Package：Carton
• Specification：manul hopper type
• Trademark：Colo
• Origin：China
• Production Capacity：5000pieces,Month

Basic Info.

Model NO. COLO-500SART Quality 100% Promise Transport Package Carton Specification manul hopper type Trademark Colo Origin China Production Capacity 5000pieces/Month

Product Description

Electrostatic  powder coating machine
Pintura En Polvo
COLO Powder Coating Systems is a top supplier of powder coating machine and powder coating equipment including automated equipment, spray booths and spare parts for itw gema, wagner, nodrson, kci famous brand in China.
The process of the coating is like this: The powder is fluidized in the powder hopper. The injectors transport the powder through the hoses to the guns. The guns spray a powder/air mixture onto the workpieces.

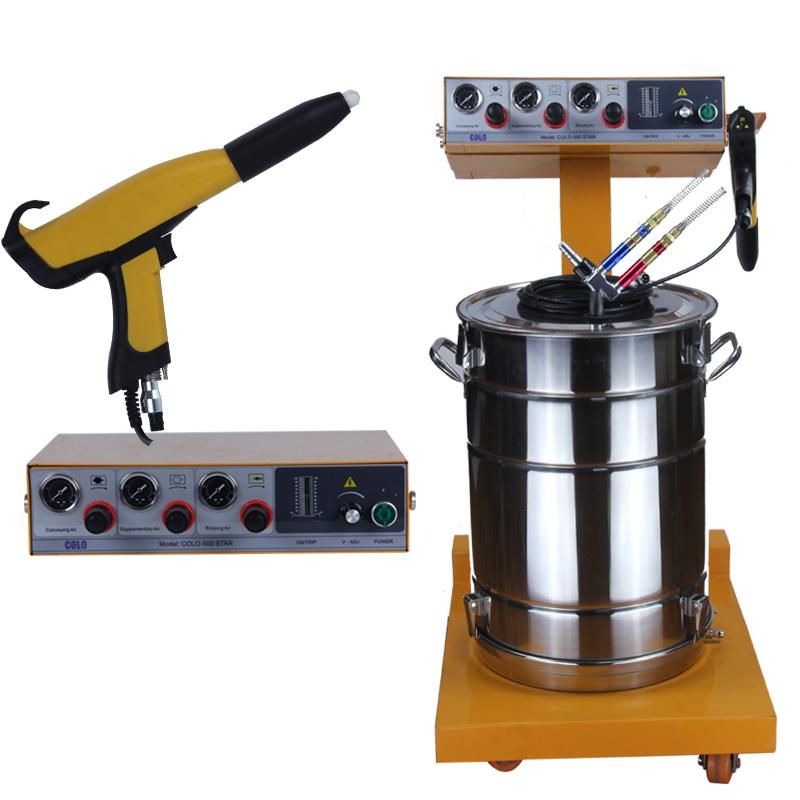

This quick connector powder coating machine COLO-500Star
All connectors using quick coupling models
Suitable for heavy duty work
Manual powder coating equipment

Technical Data
Power
range                                       220V
Frequency                                     50/60HZ
Temperature range in use                      -10 ºC+50 ºC
Powder Gun
Gun weight:    .........                    500G
Rated output voltage ...…                      24VDC
Input voltage     ......…                       - 200kv
Maximum output current  ...…                   180Ua(max)
Maximum output voltage......                   0-100KV (  adjustable)
Maximum powder injection :...…                    600g/min
Polarity .........                                negative (-)
Pneumatic technical spec
Maximum input-air pressure ........                 8kg/cm
Optimum input-air pressure.....                        6kg/cm
Minimum input-air pressure   ...                      4kg/cm
Maximum water vapor content or compressed air …..      1.4g/N m3
Maximum oil vapor content of compressed air   .....     0.1ppm
Maximum cimpressed-air consumption...…            13.2 m3/h



All spare parts for gun or control unit are available.
Configutation
1.Control unit
2.Manual powder gun
3.Trolley
4.Powder fluidizing Hopper
5.Necessary spare parts(injector,powder house,filter unit etc)

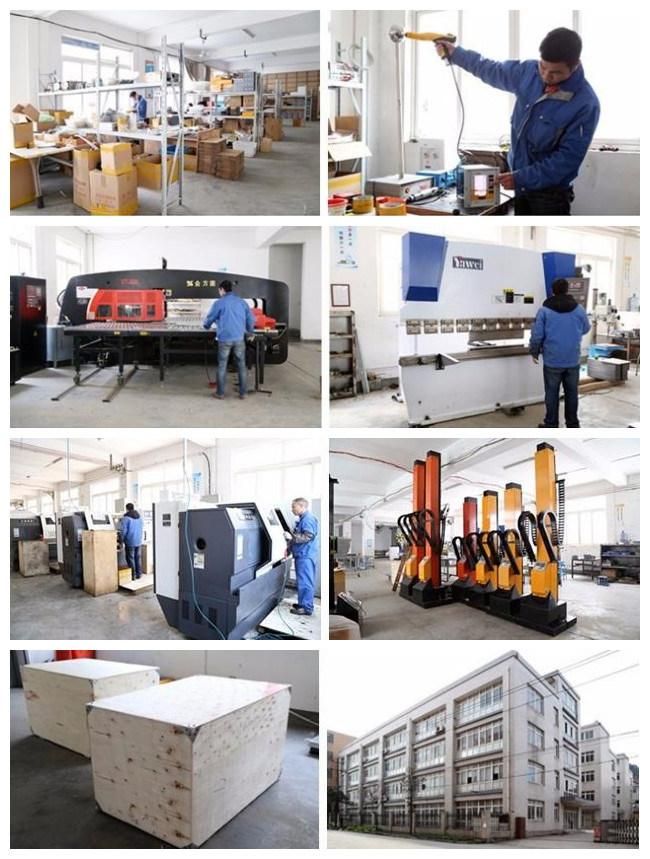

Factory

We sincere welcome you to visit our factory,and also wish to establish a long-term business relations with you.
